994138 - Gravely Pro-Stance 60" Stand-On Mower, Kawasaki FX (SN: 000101 & Above) Fuel System - Non-CARB Parts Diagram

Pro-Stance 60" Stand-On Mower, Kawasaki FX

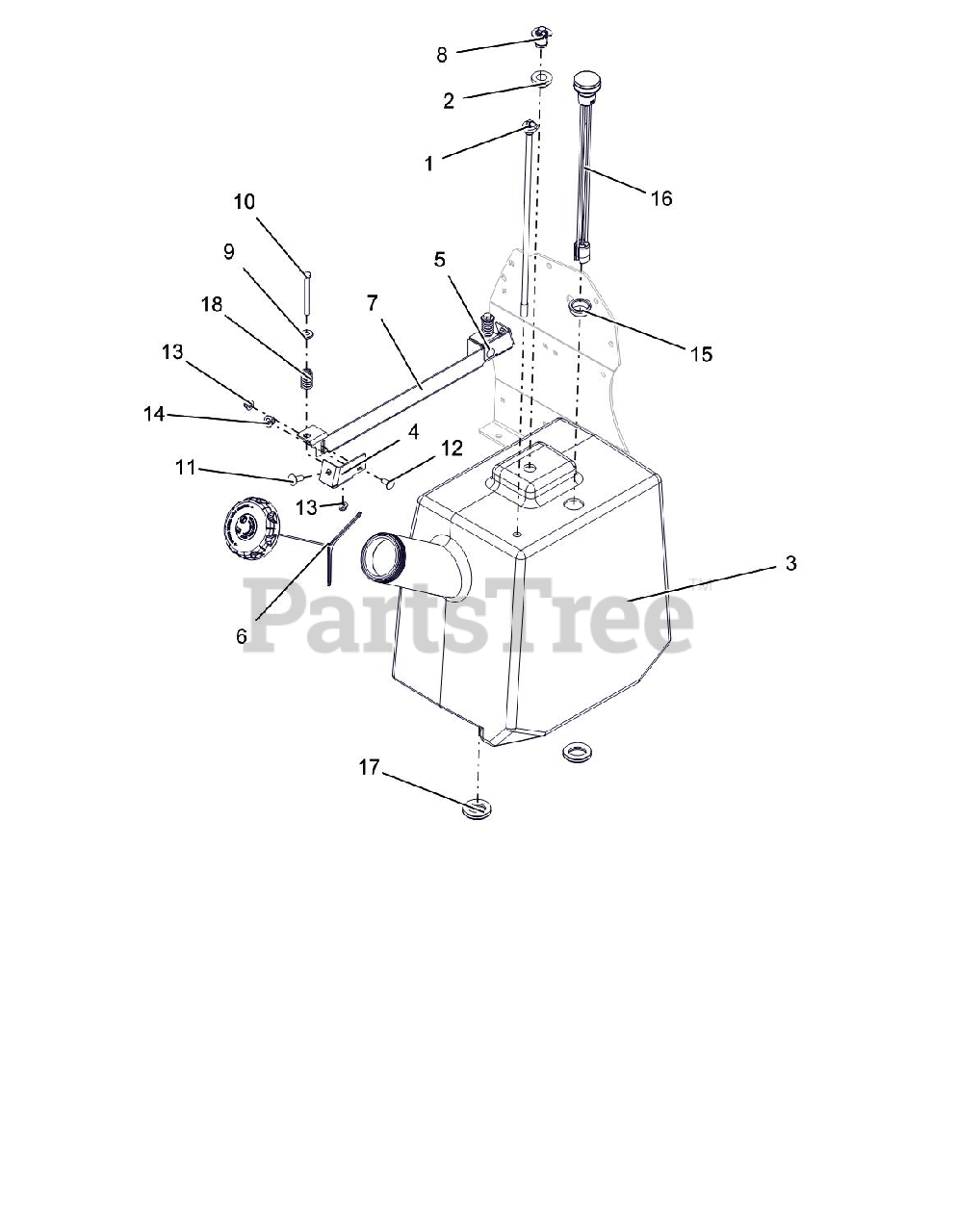

Fuel System - Non-CARB Parts Diagram

  • Title

1

Gravely 04446900

ASM, FUEL LINE,PRO-STANCE

$

$

Not available

2

Gravely 04082700

GROMMET, REMOTE VENT NITRILE

$3.49

$

In Stock, Qty 11

0

3

Gravely 04358301

TANK,EPA FUEL,PRO-STANCE

$387.99

$

Usually ships in 4-12 days

0

4

Gravely 04503551

WLDMT, TANK HOLDDOWN MOUNT-RH (BLACK)

$5.99

$

Usually ships in 4-12 days

0

5

Gravely 04503651

WLDMT, TANK HOLDDOWN-LH (BLACK)

$4.99

$

Usually ships in 4-12 days

0

6

Gravely 04558000

CAP, FUEL VENT-IN AUTOLOCK
(Superseded to 09190300)

$33.99

$

In Stock, Qty 20+

0

7

Gravely 04745551

HOLDDOWN, FUEL TANK

$22.99

$

Usually ships in 4-12 days

0

8

Gravely 04815400

VALVE, 2-WAY

$19.99

$

In Stock, Qty 8

0

9

Gravely 05514800

BSHG, FLG .32X.500.344X.880

$2.49

$

In Stock, only 1 left!

0

10

Gravely 05971700

BLT-HEX .31-18X3.25 GR5 YWZC

$

$

Not available

11

Gravely 06212000

BLT-RDHDSHSQNK.38-16X1.0 G5YZ
(Superseded to 06200235)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 06215700

BLT-RDHDSQNK .31-18X.75 G5 YWZC
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

13

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 07500221

GROMMET, FUEL GAUGE

$5.99

$

In Stock, only 1 left!

0

16

Gravely 07500311

GAGE, REMOTE FUEL SEALED 15"

$

$

Not available

17

Gravely 07536800

GROMMET, 1.25"

$12.99

$

Usually ships in 4-12 days

0

18

Gravely 08335700

SPRG, COMPRESSION

$9.49

$

In Stock, only 1 left!

0
