994137 - Gravely Pro-Stance 60" Stand-On Mower, Kawasaki FX (SN: 000101 - 009999) Anti-Scalp Wheels And Baffles 60" Parts Diagram

Pro-Stance 60" Stand-On Mower, Kawasaki FX

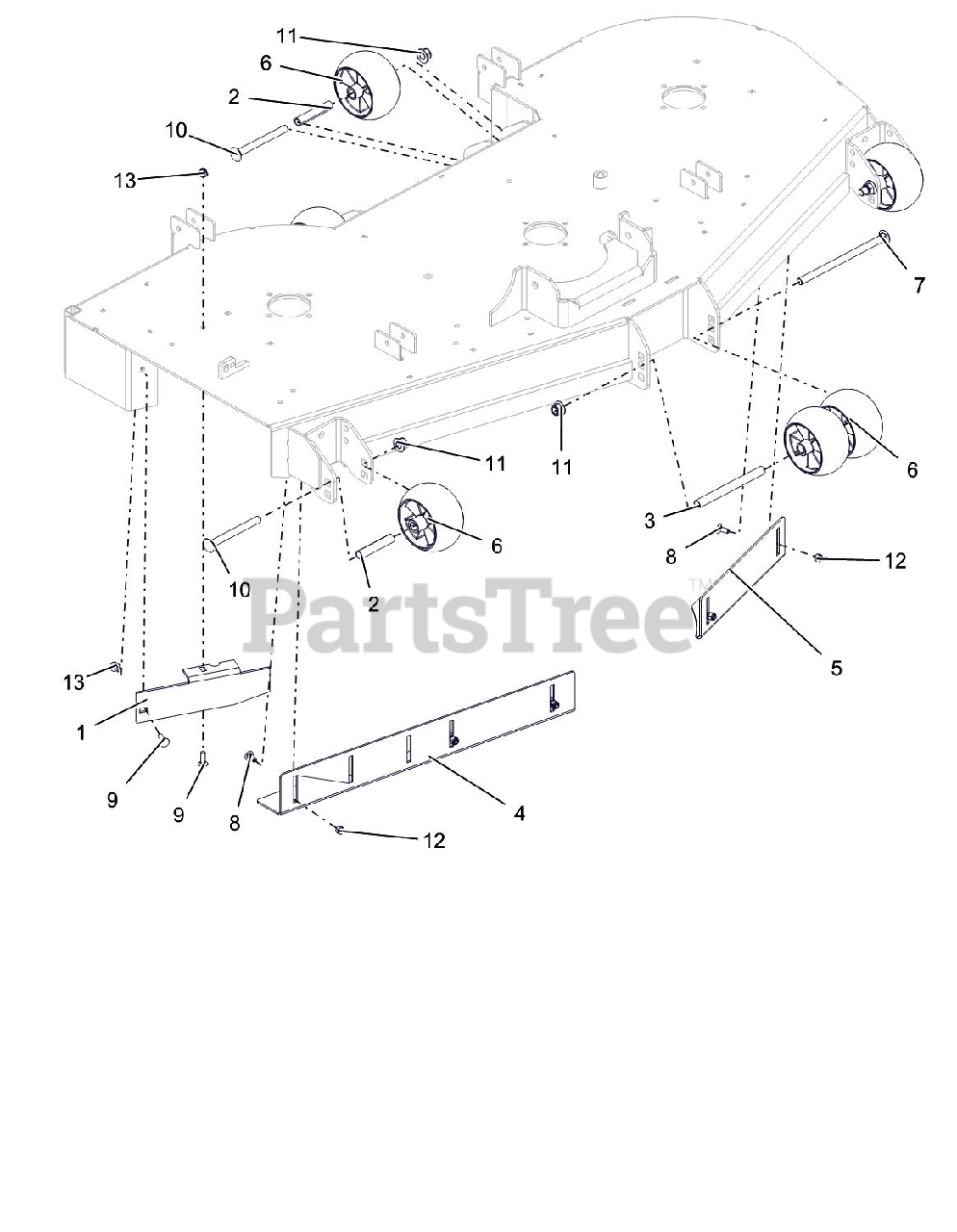

Anti-Scalp Wheels And Baffles 60" Parts Diagram

  • Title

1

Gravely 00374153

60" DISCHARGE BAFFLE - RED

$28.99

$

In Stock, only 1 left!

0

2

Gravely 00473767

.510X.625X3.35 SPACER-LOW FILM
(Superseded to 00473700)

$18.99

$

In Stock, Qty 20+

0

3

Gravely 00473867

.510X.625X6.50 SPACER-LOW FILM
(Superseded to 00473800)

$21.99

$

In Stock, Qty 20+

0

4

Gravely 00952551

60" RH VACUUM BAFFLE - BLK
(Superseded to 05251951)

$51.99

$

In Stock, only 1 left!

0

5

Gravely 00952651

60" LH VACUUM BAFFLE - BLK
(Superseded to 05252051)

$44.99

$

Usually ships in 4-12 days

0

6

Gravely 03905900

ANTI-SCALP WHEEL - 5X3 CTR

$11.99

$

In Stock, Qty 20+

0

7

Gravely 06206400

BLT-RDHDSQNK .50-13X8.50 G5YZ
(Superseded to 06200321)

$6.99

$

In Stock, Qty 20+

0

8

Gravely 06215700

BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

9

Gravely 06216100

BLT-RDHDSQNK .31-18X1.00 G5YZ
(Superseded to 06200231)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 06225900

BLT-RDHDSQNK .50-13X5.00 GR5YZ
(Superseded to 06200505)

$5.99

$

Usually ships in 4-12 days

0

11

Gravely 06500010

NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 06530200

NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0
