994135 - Gravely Pro-Stance 52" Stand-On Mower, Kohler ZT (SN: 000101 & Above) Idlers And Sheaves - 52" Parts Diagram

Pro-Stance 52" Stand-On Mower, Kohler ZT

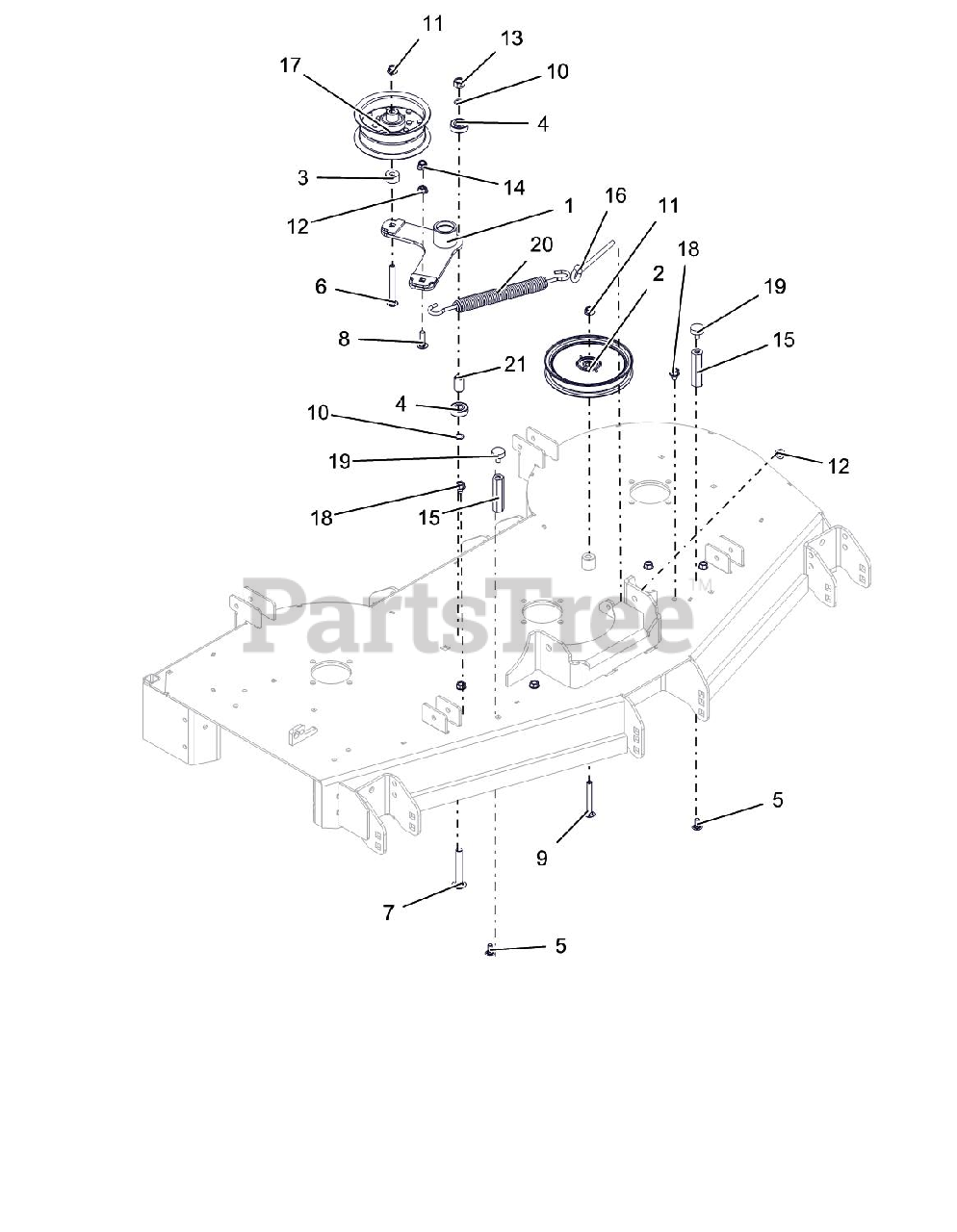

Idlers And Sheaves - 52" Parts Diagram

  • Title
1

Gravely 04766051

WLDMT, IDLER ARM

$80.99

$

In Stock, only 1 left!

0

2

Gravely 07343300

IDLER, FLAT - 6.00" X .75"

$79.99

$

In Stock, Qty 10

0

3

Gravely 03035100

SPACER .390X1.000X.562

$9.49

$

In Stock, only 1 left!

0

4

Gravely 05408000

BRG-BALL .500X1.375X.44

$5.99

$

In Stock, Qty 20+

0

5

Gravely 06200002

BLT, RDHDSQNK .31-18X.75 LOCTITE
(Superseded to 06200425)

$3.99

$

In Stock, only 3 left!

0

6

Gravely 06200125

BLT-RHDSSQNK .38-16X3.50 G5YZ
(Superseded to 06200238)

$3.99

$

In Stock, Qty 20+

0

7

Gravely 06200216

BLT-RDHDSQSHNK .50-13X3.25 YWZC
(Superseded to 06200339)

$3.99

$

In Stock, Qty 20+

0

8

Gravely 06222200

BLT-RHDSSQNK .38-16X1.25 G5YZ
(Superseded to 06200236)

$2.49

$

In Stock, Qty 20+

0

9

Gravely 06228100

BLT-RDHDSQNK .38-16X3.00 G5 YWZC
(Superseded to 06200418)

$3.99

$

In Stock, only 1 left!

0

10

Gravely 06400015

WASHER-FLAT-STL, .500 X .750 X .020

$1.49

$

In Stock, Qty 20+

0

11

Gravely 06534800

NUT, LK-CTR-FLG .38-16 YWZC
(Superseded to 06500901)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 06534900

@NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 06536300

NUT-LK-CTR .50-13 YWZC
(Superseded to 06500827)

$3.99

$

In Stock, only 2 left!

0

14

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 07000027

NUT, COUPLING .31-18 X 3.00

$22.99

$

In Stock, only 3 left!

0

16

Gravely 07001640

BOLT, EYE .38-16X6.00 .62 DIA

$16.99

$

Usually ships in 4-12 days

0

17

Gravely 07300532

PULLEY, FLAT 5.00X2.36X.375

$68.99

$

In Stock, Qty 13

0

18

Gravely 07412900

SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 07533600

BUMPER, RUBBER

$11.99

$

In Stock, only 1 left!

0

20

Gravely 08300505

SPRG, EXTENSION - SWIVEL

$25.99

$

In Stock, Qty 20+

0

21

Gravely 09357700

SPACER, .510 X .750 X 1.148

$4.99

$

In Stock, Qty 8

0
