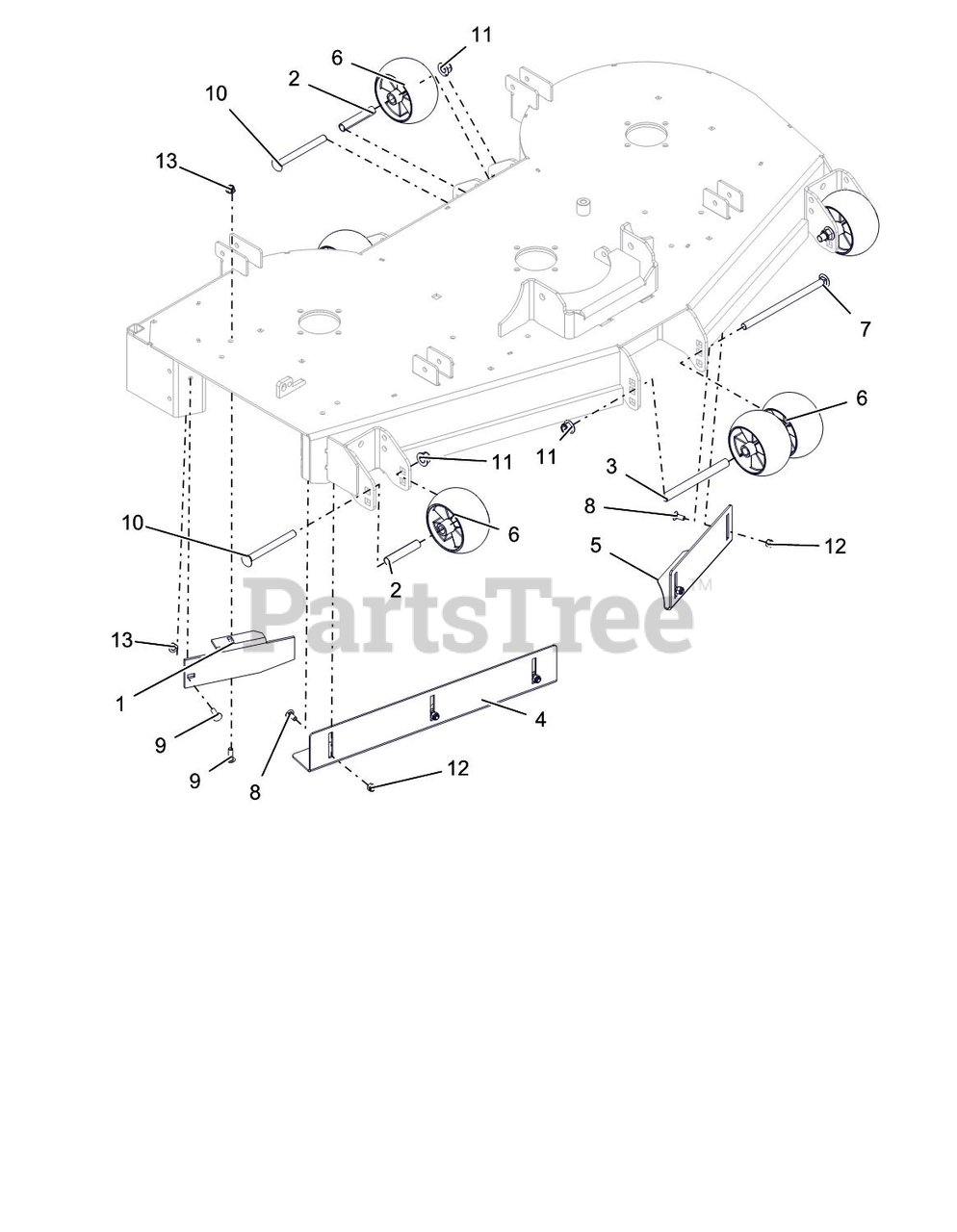

994135 - Gravely Pro-Stance 52" Stand-On Mower, Kohler ZT (SN: 000101 & Above) Anti-Scalp Wheels And Baffles - 52" Parts Diagram

Pro-Stance 52" Stand-On Mower, Kohler ZT

Anti-Scalp Wheels And Baffles - 52" Parts Diagram

  • Title
1

Gravely 00440853

BAFFLE, 52" DISCHARGE-RED

$37.99

$

Usually ships in 4-12 days

0

2

Gravely 00473767

SPACER, .510X.625X3.35-BLACK
(Superseded to 00473700)

$18.99

$

In Stock, Qty 20+

0

3

Gravely 00473867

SPACER, .510 X .625 X 6.50
(Superseded to 00473800)

$21.99

$

In Stock, Qty 20+

0

4

Gravely 00952851

BAFFLE, 52" RH VACUUM-BLACK
(Superseded to 05251751)

$43.99

$

Usually ships in 4-12 days

0

5

Gravely 00952951

BAFFLE, 52" LH VACUUM-BLACK
(Superseded to 05251851)

$36.99

$

In Stock, only 1 left!

0

6

Gravely 03905900

ANTI-SCALP WHEEL - 5X3 CTR

$11.99

$

In Stock, Qty 20+

0

7

Gravely 06206400

BLT-RDHDSQNK .50-13X8.50 Y
(Superseded to 06200321)

$6.99

$

In Stock, Qty 20+

0

8

Gravely 06215700

BLT-RDHDSQNK .31-18X.75 G5 YWZC
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

9

Gravely 06216100

BLT-RDHDSQSHNK .31-18X1.00 G5 Y
(Superseded to 06200231)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 06225900

BLT-RDHDSQNK .50-13X5.00 G5 YWZC
(Superseded to 06200505)

$5.99

$

Usually ships in 4-12 days

0

11

Gravely 06500010

NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 06530200

NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0
