994134 - Gravely Pro-Stance 52" Stand-On Mower, Kohler ZT (SN: 020000 & Above) Engine - Kohler ZT730 Parts Diagram

Pro-Stance 52" Stand-On Mower, Kohler ZT

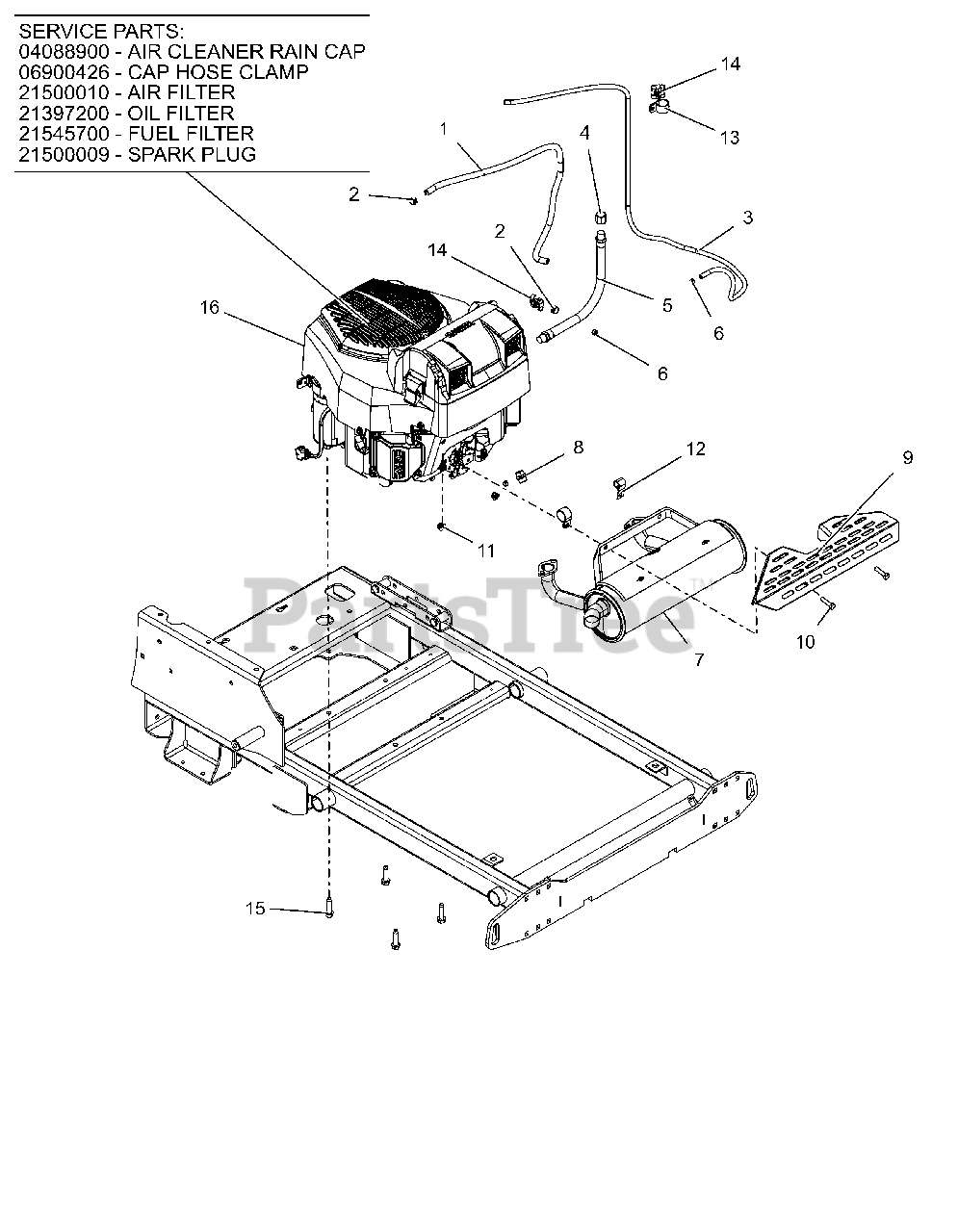

Engine - Kohler ZT730 Parts Diagram

  • Title
1

Gravely 03278100

HOSE, .25 LOW-PERM BULK GAS

$1.49

$

In Stock, Qty 20+

0

2

Gravely 03278800

CLAMP, FUEL LINE

$1.49

$

In Stock, Qty 20+

0

3

Gravely 03375900

HOSE, .188 LOW-PERM BULK GAS

$0.99

$

Usually ships in 4-12 days

0

4

Gravely 03873200

PIPE CAP 3/8 NPT FEMALE

$12.99

$

Usually ships in 4-12 days

0

5

Gravely 04058500

HOSE,HYD .38-14-0K M6N0-M6N0
(Superseded to 05155100)

$20.99

$

In Stock, only 1 left!

0

6

Gravely 04097700

CLAMP-HOSE, SPRING .188

$

$

Not available

7

Gravely 04375100

MUFFLER, KOHLER EFI PRO-STANCE

$200.99

$

Usually ships in 4-12 days

0

8

Gravely 04786500

PLUG, EXHAUST

$11.99

$

Usually ships in 4-12 days

0

9

Gravely 04807651

GUARD, MUFFLER

$70.99

$

Usually ships in 4-12 days

0

10

Gravely 05947500

@BLT-HEX .31-18X1.25 GR5 YWZC
(Superseded to 05901803)

$2.49

$

In Stock, Qty 12

0

11

Gravely 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

12

$2.49

$

Usually ships in 4-12 days

0

13

Gravely 06917900

CLAMP, COUSHIONED STEEL REV

$14.99

$

Usually ships in 4-12 days

0

14

Gravely 07001712

CLIP, T, .38-.50

$

$

Not available

15

Gravely 07417400

@SCR-TAP .38-16X1.50 HWH TR YZ
(Superseded to 07400203)

$3.99

$

Usually ships in 4-12 days

0

16

Gravely 08201042

ENGINE, KOHLER ZT730

$

$

Not available

16

Gravely 04088900

CAP, KAW 11065-7025

Note: SERVICE PART

$59.99

$

Usually ships in 4-12 days

0

16

Gravely 06900426

CLAMP, HOSE #36 SS 1.813-2.75

Note: SERVICE PART

$

$

Not available

16

Gravely 21500010

AIR CLEANER, KOHLER CONFIDANT

Note: SERVICE PART

$28.99

$

In Stock, only 1 left!

0

16

Gravely 21397200

FILTER, OIL - KOH CV20
(Superseded to 20715100)

Note: SERVICE PART

$18.99

$

In Stock, only 4 left!

0

16

Gravely 21545700

FILTER-FUEL KOHLER COURAGE PRO
(Superseded to 21539500)

Note: SERVICE PART

$12.99

$

In Stock, Qty 20+

0

16

Gravely 21500009

PLUG, SPARK KOHLER

Note: SERVICE PART

$10.99

$

Usually ships in 4-12 days

0
