994134 - Gravely Pro-Stance 52" Stand-On Mower, Kohler ZT (SN: 020000 & Above) Belt Covers and Chute Parts Diagram

Pro-Stance 52" Stand-On Mower, Kohler ZT

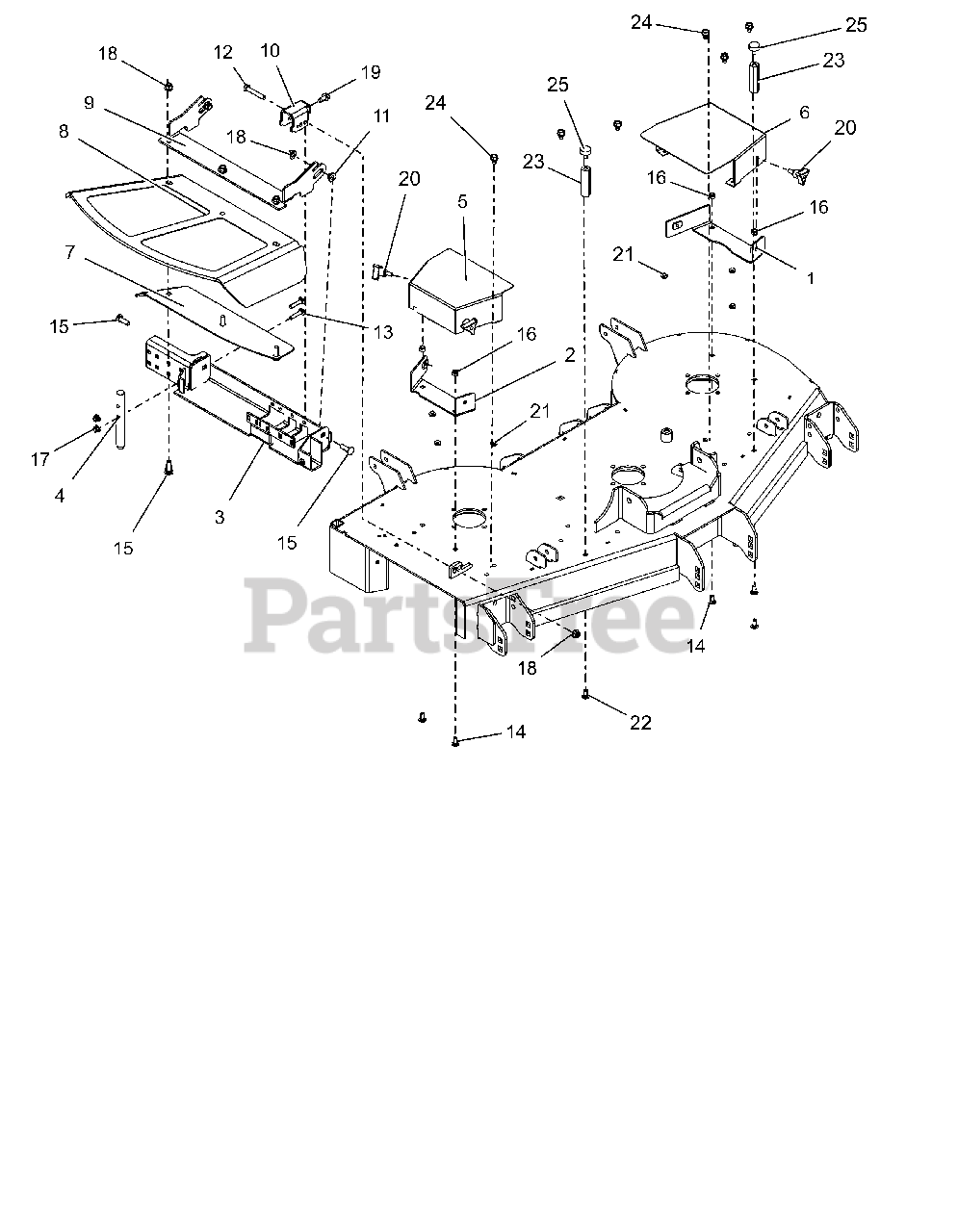

Belt Covers and Chute Parts Diagram

  • Title
1

Gravely 04792453

BRKT, LH BELT GUARD MOUNTING

$

$

Not available

2

Gravely 04792553

BRKT, RH BELT GUARD MOUNTING

$58.99

$

Usually ships in 4-12 days

0

3

Gravely 04984053

WLDMT, GRASS CATCHER

$136.99

$

Usually ships in 4-12 days

0

4

Gravely 03830600

PIN, DISCHARGE CHUTE X-DRILLED

$30.99

$

Usually ships in 4-12 days

0

5

Gravely 04788353

GUARD, RH DECK BELT

$40.99

$

In Stock, only 2 left!

0

6

Gravely 04788453

GUARD, LH DECK BELT

$42.99

$

In Stock, only 2 left!

0

7

Gravely 04873751

48-60 DISCH CHUTE CLMP PLT-BLK

$31.99

$

Usually ships in 4-12 days

0

8

Gravely 04881200

CHUTE,48-60" FRMD RUBBER DISCH

$75.99

$

In Stock, Qty 9

0

9

Gravely 04984353

BRKT, 48-60" CHUTE MTG

$51.99

$

Usually ships in 4-12 days

0

10

Gravely 04985153

BRKT, DISCH. CHUTE MTG

$

$

Not available

11

Gravely 05500435

BSHG-FLG .385X.500X.875X.406

$2.49

$

In Stock, Qty 20+

0

12

Gravely 05962900

@BLT-HEX .38-16X2.25 GR5 YWZC
(Superseded to 05901640)

$3.99

$

In Stock, Qty 20+

0

13

Gravely 06212100

@BLT-RDHDSQNK .31-18X1.50 G5YZ
(Superseded to 06200233)

$1.49

$

In Stock, Qty 19

0

14

Gravely 06215700

@BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

15

Gravely 06222200

@BLT-RHDSSQNK .38-16X1.25 G5YZ
(Superseded to 06200236)

$2.49

$

In Stock, Qty 20+

0

16

Gravely 06530200

@NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

17

Gravely 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 07415400

@SCR-TAP .38-16X.75 HWH TR YWZ
(Superseded to 07400129)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 07500008

KNOB,WING STUD 5/16-18 X .75

$5.99

$

In Stock, Qty 20+

0

21

Gravely 07503100

BUMPER GROMMET

$3.49

$

In Stock, only 3 left!

0

22

Gravely 06200002

BLT,RDHDSQNK .31-18X.75 LOCTIT
(Superseded to 06200425)

$3.99

$

In Stock, only 3 left!

0

23

Gravely 07000027

NUT, COUPLING .31-18 X 3.00

$22.99

$

In Stock, only 3 left!

0

24

Gravely 07412900

@SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

$1.49

$

In Stock, Qty 20+

0

25

Gravely 07533600

BUMPER, RUBBER

$11.99

$

In Stock, only 1 left!

0
