994134 - Gravely Pro-Stance 52" Stand-On Mower, Kohler ZT (SN: 010000 - 019999) Fuel System - Non-CARB Parts Diagram

Pro-Stance 52" Stand-On Mower, Kohler ZT

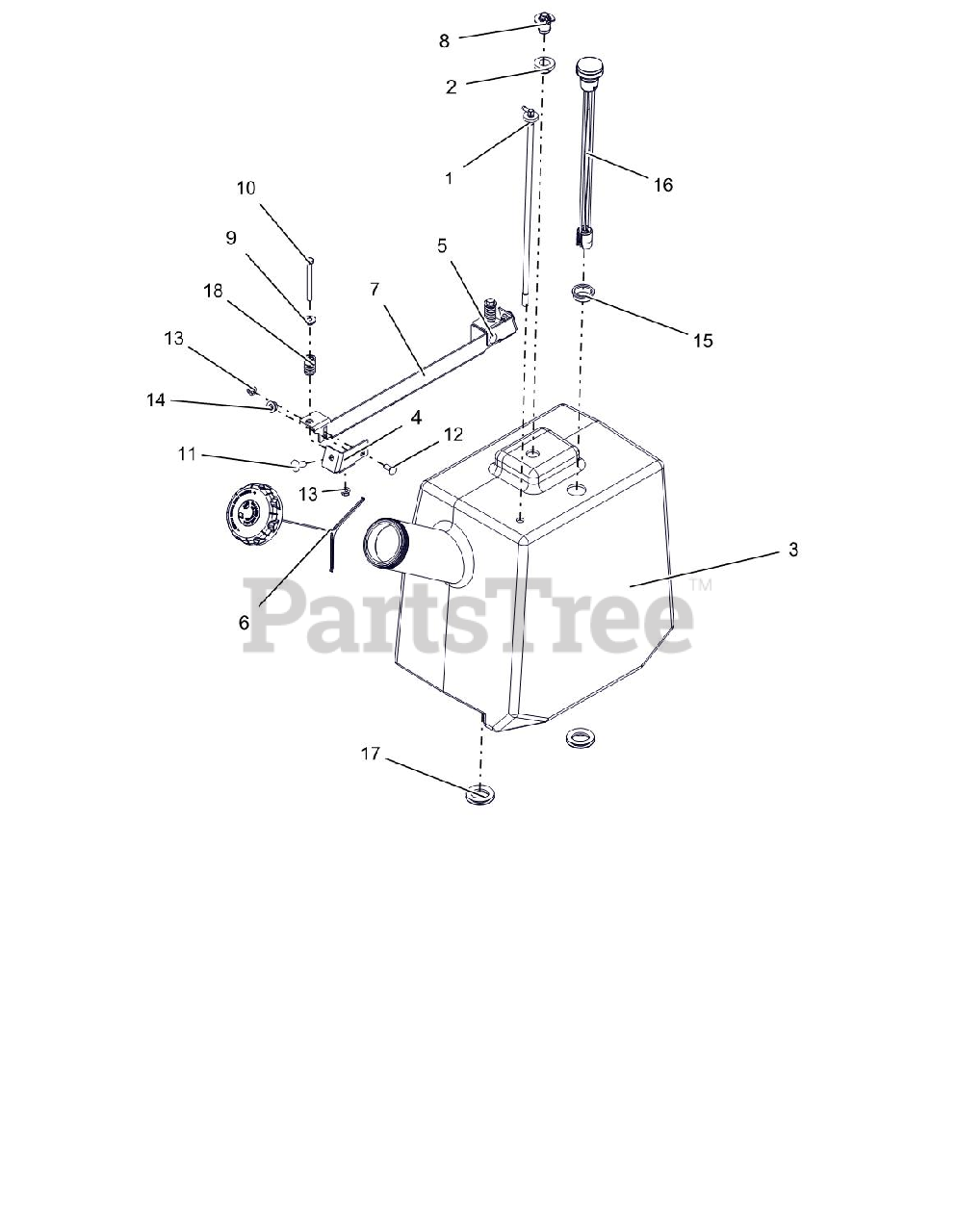

Fuel System - Non-CARB Parts Diagram

  • Title

1

Gravely 04446900

ASS'Y, PROSTANCE FUEL PICK-UP

$

$

Not available

2

Gravely 04082700

GROMMET, REMOTE VENT NITRILE

$3.49

$

In Stock, Qty 9

0

3

Gravely 04358301

TANK, PROSTANCE FUEL

$387.99

$

Usually ships in 4-12 days

0

4

Gravely 04503551

MOUNT, FUEL TANK HOLD DOWN-RH

$5.99

$

Usually ships in 4-12 days

0

5

Gravely 04503651

MOUNT, FUEL TANK HOLD DOWN-LH

$4.99

$

Usually ships in 4-12 days

0

6

Gravely 04558000

CAP, FUEL VENTIN AUTOLOCK
(Superseded to 09190300)

$33.99

$

In Stock, Qty 20+

0

7

Gravely 04745551

HOLDDOWN, FUEL TANK

$22.99

$

Usually ships in 4-12 days

0

8

Gravely 04815400

VALVE, 2-WAY

$19.99

$

In Stock, Qty 8

0

9

Gravely 05514800

BSHG-FLG .32X.500X.344X.880

$2.49

$

In Stock, only 3 left!

0

10

Gravely 05971700

@BLT-HEX .31-18X3.25 GR5 YWZC

$

$

Not available

11

Gravely 06212000

@BLT-RDHDSHSQNK.38-16X1.0 G5YZ
(Superseded to 06200235)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 06215700

@BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

13

Gravely 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 07500221

GROMMET, FUEL GAUGE

$5.99

$

In Stock, only 1 left!

0

16

Gravely 07500311

GAUGE, REMOTE FUEL SEALED 15"

$

$

Not available

17

Gravely 07536800

GROMMET 1.25ID X 1.5OD

$12.99

$

Usually ships in 4-12 days

0

18

Gravely 08335700

SG-COMP .125X.781X1.250

$9.49

$

In Stock, only 1 left!

0
