994132 - Gravely Pro-Stance 48" Stand-On Mower, Kawasaki FX (SN: 020000 & Above) Deck Lift - Right Hand Parts Diagram

Pro-Stance 48" Stand-On Mower, Kawasaki FX

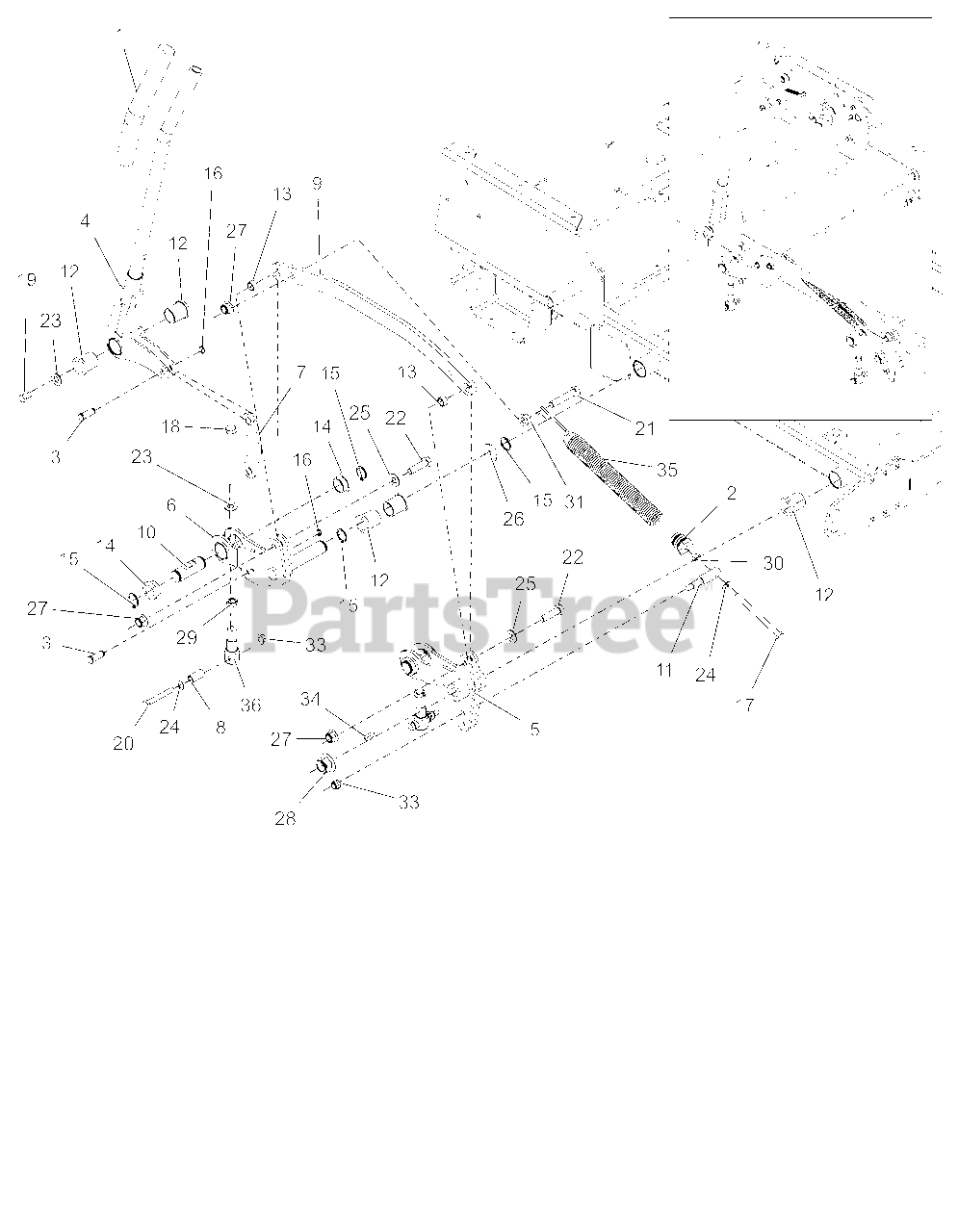

Deck Lift - Right Hand Parts Diagram

  • Title

1

Gravely 03929100

GRIP, HANDLEBAR 1.00X1.38X11.3

$14.99

$

In Stock, only 1 left!

0

2

Gravely 04374200

PLUG, SPRING

$77.99

$

Usually ships in 4-12 days

0

3

Gravely 04536700

PIN, CLEVIS .500 SNAP RING

$5.99

$

Usually ships in 4-12 days

0

4

Gravely 04737953

HAND LEVER - PROPANE

$

$

Not available

5

Gravely 04885467

WLDMT, PSTANCE TAPERED HUB

$

$

Not available

6

Gravely 04885667

WLDMT, PSTANCE DECK ARM

$

$

Not available

7

Gravely 04893453

WLDMT, DECK LIFT LINK

$66.99

$

Usually ships in 4-12 days

0

8

Gravely 04895200

SPACER, DECK LEVELING

$2.49

$

In Stock, Qty 20+

0

9

Gravely 04975251

ARM, DECK LIFT

$

$

Not available

10

Gravely 04984500

PIN, DECK LIFT

$28.99

$

In Stock, only 2 left!

0

11

Gravely 04989600

TRUNION, DECK LIFT

$39.99

$

Usually ships in 4-12 days

0

12

Gravely 05500934

BSHG-FLG 1.00X1.25X1.50X1.50

$6.99

$

In Stock, Qty 20+

0

13

Gravely 05501301

BSHG-SLV .513 X .748 X .420

$12.99

$

In Stock, Qty 10

0

14

Gravely 05501307

BSHG,FLG 1.0 X 1.25 X 1.5 X .6

$11.99

$

In Stock, Qty 16

0

15

Gravely 05707300

RG-RTNG-EXT 1.00X.078

$2.99

$

In Stock, Qty 9

0

16

Gravely 05717100

RG-RTNG-EXT .500X.050 (SNAP)

$2.49

$

In Stock, Qty 8

0

17

Gravely 05901506

BLT-HEX .38-16X5.00 GR5 FTH YZ
(Superseded to 05901923)

$

$

Not available

18

Gravely 05901622

BOLT, 1/2-13 X 5.0 2.5 THREAD
(Superseded to 05901925)

$4.99

$

In Stock, only 4 left!

0

19

Gravely 05959400

@BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 05963000

BLT-HEX .38-16X2.75 GR8 YWZC
(Superseded to 05901813)

$1.49

$

In Stock, Qty 20+

0

21

Gravely 05966600

@BLT-HEX .50-13X2.50 GR5 YWZC
(Superseded to 05901712)

$3.99

$

In Stock, only 3 left!

0

22

Gravely 05970600

@BLT-HEX .50-13X1.75 GR5 YWZC
(Superseded to 05901939)

$3.99

$

In Stock, only 2 left!

0

23

Gravely 06400418

FLATWASHER 1/2 SAE HARD 15906
(Superseded to 06401116)

$1.49

$

In Stock, Qty 20+

0

24

Gravely 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

25

Gravely 06441900

@WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

26

Gravely 06443400

WSHR-FL-STL .380X1.50X.125YWZC
(Superseded to 06401106)

$3.49

$

In Stock, Qty 10

0

27

Gravely 06500010

@NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$1.49

$

In Stock, Qty 20+

0

28

Gravely 06500717

@NUT-LK-NYL-FLG .75-10 YWZC
(Superseded to 06500931)

$3.99

$

Usually ships in 4-12 days

0

29

Gravely 06529300

NUT-JAM .50-13 YWZC
(Superseded to 06500911)

$1.49

$

In Stock, Qty 20+

0

30

Gravely 06529400

@NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0

31

Gravely 06543300

NUT-SPNLK-FLG .50-13 YWZC
(Superseded to 06500928)

$3.99

$

Usually ships in 4-12 days

0

33

Gravely 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

34

Gravely 06608900

KEY-WDRF .25X1.00 HRD #15

$3.99

$

In Stock, Qty 18

0

35

Gravely 08300624

SPRING, DECK LIFT

$13.99

$

In Stock, only 1 left!

0

36

Gravely 05081400

LINK, DECK LIFT FORMED

$15.99

$

In Stock, Qty 10

0
