994132 - Gravely Pro-Stance 48" Stand-On Mower, Kawasaki FX (SN: 010000 - 019999) Idlers And Sheaves - 48" Parts Diagram

Pro-Stance 48" Stand-On Mower, Kawasaki FX

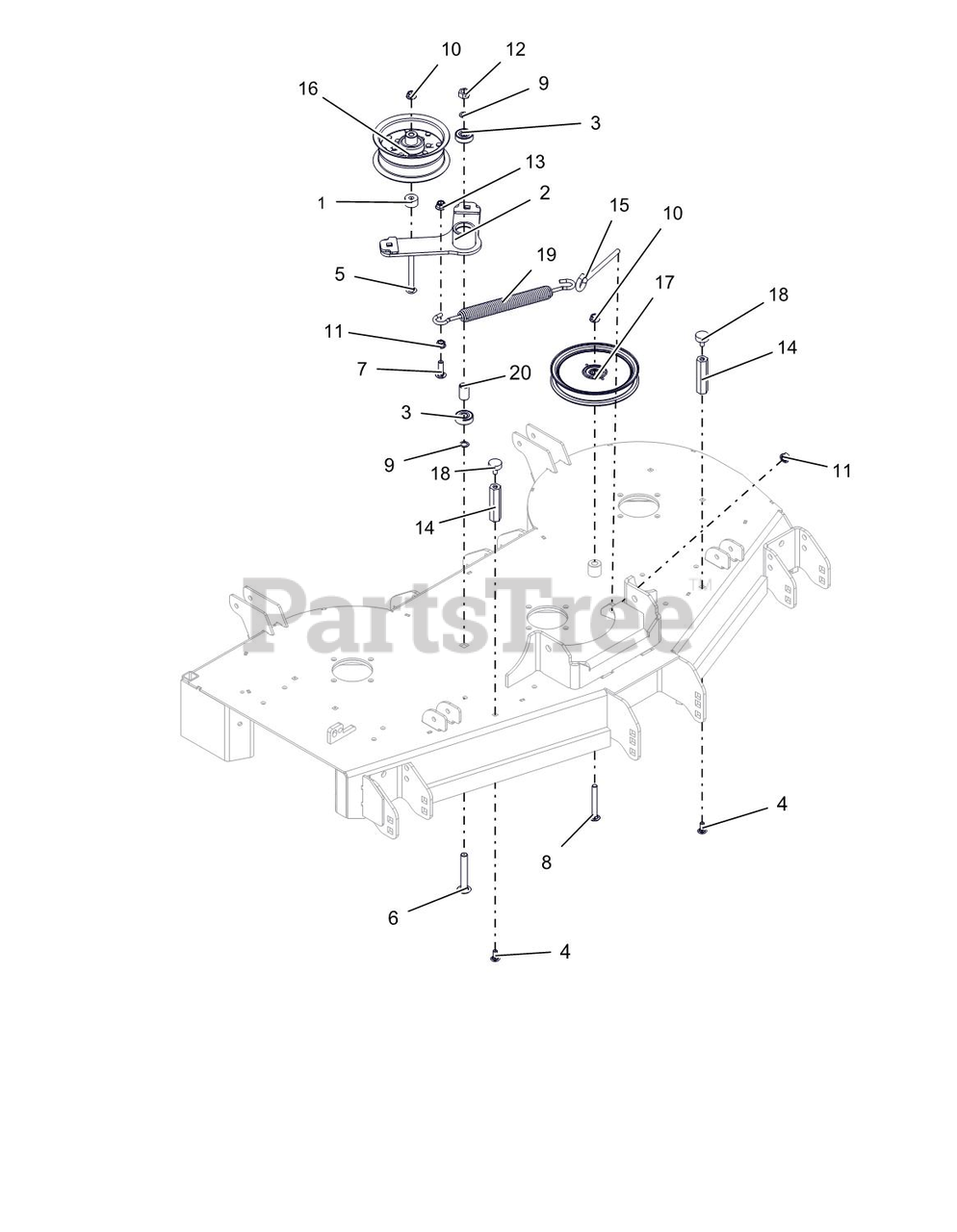

Idlers And Sheaves - 48" Parts Diagram

  • Title

1

Gravely 03035100

SPACER .390X1.000X.562

$9.49

$

In Stock, only 1 left!

0

2

Gravely 04766051

WLDMT, DECK IDLER ARM

$80.99

$

In Stock, only 1 left!

0

3

Gravely 05408000

BRG-BALL .500X1.38X.437

$5.99

$

In Stock, Qty 20+

0

4

Gravely 06200002

BLT,RDHDSQNK .31-18X.75 LOCTIT
(Superseded to 06200425)

$3.99

$

In Stock, only 3 left!

0

5

Gravely 06200125

BLT-RHDSSQNK .38-16X3.50 G5YZ
(Superseded to 06200238)

$3.99

$

In Stock, Qty 20+

0

6

Gravely 06200216

BLT,RDHDSQSHNK.50-13X3.25 G5YZ
(Superseded to 06200339)

$3.99

$

In Stock, Qty 20+

0

7

Gravely 06222200

BLT-RHDSSQNK .38-16X1.25 G5YZ
(Superseded to 06200236)

$2.49

$

In Stock, Qty 20+

0

8

Gravely 06228100

BLT-RDHDSQNK .38-16X3.00 G5YZ
(Superseded to 06200418)

$3.99

$

In Stock, only 1 left!

0

9

Gravely 06400015

WASHER, .500X.750X.020 THRUST

$1.49

$

In Stock, Qty 20+

0

10

Gravely 06534800

NUT-LK-CTR-FLG .38-16 YWZC
(Superseded to 06500901)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 06534900

NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 06536300

NUT-LK-CTR .50-13 YWZC
(Superseded to 06500827)

$3.99

$

In Stock, only 1 left!

0

13

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 07000027

NUT, COUPLING .31-18 X 3.00

$22.99

$

In Stock, only 3 left!

0

15

Gravely 07001640

BOLT,.38-16 X 4.25-.62 DIA EYE

$16.99

$

Usually ships in 4-12 days

0

16

Gravely 07300532

PULLEY, FLAT 5.00X2.36X.375

$68.99

$

In Stock, Qty 13

0

17

Gravely 07343300

IDLER, FLAT-6.00" X .75"

$79.99

$

In Stock, Qty 10

0

18

Gravely 07533600

BUMPER, RUBBER

$11.99

$

In Stock, only 1 left!

0

19

Gravely 08300505

SPRING, EXTENSION

$25.99

$

In Stock, Qty 20+

0

20

Gravely 09357700

SPACER .510 X .75 X 1.1485

$4.99

$

In Stock, Qty 7

0
