994132 - Gravely Pro-Stance 48" Stand-On Mower, Kawasaki FX (SN: 000101 - 009999) Deck Lift - Pedal Parts Diagram

Pro-Stance 48" Stand-On Mower, Kawasaki FX

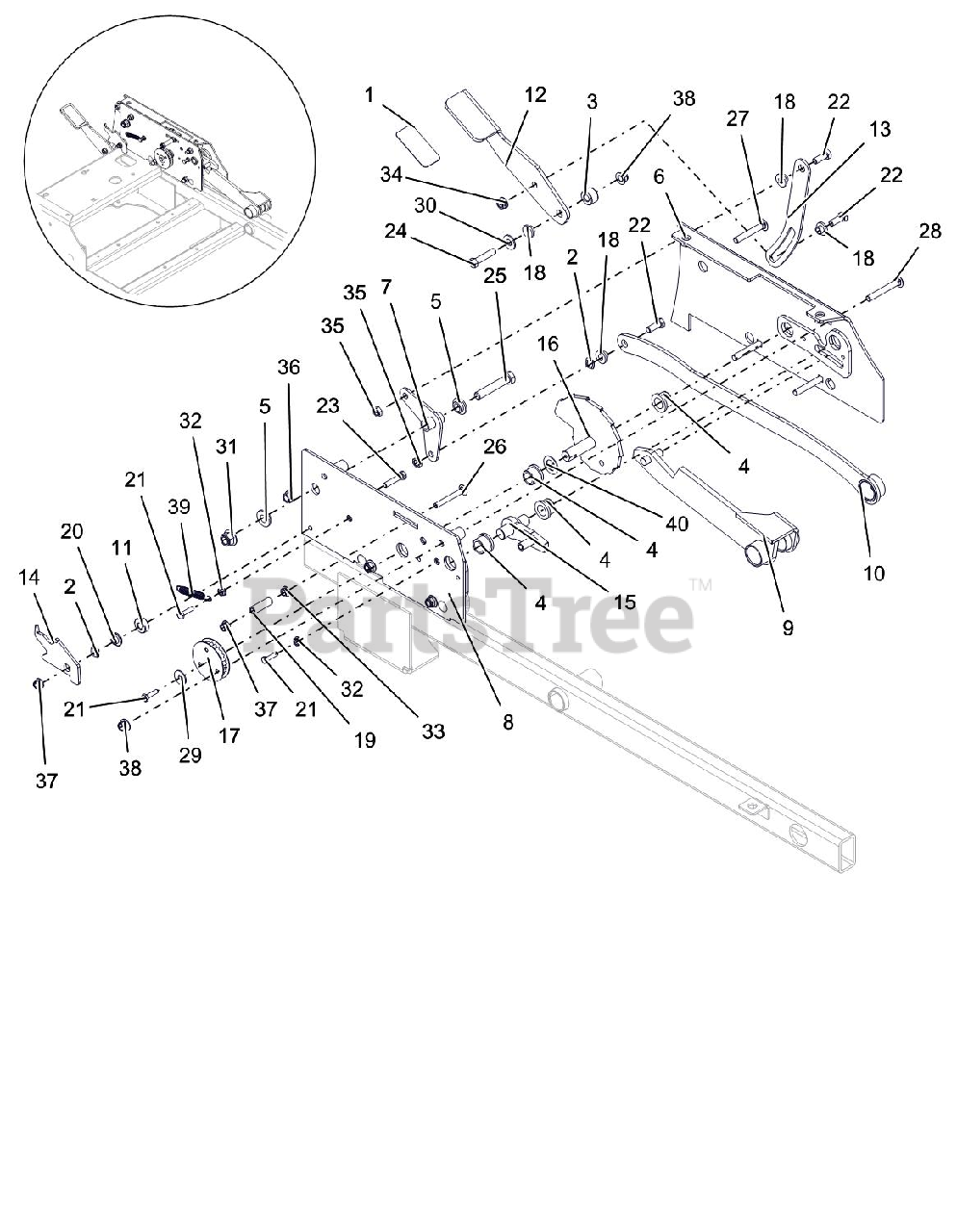

Deck Lift - Pedal Parts Diagram

  • Title

1

Gravely 00270100

GRIP, PEDAL 1.50 X 3.00

$3.49

$

In Stock, Qty 5

0

2

Gravely 00325400

WAVE WASHER .531X.781X.125FH

$0.99

$

In Stock, Qty 20+

0

3

Gravely 03846217

SPACER, .437X1.00X.58 SMLS

$9.99

$

In Stock, Qty 10

0

4

Gravely 03985500

BUSHING, FLANGE .75X.75X1.0

$5.99

$

In Stock, only 3 left!

0

5

Gravely 03989100

BSHG-FLG .515X.750X.310X1.120

$3.49

$

In Stock, Qty 20+

0

6

Gravely 04415653

SIDE, LH BOTTOM TOWER

$129.99

$

Usually ships in 4-12 days

0

7

Gravely 04415751

WLDMT, REAR PIVOT

$73.99

$

Usually ships in 4-12 days

0

8

Gravely 04415853

WLDMT, CAM COVER

$87.99

$

Usually ships in 4-12 days

0

9

Gravely 04415951

WLDMT, CAM CONTACT

$142.99

$

Usually ships in 4-12 days

0

10

Gravely 04416051

WLDMT, DECK LIFT LINK

$64.99

$

Usually ships in 4-12 days

0

11

Gravely 04448100

SPCR, .375 X 1.00 X .342

$22.99

$

In Stock, only 3 left!

0

12

Gravely 04545351

PEDAL, DECK LIFT

$27.99

$

In Stock, only 1 left!

0

13

Gravely 04545451

LINK, DECK LIFT PEDAL

$22.99

$

Usually ships in 4-12 days

0

14

Gravely 04545853

LATCH, FOOT PEDAL

$6.49

$

Usually ships in 4-12 days

0

15

Gravely 04781400

WLDMT, DECK LOCK

$168.99

$

Usually ships in 4-12 days

0

16

Gravely 04954467

WLDMT, HEIGHT OF CUT

$115.99

$

Usually ships in 4-12 days

0

17

Gravely 04967967

WLDMT, LOWER PULLEY

$40.99

$

Usually ships in 4-12 days

0

18

Gravely 05500435

BSHG-FLG .385X.500X.875X.406

$2.49

$

In Stock, Qty 20+

0

19

Gravely 05501110

BSHG-SLV .325X.49X1.56

$9.99

$

Usually ships in 4-12 days

0

20

Gravely 05514800

BSHG-FLG .32X.500X.344X.880

$2.49

$

In Stock, only 3 left!

0

21

Gravely 05947700

@BLT-HEX .25-20X1.00 GR5 YWZC
(Superseded to 05901639)

$1.49

$

In Stock, Qty 9

0

22

Gravely 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

23

Gravely 05952400

@BLT-HEX .31-18X1.50 GR5 YWZC
(Superseded to 05901710)

$1.49

$

In Stock, Qty 11

0

24

Gravely 05958500

@BLT-HEX .38-16X1.75 GR5 YWZC
(Superseded to 05901809)

$1.49

$

In Stock, Qty 20+

0

25

Gravely 05965500

@BLT-HEX .50-13X2.75 GR5 YWZC
(Superseded to 05901720)

$4.99

$

Usually ships in 4-12 days

0

26

Gravely 06219400

@BLT-RDHDSQNK .31-18X2.50 G5YZ
(Superseded to 06200409)

$3.49

$

Usually ships in 4-12 days

0

27

Gravely 06224400

@BLT-RDHDSQNK .38-16X2.50 G5YZ
(Superseded to 06200234)

$3.99

$

In Stock, Qty 18

0

28

Gravely 06225400

@BLT-RDHDSQNK .38-16X2.75 G5YZ
(Superseded to 06200316)

$3.99

$

In Stock, only 1 left!

0

29

Gravely 06426600

WSHR-FL-STL .281X1.000X.063
(Superseded to 06401020)

$0.99

$

In Stock, Qty 20+

0

30

Gravely 06435900

@WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$1.49

$

In Stock, Qty 20+

0

31

Gravely 06500010

@NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$1.49

$

In Stock, Qty 20+

0

32

Gravely 06530100

@NUT-SPNLK-FLG .25-20 YWZC
(Superseded to 06500824)

$0.99

$

In Stock, Qty 20+

0

33

Gravely 06530400

@NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.49

$

In Stock, Qty 20+

0

34

Gravely 06534800

NUT-LK-CTR-FLG .38-16 YWZC
(Superseded to 06500901)

$1.49

$

In Stock, Qty 20+

0

35

Gravely 06537200

@NUT-LK-CTR-JAM .375-16 YWZC
(Superseded to 06500914)

$0.99

$

In Stock, Qty 20+

0

36

Gravely 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

37

Gravely 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

38

Gravely 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

39

Gravely 08300527

SPRING, EXTENSION

$3.49

$

In Stock, only 2 left!

0

40

Gravely 00150052

WSHR-FL-STL .750X1.250X.048 YZ

$4.99

$

Usually ships in 4-12 days

0
