994131 - Gravely Pro-Stance 36" Stand-On Mower, Kawasaki FX (SN: 020000 & Above) Steering Rods Parts Diagram

Pro-Stance 36" Stand-On Mower, Kawasaki FX

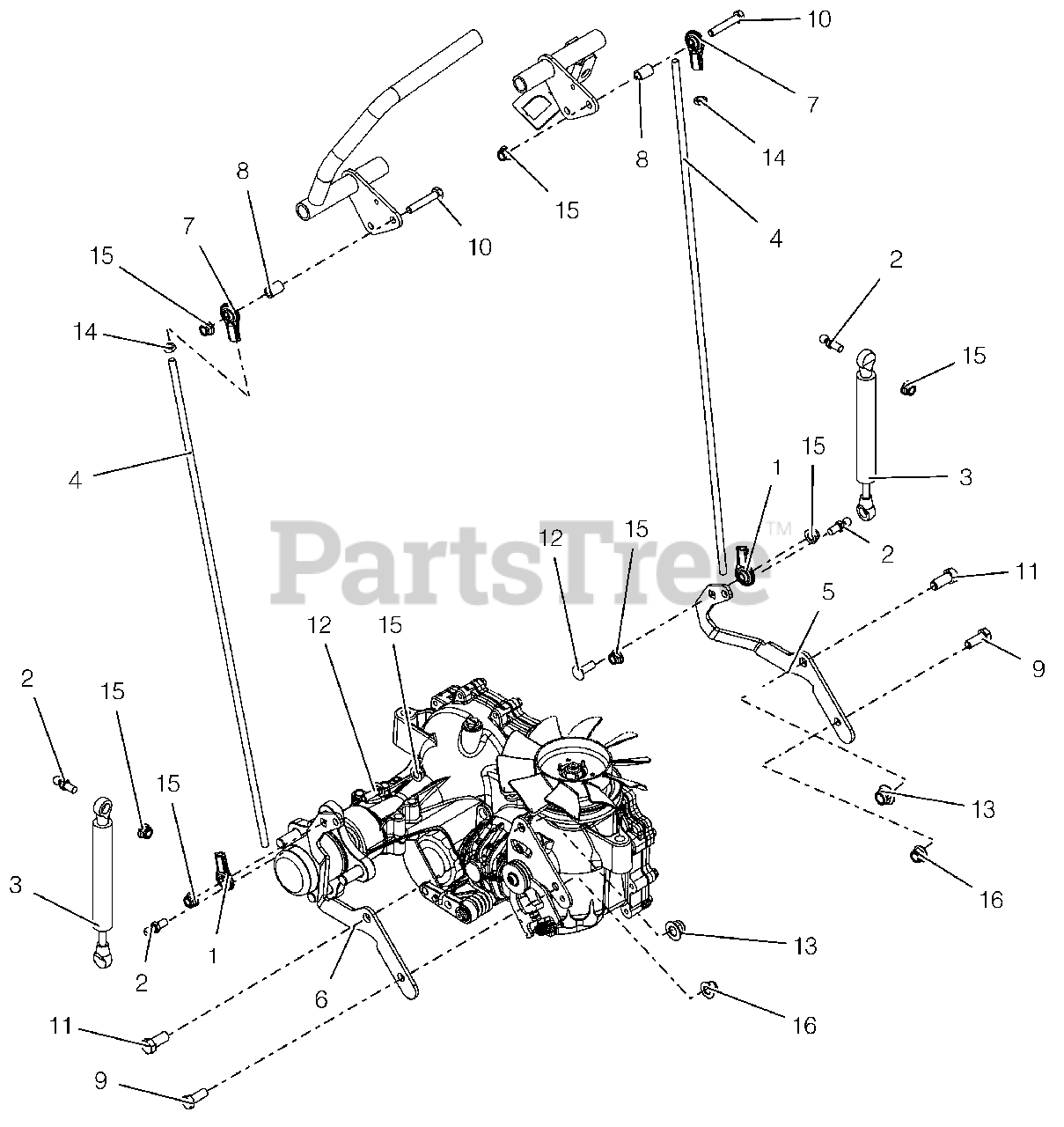

Steering Rods Parts Diagram

  • Title

1

Gravely 03787100

ALIGNABALL, 5/16 RH THREAD

$12.99

$

In Stock, only 2 left!

0

2

Gravely 03652200

STUD- BALL

$3.49

$

In Stock, only 3 left!

0

3

Gravely 03914100

DAMPER, CONTROL
(Superseded to 30151500)

$31.99

$

In Stock, only 2 left!

0

4

Gravely 04399900

ROD, STEERING

$

$

Not available

5

Gravely 04595451

BRKT, LH TRANS CONTROL

$41.99

$

Usually ships in 4-12 days

0

6

Gravely 04595551

BRKT, RH TRANS CONTROL

$

$

Not available

7

Gravely 03787200

ALIGNABALL, 5/16 LH THREAD
(Superseded to 05298700)

$

$

Not available

8

Gravely 05531500

BSHG-SLV .328X.50X.75

$13.99

$

In Stock, only 1 left!

0

9

Gravely 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 05957400

@BLT-HEX .31-18X1.75 GR5 YWZC
(Superseded to 05901804)

$2.99

$

In Stock, Qty 8

0

11

Gravely 05958700

@BLT-HEX .44-14X1.00 GR5 YWZC
(Superseded to 05901913)

$2.99

$

In Stock, only 1 left!

0

12

Gravely 06216100

@BLT-RDHDSQNK .31-18X1.00 G5YZ
(Superseded to 06200231)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 06500009

@NUT-LK-NYL-FLG .44-14 YWZC
(Superseded to 06500811)

$5.99

$

In Stock, only 1 left!

0

14

Gravely 06544300

NUT-JAM LH .31-24 YWZC
(Superseded to 06501002)

$

$

Not available

15

Gravely 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0
