994131 - Gravely Pro-Stance 36" Stand-On Mower, Kawasaki FX (SN: 020000 & Above) Deck Lift - Left Hand Parts Diagram

Pro-Stance 36" Stand-On Mower, Kawasaki FX

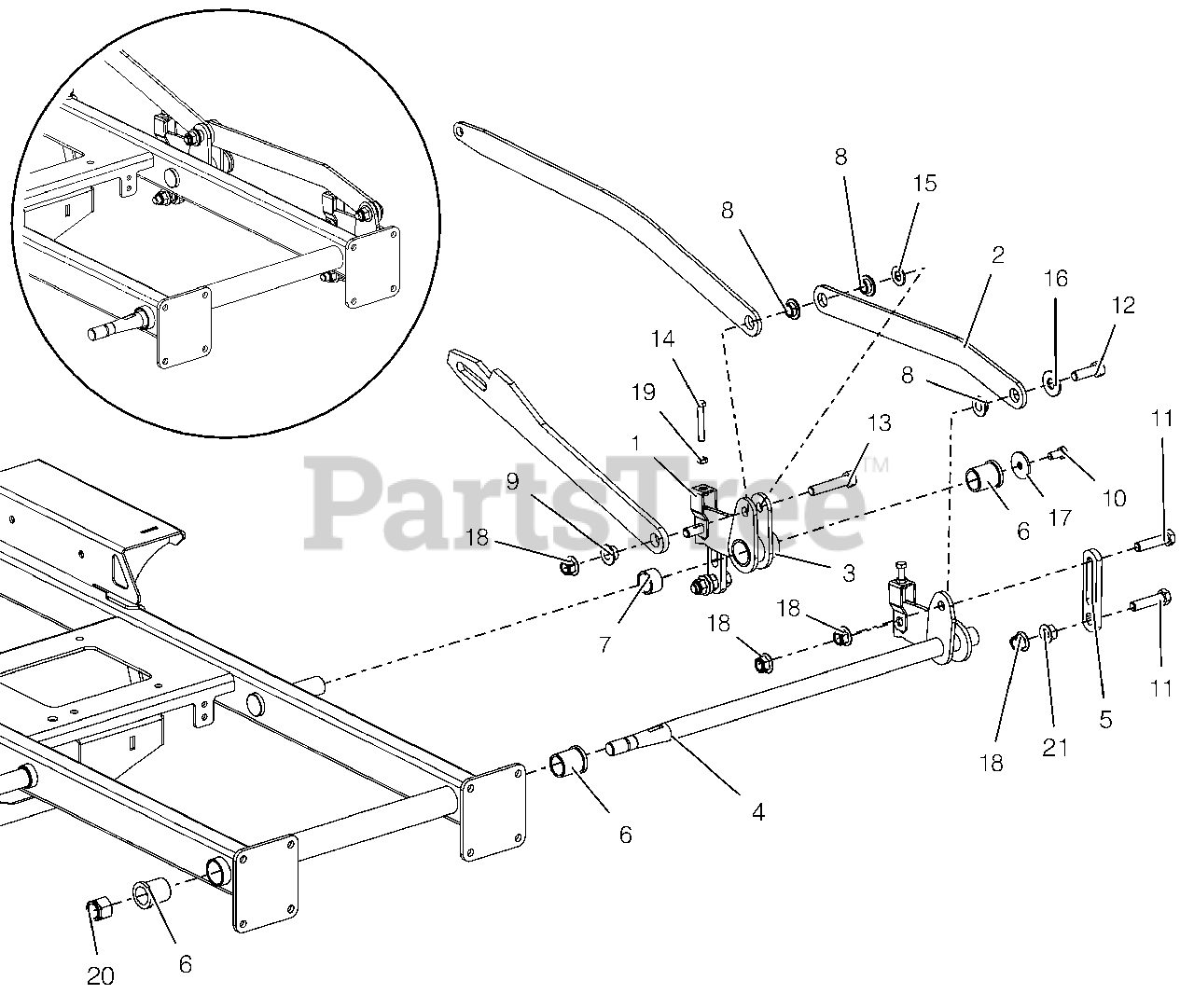

Deck Lift - Left Hand Parts Diagram

  • Title
1

Gravely 00442800

BRKT, DECK LEVELING

$9.49

$

In Stock, only 2 left!

0

2

Gravely 04635551

PLATE, DECK ARM

$

$

Not available

3

Gravely 04634851

WLDMT, REAR DECK ARM

$71.99

$

Usually ships in 4-12 days

0

4

Gravely 04695267

WLDMT, FRONT LH DECK LIFT ARM

$170.99

$

Usually ships in 4-12 days

0

5

Gravely 04732500

LINK-DECK LIFT - SHORT

$

$

Not available

6

Gravely 05500934

BSHG-FLG 1.00X1.25X1.50X1.50

$6.99

$

In Stock, Qty 20+

0

7

Gravely 05501117

BUSH, SLV 1.00 X 1.25 X .75

$

$

Not available

8

Gravely 05501135

BSHG, FLG .515X.750X.360X1.12

$18.99

$

Usually ships in 4-12 days

0

9

Gravely 05501136

BSHG, FLG .515X.750X.480X1.12

$

$

Not available

10

Gravely 05959400

@BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 05959700

@BLT-HEX .50-13X2.00 GR5 YWZC
(Superseded to 05901929)

$

$

Not available

12

Gravely 05962000

@BLT-HEX .50-13X1.50 GR5 YWZC
(Superseded to 05901631)

$3.99

$

In Stock, only 1 left!

0

13

Gravely 05966600

@BLT-HEX .50-13X2.50 GR5 YWZC
(Superseded to 05901712)

$3.99

$

In Stock, only 3 left!

0

14

Gravely 05980900

BLT-HEX .312-18X2.00 FTH GR5YZ
(Superseded to 05902003)

$2.99

$

In Stock, only 2 left!

0

15

Gravely 06441900

@WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

16

Gravely 06442000

@WSHR-FL-STL.563X1.38X.109YWZC
(Superseded to 06401012)

$2.49

$

In Stock, only 1 left!

0

17

Gravely 06443400

WSHR-FL-STL .380X1.50X.125YWZC
(Superseded to 06401106)

$3.49

$

In Stock, Qty 10

0

18

Gravely 06500010

@NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 06536100

NUT- JAM .312-18 YWZC
(Superseded to 06500909)

$0.99

$

In Stock, Qty 20+

0

20

Gravely 06540800

@NUT-LK-NYL .75-10 YWZC

$5.99

$

In Stock, Qty 6

0

21

Gravely 06543300

NUT-SPNLK-FLG .50-13 YWZC
(Superseded to 06500928)

$3.99

$

Usually ships in 4-12 days

0
