994131 - Gravely Pro-Stance 36" Stand-On Mower, Kawasaki FX (SN: 010000 - 019999) Drive Belt And Clutch Parts Diagram

Pro-Stance 36" Stand-On Mower, Kawasaki FX

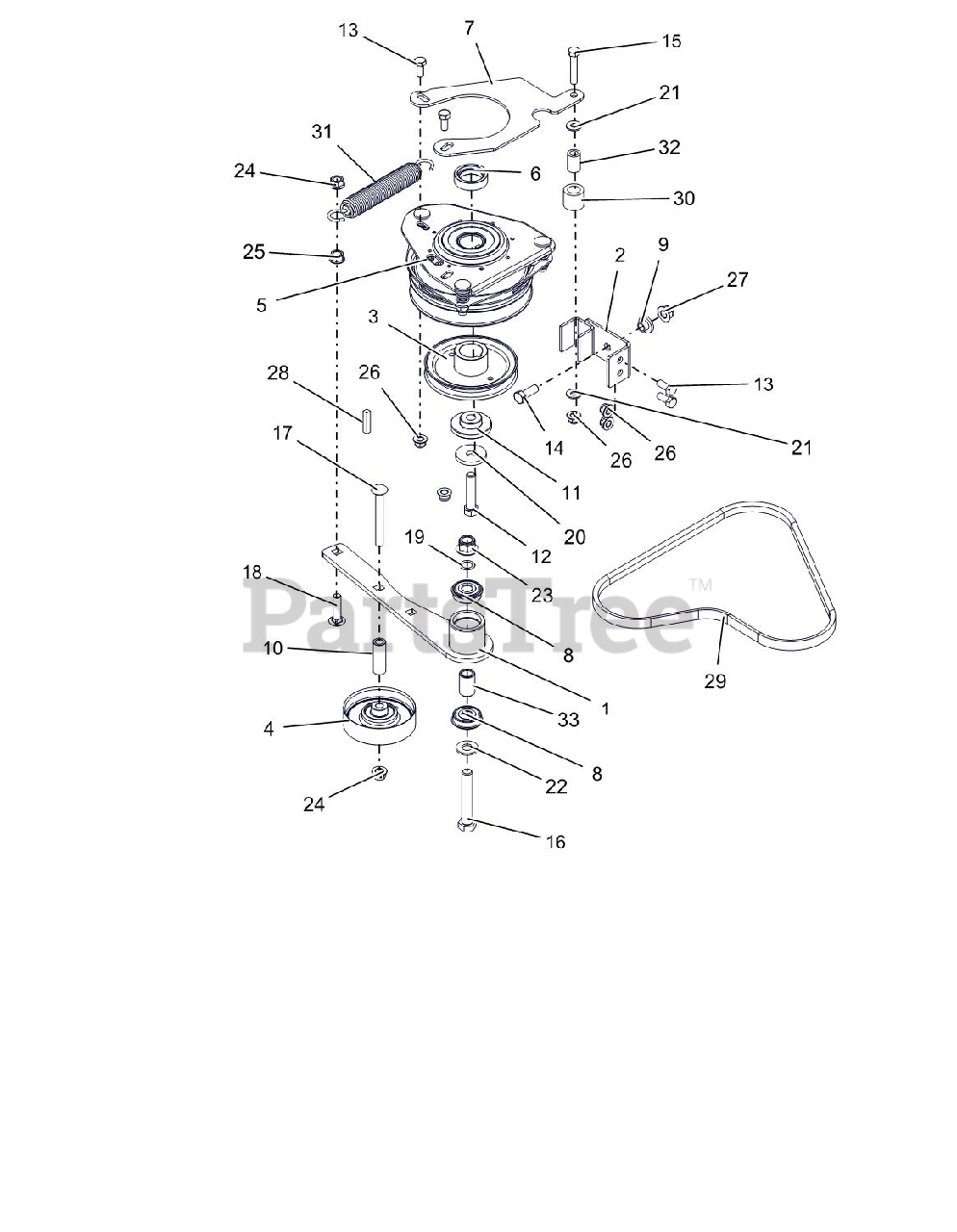

Drive Belt And Clutch Parts Diagram

  • Title

1

Gravely 04597451

WLDMT, HYDRO DRIVE IDLER ARME

$72.99

$

In Stock, only 3 left!

0

2

Gravely 04635851

WLDMT, CLUTCH STOP

$66.99

$

Usually ships in 4-12 days

0

3

Gravely 07340667

SHEAVE, ENGINE 4.50 X 1.127

$219.99

$

Usually ships in 4-12 days

0

4

Gravely 07341100

IDLER, FLAT 3.5" NO FLANGES

$113.99

$

In Stock, only 2 left!

0

5

Gravely 03789900

CLUTCH, OGURA GT1A-AR03

$349.99

$

In Stock, only 3 left!

0

6

Gravely 04650700

SPCR, CLUTCH

$25.99

$

Usually ships in 4-12 days

0

7

Gravely 04663951

PLATE, CLUTCH DOG

$

$

Not available

8

Gravely 05480000

BRG-BALL .50X1.38X.438 SEALED

$13.99

$

In Stock, Qty 20+

0

9

Gravely 05500435

BSHG-FLG .385X.500X.875X.406

$2.49

$

In Stock, Qty 20+

0

10

Gravely 05501138

BSHG, SLV .375 X .75 X 1.75

$43.99

$

Usually ships in 4-12 days

0

11

Gravely 05501206

BSHG-FLG .469X1.06X.574X2.0

$19.99

$

In Stock, only 1 left!

0

12

Gravely 05901530

BLT-HEX .438-20X2 G8YZ NYTORQ
(Superseded to 05901916)

$3.99

$

In Stock, only 1 left!

0

13

Gravely 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 05957400

@BLT-HEX .31-18X1.75 GR5 YWZC
(Superseded to 05901804)

$2.99

$

In Stock, Qty 8

0

16

Gravely 05959900

@BLT-HEX .50-13X3.00 GR5 YWZC
(Superseded to 05901737)

$4.99

$

In Stock, only 1 left!

0

17

Gravely 06200001

BLT-RDHDSQNK .38-16X3.25 GR5YZ

$3.49

$

In Stock, only 1 left!

0

18

Gravely 06224200

@BLT-RDHDSQNK .38-16X1.50 G5YZ
(Superseded to 06200416)

$3.99

$

In Stock, only 2 left!

0

19

Gravely 06400015

WASHER, .500X.750X.020 THRUST

$1.49

$

In Stock, Qty 20+

0

20

Gravely 06400936

WASHER, 7/16" SPRING DISK

$11.99

$

In Stock, only 1 left!

0

21

Gravely 06435800

@WSHR-FL-STL.312X.734X.065 YWZ
(Superseded to 06401124)

$0.99

$

In Stock, Qty 20+

0

22

Gravely 06441900

@WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

23

Gravely 06500010

@NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$1.49

$

In Stock, Qty 20+

0

24

Gravely 06534800

NUT-LK-CTR-FLG .38-16 YWZC
(Superseded to 06500901)

$1.49

$

In Stock, Qty 20+

0

25

Gravely 06534900

@NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$1.49

$

In Stock, Qty 20+

0

26

Gravely 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

27

Gravely 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

28

Gravely 06603400

KEY-SQ .25 X 1.25 X .25 SAE

$3.99

$

In Stock, Qty 11

0

29

Gravely 07200641

BELT, 4L RAW EDGE 37.900"

$25.99

$

In Stock, Qty 16

0

30

Gravely 07500007

BUMPER,RUBBER .62X1.0X.88 LG

$5.99

$

In Stock, only 2 left!

0

31

Gravely 08300513

SPRING, EXTENSION 1.0 X 6.65

$34.99

$

In Stock, only 1 left!

0

32

Gravely 08833400

BUSH.,S.391X.622X.950 ST

$5.99

$

In Stock, only 1 left!

0

33

Gravely 09357700

SPACER .510 X .75 X 1.1485

$4.99

$

In Stock, only 4 left!

0
