994131 - Gravely Pro-Stance 36" Stand-On Mower, Kawasaki FX (SN: 000101 - 009999) Operator Pad And Latch Parts Diagram

Pro-Stance 36" Stand-On Mower, Kawasaki FX

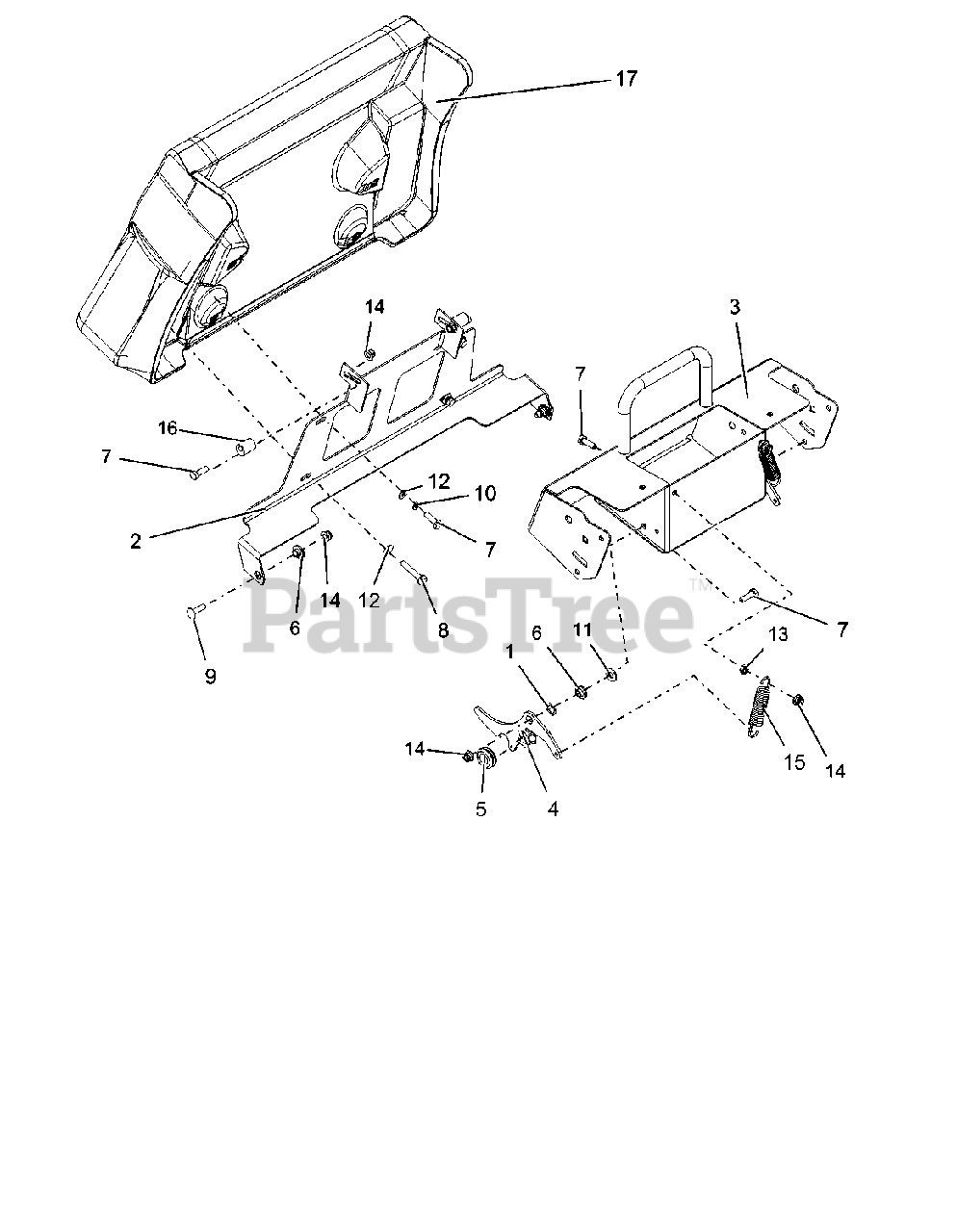

Operator Pad And Latch Parts Diagram

  • Title

1

Gravely 00325400

WAVE WASHER .531X.781X.125FH

$0.99

$

In Stock, Qty 20+

0

2

Gravely 04634453

PAD, MOUNT

$55.99

$

Usually ships in 4-12 days

0

3

Gravely 04723853

WLDMT, CONTROL PANEL PROSTANCE

$232.99

$

Usually ships in 4-12 days

0

4

Gravely 04786600

LATCH, PAD MOUNT

$16.99

$

Usually ships in 4-12 days

0

5

Gravely 04814300

GROMMET, SPLIT RUBBER

$

$

Not available

6

Gravely 05514800

BSHG-FLG .32X.500X.344X.880

$2.49

$

In Stock, only 3 left!

0

7

Gravely 05946900

@BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 05957400

@BLT-HEX .31-18X1.75 GR5 YWZC
(Superseded to 05901804)

$2.99

$

In Stock, Qty 8

0

9

Gravely 06200124

BLT-RDHDSQSHNK.31-18X1.13 G5YZ
(Superseded to 06200334)

$

$

Not available

10

Gravely 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 06435800

@WSHR-FL-STL.312X.734X.065 YWZ
(Superseded to 06401124)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 06500011

@NUT-LK-CTR-JAM .31-18 YWZC
(Superseded to 06500913)

$0.99

$

In Stock, Qty 5

0

14

Gravely 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 08311700

SG-TENS .105X.812X3.88 WLD 15

$7.99

$

In Stock, only 1 left!

0

16

Gravely 09235700

ECCENTRIC

$4.99

$

Usually ships in 4-12 days

0

17

Gravely 04876300

PAD, PRO-STANCE OPERATOR

$

$

Not available
