994131 - Gravely Pro-Stance 36" Stand-On Mower, Kawasaki FX (SN: 000101 - 009999) Front Axle And Tire Parts Diagram

Pro-Stance 36" Stand-On Mower, Kawasaki FX

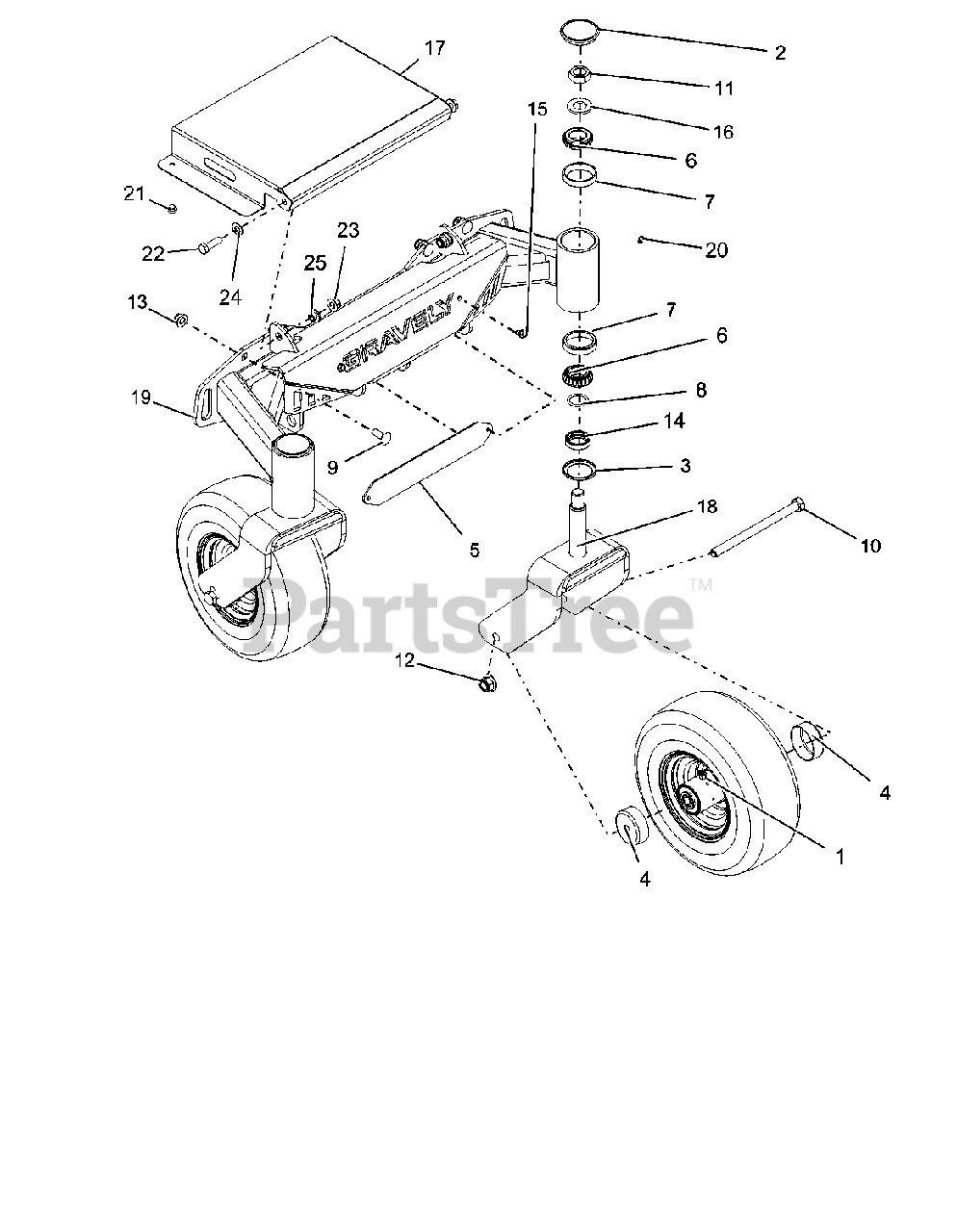

Front Axle And Tire Parts Diagram

  • Title
1

Gravely 07101108

ASM, WHL/TIRE 11X4.00-5
(Superseded to 59404500)

$193.99

$

Usually ships in 4-12 days

0

2

Gravely 00456800

CAP, DUST

$18.99

$

In Stock, Qty 9

0

3

Gravely 00531400

BEARING SEAL 1.5 X 2 X .18

$10.99

$

In Stock, only 4 left!

0

4

Gravely 09357800

SHIELD, WHEEL BEARING

$9.49

$

In Stock, Qty 20+

0

5

Gravely 04683651

BACK, NAMEPLATE

$10.99

$

Usually ships in 4-12 days

0

6

Gravely 05406900

BRG-CONE 1.0X.58

$18.99

$

In Stock, Qty 20+

0

7

Gravely 05407000

BRG-CUP1.980X.420

$17.99

$

In Stock, Qty 20+

0

8

Gravely 05610000

O-RING 1.000X1.250X

$3.99

$

Usually ships in 4-12 days

0

9

Gravely 06223600

@BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

$2.49

$

In Stock, Qty 10

0

10

Gravely 05900002

@BLT-HEX .50-13X7.00 GR5 YWZC
(Superseded to 05901917)

$7.99

$

In Stock, only 1 left!

0

11

Gravely 06500721

NUT-JAM TOPLK .75-16 YWZC
(Superseded to 06500933)

$3.99

$

In Stock, only 1 left!

0

12

Gravely 06500010

@NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 04720200

SPCR, CASTER FORK (1.00)

$15.99

$

In Stock, only 1 left!

0

15

Gravely 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

16

Gravely 06439000

@WSHR-FL-STL.812X1.50X.135YWZC
(Superseded to 06401140)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 04679753

SHIELD, HEAT

$43.99

$

Usually ships in 4-12 days

0

18

Gravely 04594253

WLDMT, FRONT FORK

$182.99

$

Usually ships in 4-12 days

0

19

Gravely 04593853

WLDMT, FRONT AXLE

$512.99

$

Usually ships in 4-12 days

0

20

Gravely 07001727

FTG, .25-28 FLUSH MNT GREASE

$3.99

$

In Stock, only 1 left!

0

21

Gravely 07503100

BUMPER GROMMET

$3.49

$

In Stock, only 3 left!

0

22

Gravely 05958000

@BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$1.49

$

In Stock, Qty 20+

0

23

Gravely 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

24

Gravely 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

25

Gravely 05514800

BSHG-FLG .32X.500X.344X.880

$2.49

$

In Stock, only 3 left!

0
