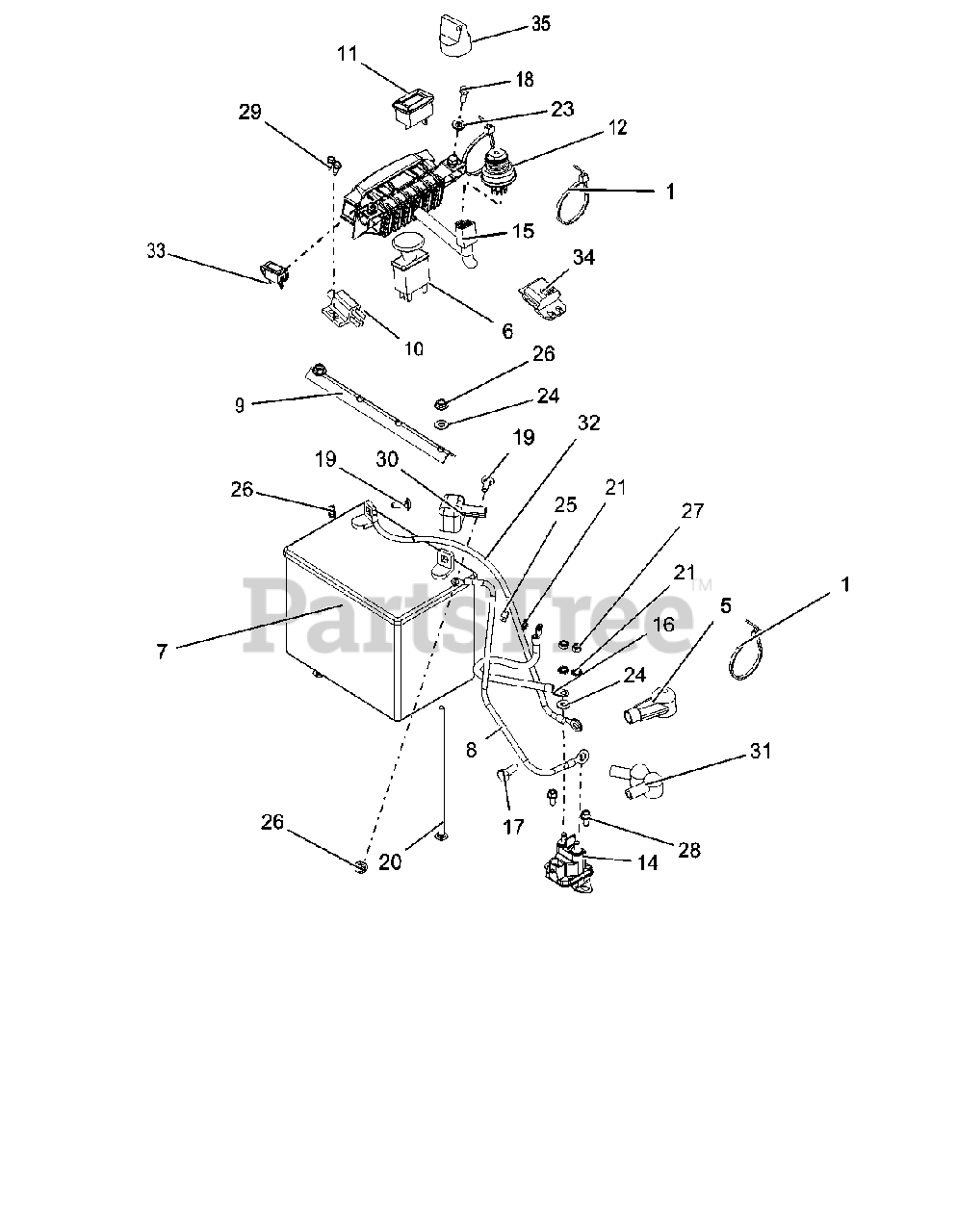

994131 - Gravely Pro-Stance 36" Stand-On Mower, Kawasaki FX (SN: 000101 - 009999) Electrical Parts Diagram

Pro-Stance 36" Stand-On Mower, Kawasaki FX

Electrical Parts Diagram

  • Title

1

Gravely 00111910

CABLE TIE, .15 X 8.50

$

$

Not available

5

Gravely 00525800

BOOT, BATTERY TERMINAL-RED

$7.99

$

Usually ships in 4-12 days

0

6

Gravely 01545600

SWITCH, CLUTCH

$25.99

$

In Stock, Qty 20+

0

7

Gravely 01554800

BATTERY, 300 CCA 10U1L

$

$

Not available

8

Gravely 02727201

CABLE, STARTER 13.00"

$20.99

$

In Stock, Qty 9

0

9

Gravely 03494051

HOLD DOWN

$11.99

$

In Stock, only 2 left!

0

10

Gravely 03606600

SWITCH- DOUBLE POLE N.O./N.O.

$17.99

$

In Stock, only 1 left!

0

11

Gravely 03966800

METER, HOUR W/MAINTENANCE
(Superseded to 09497400)

$23.99

$

In Stock, only 2 left!

0

12

Gravely 04331600

SWITCH, IGNITION

$45.99

$

In Stock, Qty 20+

0

14

Gravely 04781700

SOLENOID, STARTER (SEALED)

$44.99

$

In Stock, only 1 left!

0

15

Gravely 04782100

HARNESS, PROSTANCE WIRING
(Superseded to 05113500)

$258.99

$

Usually ships in 4-12 days

0

15

Gravely 04438100

FUSE,10 AMP MINI-ATC

Note: Component Service Part

$4.99

$

Usually ships in 4-12 days

0

15

Gravely 04438200

FUSE,15 AMP MINI-ATC

Note: Component Service Part

$4.99

$

Usually ships in 4-12 days

0

15

Gravely 04438300

FUSE,20 AMP MINI ATC

Note: Component Service Part

$

$

Not available

15

Gravely 04438400

RELAY,MICRO5 TERML W/RESISTOR

Note: Component Service Part

$19.99

$

In Stock, only 1 left!

0

15

Gravely 09293500

DIODE, CONNECTOR SHELL
(Superseded to 09293501)

Note: Component Service Part

$11.99

$

In Stock, only 2 left!

0

15

Gravely 00191262

FUSE, 20 AMP BLADE S/O

Note: Component Service Part

$14.99

$

In Stock, only 1 left!

0

16

Gravely 04783300

CABLE, POS W/(2)1/4 RING 9.0LG

$5.99

$

Usually ships in 4-12 days

0

17

Gravely 05973300

@BLT-HEX M8-1.25X20 YWZC
(Superseded to 05901628)

$

$

Not available

18

Gravely 05975900

@BLT-HEX M6-1X16 YWZC
(Superseded to 05902026)

$0.99

$

In Stock, only 2 left!

0

19

Gravely 06219900

@BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

$0.99

$

In Stock, Qty 13

0

20

Gravely 06226400

BLT-RDHDSQNK .25-20X7.50 GR2YZ
(Superseded to 06200424)

$4.99

$

In Stock, Qty 20+

0

21

Gravely 06306800

@WSHR-LK-EXT.262X.502X.026YWZC
(Superseded to 06300118)

$0.99

$

Usually ships in 4-12 days

0

23

Gravely 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

24

Gravely 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

25

Gravely 06529700

@NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

26

Gravely 06530100

@NUT-SPNLK-FLG .25-20 YWZC
(Superseded to 06500824)

$0.99

$

In Stock, Qty 20+

0

27

Gravely 06539800

NUT-HEX M6X1.0 YWZC
(Superseded to 06500925)

$

$

Not available

28

Gravely 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

29

Gravely 07415800

@SCR-TAP 10-24X.50 HWH TR YWZC
(Superseded to 07400130)

$2.49

$

In Stock, Qty 5

0

30

Gravely 07505700

INSULATOR

$9.49

$

Usually ships in 4-12 days

0

31

Gravely 07533200

BOOT, EYELET TERMINAL

$3.49

$

In Stock, only 2 left!

0

32

Gravely 08840400

CBL,NEGATIVE BATTERY 20.00

$17.99

$

Usually ships in 4-12 days

0

33

Gravely 08841200

LIGHT,INDICATOR
(Superseded to 05128700)

$6.99

$

In Stock, only 1 left!

0

34

Gravely 09044200

MODULE,INTERLOCK,DELAY, 1801

$71.99

$

In Stock, only 1 left!

0

35

Gravely 09287000

KEY, W/ SHIELD

$14.99

$

In Stock, Qty 20+

0
