994130 - Gravely Pro-Stance 52" Stand-On Mower, EFI (SN: 040000 - 040999) Fuel System Parts Diagram

Pro-Stance 52" Stand-On Mower, EFI

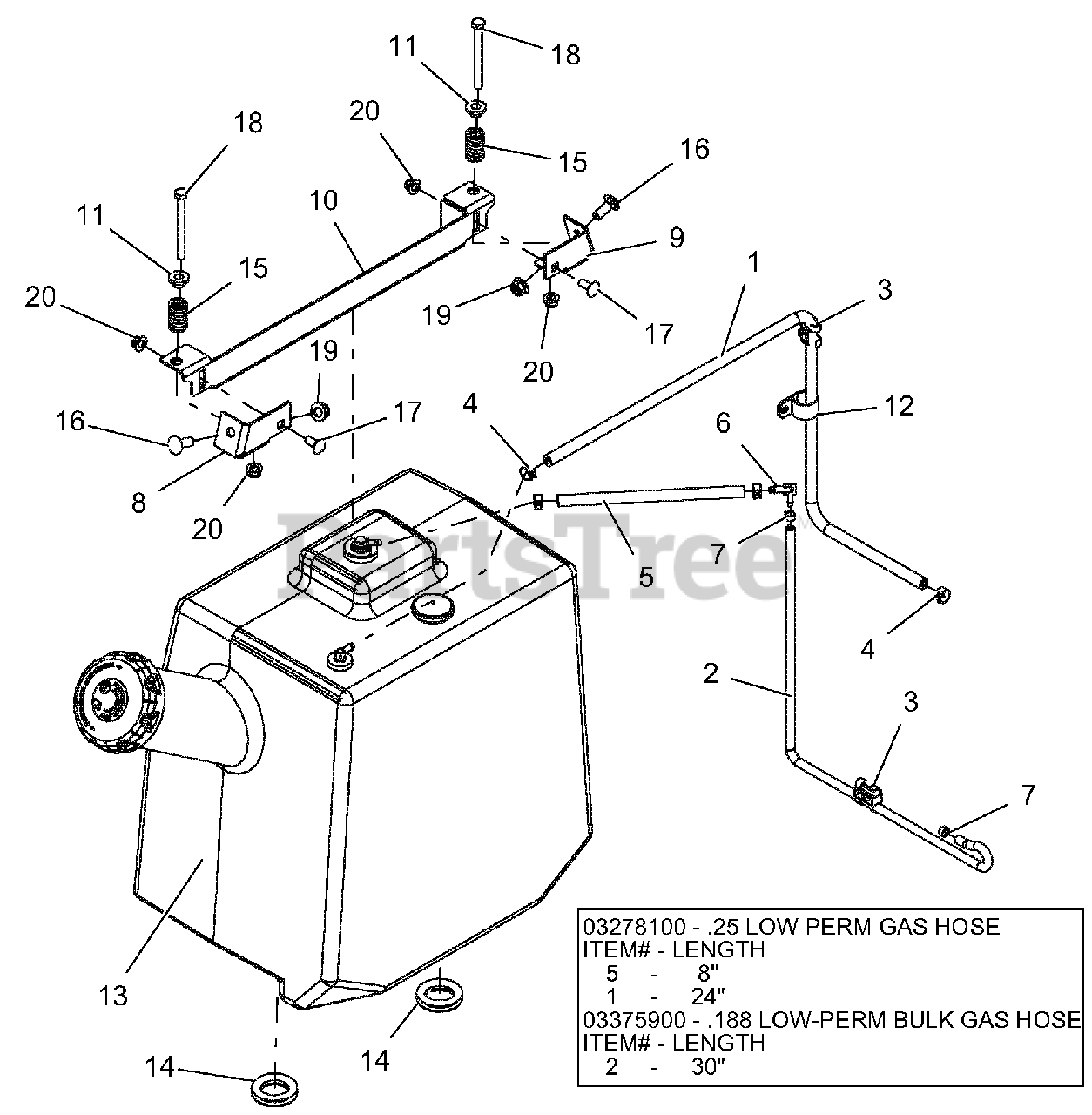

Fuel System Parts Diagram

  • Title

1

Gravely 03278100

.25 LOW PERM GAS HOSE

$1.49

$

In Stock, Qty 20+

0

2

Gravely 03375900

HOSE, .188 LOW-PERM BULK GAS

$0.99

$

Usually ships in 4-12 days

0

3

Gravely 07001712

CLIP, T, .38-.50

$

$

Not available

4

Gravely 03278800

CLAMP, FUEL LINE

$1.49

$

In Stock, Qty 20+

0

5

Gravely 03278100

.25 LOW PERM GAS HOSE

$1.49

$

In Stock, Qty 20+

0

6

Gravely 04097000

FITTING-3/16X1/4 90DEGREE VAC

$14.99

$

Usually ships in 4-12 days

0

7

Gravely 04097700

CLAMP - HOSE, SPRING .188

$

$

Not available

8

Gravely 04503551

WLDMT, TANK HOLDDOWN-RH

$5.99

$

Usually ships in 4-12 days

0

9

Gravely 04503651

WLDMT, TANK HOLDDOWN-LH

$4.99

$

Usually ships in 4-12 days

0

10

Gravely 04745551

HOLDDOWN, FUEL TANK

$22.99

$

Usually ships in 4-12 days

0

11

Gravely 05500435

BSHG, FLG .385 X .500 X .875 X .406

$2.49

$

In Stock, Qty 20+

0

12

Gravely 06917900

CLAMP, CUSHIONED STEEL REV

$14.99

$

Usually ships in 4-12 days

0

13

Gravely 04358300

ASSY, EPA PROSTANCE FUEL TANK

$581.99

$

Usually ships in 4-12 days

0

14

Gravely 07536800

GROMMET, 1.25"

$12.99

$

Usually ships in 4-12 days

0

15

Gravely 08335700

SPRG, COMPRESSION

$9.49

$

In Stock, only 1 left!

0

16

Gravely 06223600

BLT-RDHDSQNK .38-16X1.00 G5 YWZC
(Superseded to 06200313)

$2.49

$

In Stock, Qty 12

0

17

Gravely 06215700

BLT-RDHDSQNK .31-18X.75 G5 YWZC
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

18

Gravely 05971700

BLT-HEX .31-18X3.25 GR5 YWZC

$

$

Not available

19

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0
