994128 - Gravely Pro-Stance 52" Stand-On Mower (SN: 041000 & Above) Tires And Front Axle Parts Diagram

Pro-Stance 52" Stand-On Mower

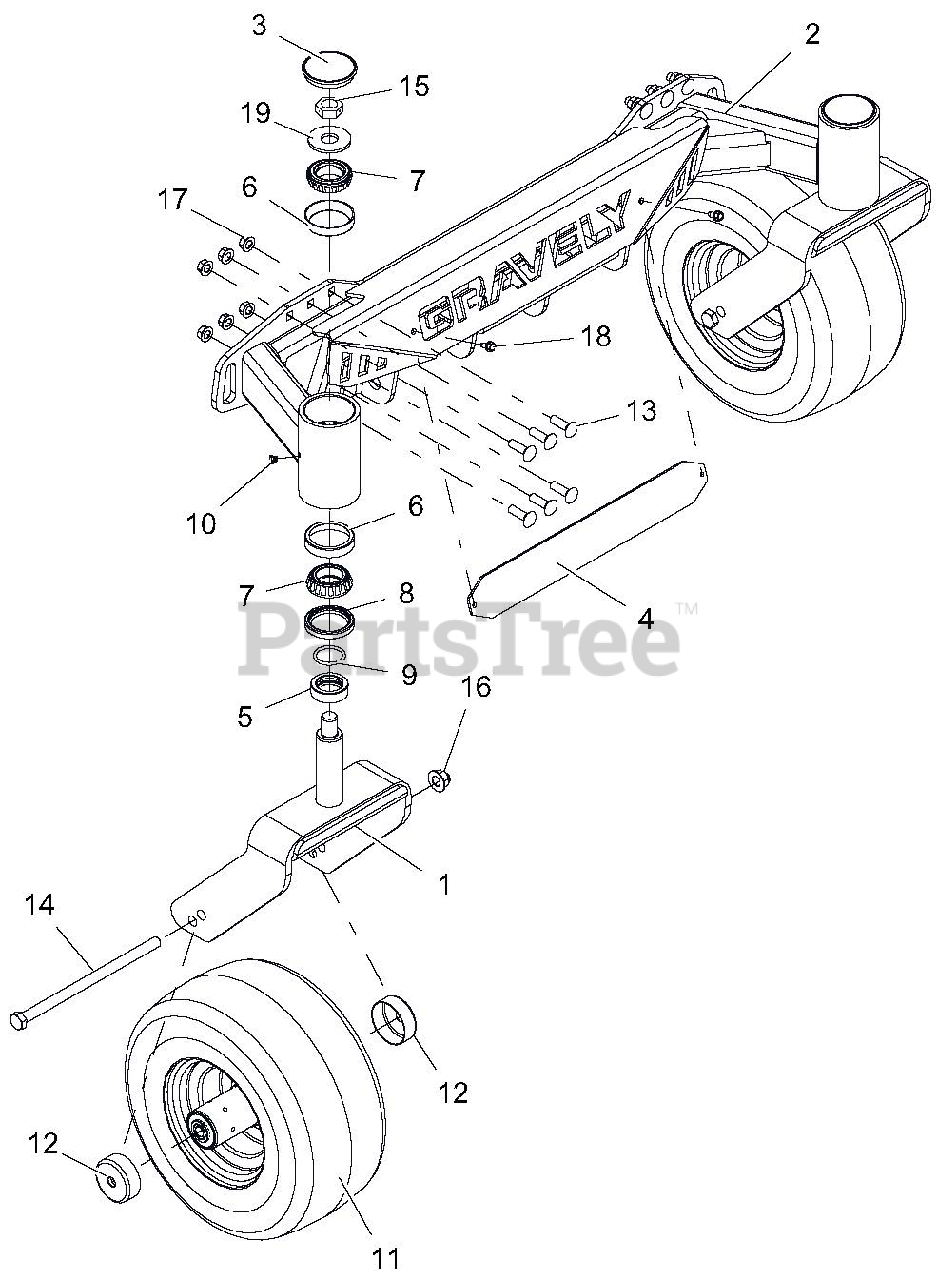

Tires And Front Axle Parts Diagram

  • Title

1

Gravely 03924453

WMT, CASTER FORK -

Note: RED

$180.99

$

In Stock, only 2 left!

0

2

Gravely 04364853

WLDMT, FRONT AXLE

$563.99

$

Usually ships in 4-12 days

0

3

Gravely 03925900

CAP, DUST

$11.99

$

In Stock, only 2 left!

0

4

Gravely 04416951

PLATE, BACK NAME

Note: BLACK

$

$

Not available

5

Gravely 04718600

SPCR, FRONT CASTER FORK
(Superseded to 04861500)

$14.99

$

In Stock, Qty 6

0

6

Gravely 05404600

BRG, CUP 2.328 X .465

$13.99

$

In Stock, only 2 left!

0

7

Gravely 05404700

BRG, CONE 1.250 X .660

$20.99

$

In Stock, Qty 20+

0

8

Gravely 05600432

SEAL, OIL 1.75 X 2.332 X .312

$11.99

$

In Stock, Qty 13

0

9

Gravely 05600515

O-RING, .139 W X 1.234 ID

$2.49

$

In Stock, Qty 8

0

10

Gravely 07001723

PLUG, .250-28 X .185 HEX HEAD

$2.49

$

Usually ships in 4-12 days

0

11

Gravely 07101027

TIRE/WHEEL, 13 X 6.50-6 SEMI PNEU
(Superseded to 07101308)

$170.99

$

In Stock, only 2 left!

0

12

Gravely 09357800

SHIELD, WHEEL BEARING

$9.49

$

In Stock, Qty 20+

0

13

Gravely 06224100

BLT-RDHDSQNK .38-16X1.25 G5 YWZC
(Superseded to 06200415)

$2.49

$

In Stock, only 3 left!

0

14

Gravely 05961200

BLT-HEX .50-13X9.00 GR5 YWZC
(Superseded to 05901930)

$10.99

$

In Stock, Qty 20+

0

15

Gravely 06536900

@NUT-LK-CTR-JAM .75-16 YWZC

$5.99

$

In Stock, only 3 left!

0

16

Gravely 06500010

NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 06542000

NUT, LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

19

Gravely 06439800

WSHR-FL-STL.812X2.00X.148YWZC
(Superseded to 06401201)

$3.99

$

In Stock, only 3 left!

0
