994128 - Gravely Pro-Stance 52" Stand-On Mower (SN: 040000 - 040999) Operator Platform Parts Diagram

Pro-Stance 52" Stand-On Mower

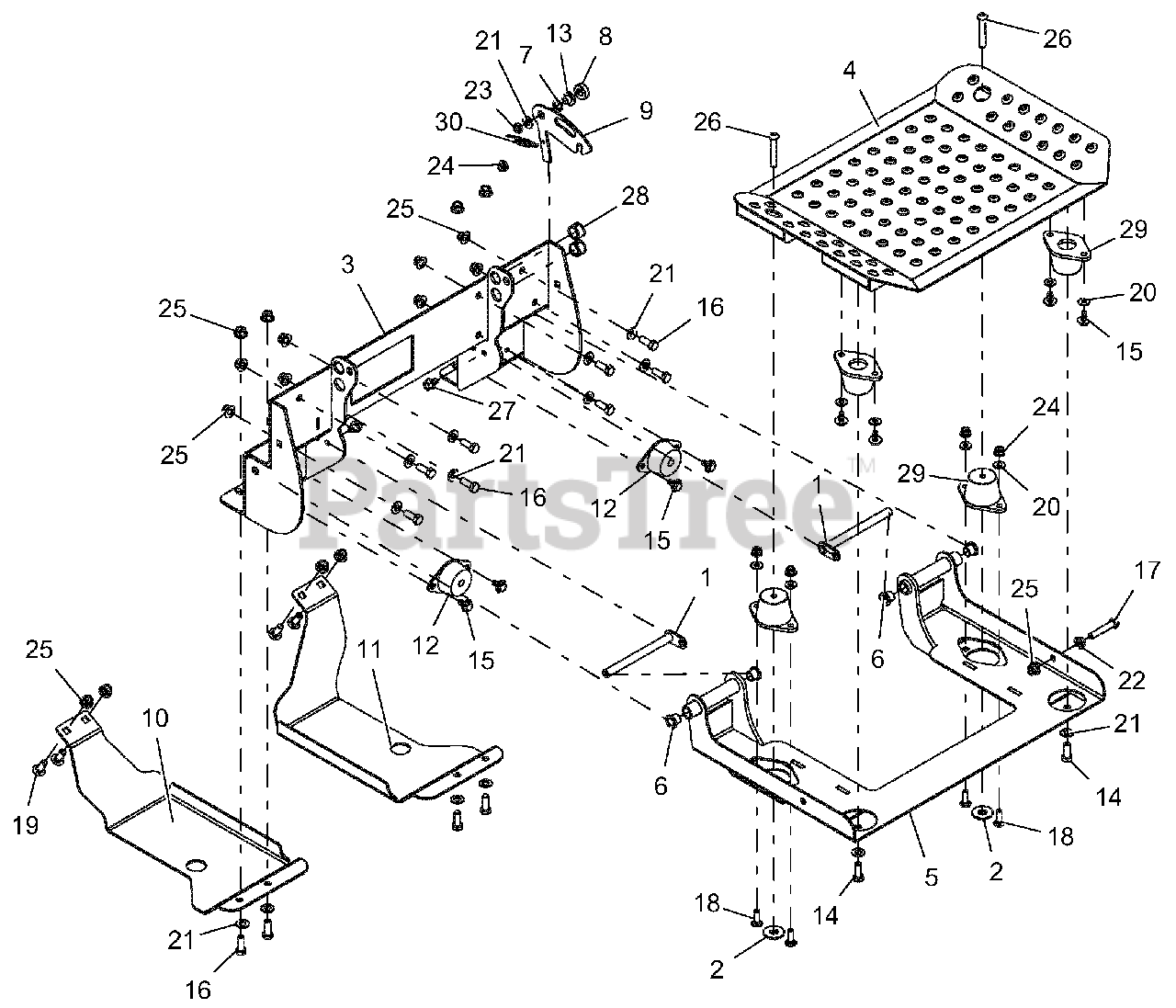

Operator Platform Parts Diagram

  • Title

1

Gravely 00203893

WLDMT, PIN & LOCK

$34.99

$

Usually ships in 4-12 days

0

2

Gravely 04443000

WLDMT, SEAT RETAINER

$22.99

$

In Stock, only 3 left!

0

3

Gravely 04539553

WLDMT, PLATFORM SUPPORT-RED

$249.99

$

Usually ships in 4-12 days

0

4

Gravely 04793653

WLDMT, PLATFORM TOP-RED

$413.99

$

Usually ships in 4-12 days

0

5

Gravely 04793753

WLDMT, PLATFORM CARRIER-RED

$232.99

$

Usually ships in 4-12 days

0

6

Gravely 00200116

BRG, FLG .500 X .620 X .500 BRNZ

$5.99

$

Usually ships in 4-12 days

0

7

Gravely 00325400

WAVE WASHER .531X.781X.125 FH

$0.99

$

In Stock, Qty 20+

0

8

Gravely 04448100

SPCR, .375 X 1.00 X .342

$22.99

$

In Stock, only 3 left!

0

9

Gravely 04529853

LATCH, PLATFORM SIDE

$15.99

$

Usually ships in 4-12 days

0

10

Gravely 04774851

PLATE, LH SKID

$77.99

$

Usually ships in 4-12 days

0

11

Gravely 04774951

PLATE, RH SKID

$68.99

$

Usually ships in 4-12 days

0

12

Gravely 05034800

MOUNT, ENGINE. VIBRATION ISO

$22.99

$

Usually ships in 4-12 days

0

13

Gravely 05500435

BSHG, FLG .385 X .500 X .875 X .406

$2.49

$

In Stock, Qty 20+

0

14

Gravely 05900013

BLT-HEX .38-16X1.00 GR5 YWZC EP30
(Superseded to 05901721)

$1.99

$

In Stock, Qty 20+

0

15

Gravely 05901329

BOLT, 5/16-18X.625 SLF TAP FLG

$3.99

$

Usually ships in 4-12 days

0

16

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 05963300

BLT-HEX .38-16X2.00 GR5 YWZC
(Superseded to 05901718)

$2.99

$

In Stock, only 1 left!

0

18

Gravely 06216100

BLT-RDHDSQSHNK .31-18X1.00 G5 Y
(Superseded to 06200231)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 06223600

BLT-RDHDSQNK .38-16X1.00 G5 YWZC
(Superseded to 06200313)

$2.49

$

In Stock, Qty 12

0

20

Gravely 06435800

WSHR-FL-STL.312X.734X.065 YWZ
(Superseded to 06401124)

$0.99

$

In Stock, Qty 20+

0

21

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

22

Gravely 06534900

@NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$1.49

$

In Stock, Qty 20+

0

23

Gravely 06537200

@NUT-LK-CTR-JAM .375-16 YWZC
(Superseded to 06500914)

$0.99

$

In Stock, Qty 20+

0

24

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

25

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

26

Gravely 07001725

SCR-BTHD-SOCKET .38-16X2.25 FTH YWZC

$3.99

$

In Stock, only 3 left!

0

27

Gravely 07412900

SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

$1.49

$

In Stock, Qty 20+

0

28

Gravely 07500126

BUSH, PANEL SNAP .687X.875X.56

$3.99

$

In Stock, only 2 left!

0

29

Gravely 07500213

MOUNT, ISOLATOR

$45.99

$

In Stock, only 3 left!

0

30

Gravely 08300527

SPRG, EXTENSION

$3.49

$

In Stock, Qty 12

0
