994127 - Gravely Pro-Stance 48" Stand-On Mower, CARB (SN: 041000 & Above) Deck - Mounts Parts Diagram

Pro-Stance 48" Stand-On Mower, CARB

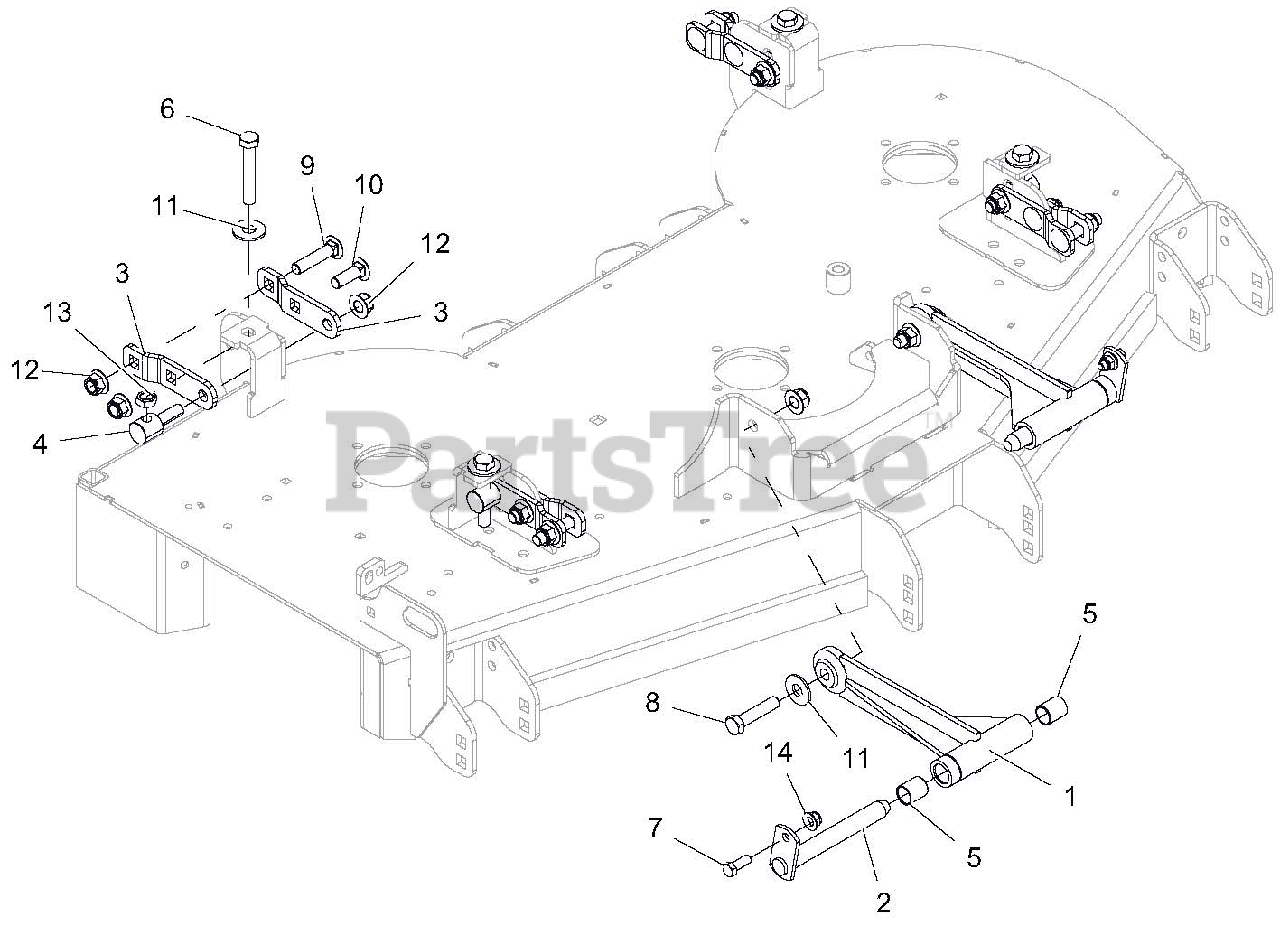

Deck - Mounts Parts Diagram

  • Title

1

Gravely 04570651

WLDMT, DRAG LINK

$169.99

$

Usually ships in 4-12 days

0

2

Gravely 09238900

WLDMT, MOWER MTG. PIN

$61.99

$

In Stock, only 1 left!

0

3

Gravely 03966251

BRKT, DECK LEVELING

Note: BLACK

$22.99

$

Usually ships in 4-12 days

0

4

Gravely 03972000

TRUNNION, .50-13

$48.99

$

In Stock, only 4 left!

0

5

Gravely 05435900

BRG, .750 X .875 X 1.000

$5.99

$

In Stock, only 4 left!

0

6

Gravely 05901421

BLT-HEX .50-13X3.00 GR5 FTH YWZC
(Superseded to 05901737)

$4.99

$

In Stock, only 1 left!

0

7

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 05961000

BLT-HEX .50-13X2.25 GR5 YWZC
(Superseded to 05901835)

$3.49

$

In Stock, Qty 6

0

9

Gravely 06200119

BLT-RDHDSQNK .50-13X2.25 G5 Y
(Superseded to 06200423)

$3.99

$

In Stock, Qty 7

0

10

Gravely 06223100

BLT-RDHDSQNK .50-13X1.50 G5 YWZC
(Superseded to 06200421)

$4.49

$

Usually ships in 4-12 days

0

11

Gravely 06442000

WSHR-FL-STL.563X1.38X.109YWZC
(Superseded to 06401012)

$2.49

$

In Stock, only 1 left!

0

12

Gravely 06500010

NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 06529300

NUT, JAM .500-13 YWZC
(Superseded to 06500911)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0
