994127 - Gravely Pro-Stance 48" Stand-On Mower, CARB (SN: 041000 & Above) Deck Lift - Pedal (Inner) Parts Diagram

Pro-Stance 48" Stand-On Mower, CARB

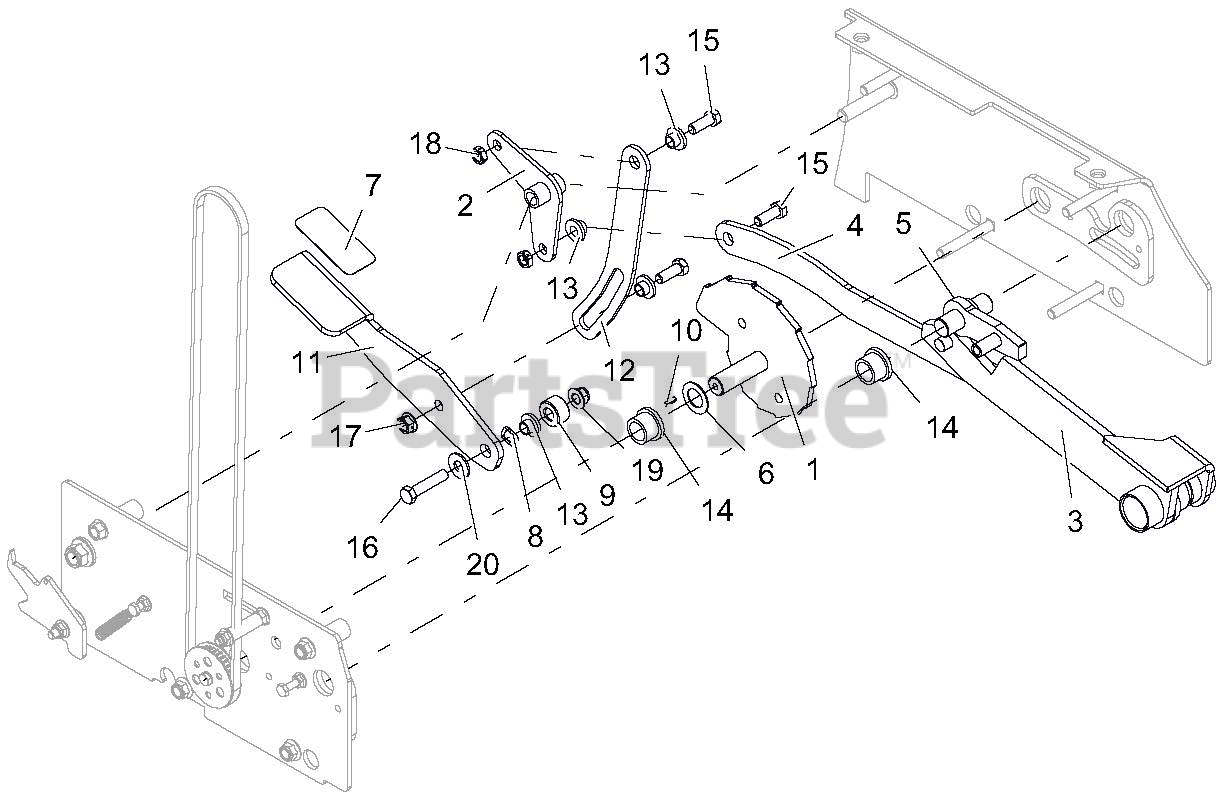

Deck Lift - Pedal (Inner) Parts Diagram

  • Title

1

Gravely 04398500

WLDMT, HEIGHT OF CUT

$75.99

$

Usually ships in 4-12 days

0

2

Gravely 04415751

WLDMT, REAR PIVOT

Note: BLACK

$73.99

$

Usually ships in 4-12 days

0

3

Gravely 04415951

WLDMT, CAM CONTACT

Note: BLACK

$142.99

$

Usually ships in 4-12 days

0

4

Gravely 04416051

WLDMT, DECK LIFT LINK

Note: BLACK

$64.99

$

Usually ships in 4-12 days

0

5

Gravely 04781400

WLDMT, TRAILER LOCK

$168.99

$

Usually ships in 4-12 days

0

6

150052

BUSHING, MACH .75 X 1.25 X .048

$

$

Not available

7

Gravely 00270100

GRIP, PEDAL 1.50 X 3.00

$3.49

$

In Stock, Qty 5

0

8

Gravely 00325400

WAVE WASHER .531X.781X.125 FH

$0.99

$

In Stock, Qty 20+

0

9

Gravely 03846217

SPACER, .437X1.00X.58 SMLS

$9.49

$

In Stock, Qty 10

0

10

Gravely 04488400

KEY, .125 SQ. X.50

$5.99

$

Usually ships in 4-12 days

0

11

Gravely 04545351

PEDAL, DECK LIFT

$27.99

$

In Stock, only 1 left!

0

12

Gravely 04545451

ARM, PEDAL

Note: BLACK

$22.99

$

Usually ships in 4-12 days

0

13

Gravely 05500435

BSHG, FLG .385 X .500 X .875 X .406

$2.49

$

In Stock, Qty 20+

0

14

Gravely 00252126

BUSHING, .750 X 1.00 X .750

$

$

Not available

15

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 05958500

BLT-HEX .38-16X1.75 GR5 YWZC
(Superseded to 05901809)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 06534800

NUT, LK-CTR-FLG .38-16 YWZC
(Superseded to 06500901)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 06537200

@NUT-LK-CTR-JAM .375-16 YWZC
(Superseded to 06500914)

$0.99

$

In Stock, Qty 20+

0

19

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 06435900

WSHR-FL-STL.438X1.00X.083 YWZC
(Superseded to 06401008)

$1.49

$

In Stock, Qty 20+

0
