994127 - Gravely Pro-Stance 48" Stand-On Mower, CARB (SN: 040000 - 040999) Engine And Frame Parts Diagram

Pro-Stance 48" Stand-On Mower, CARB

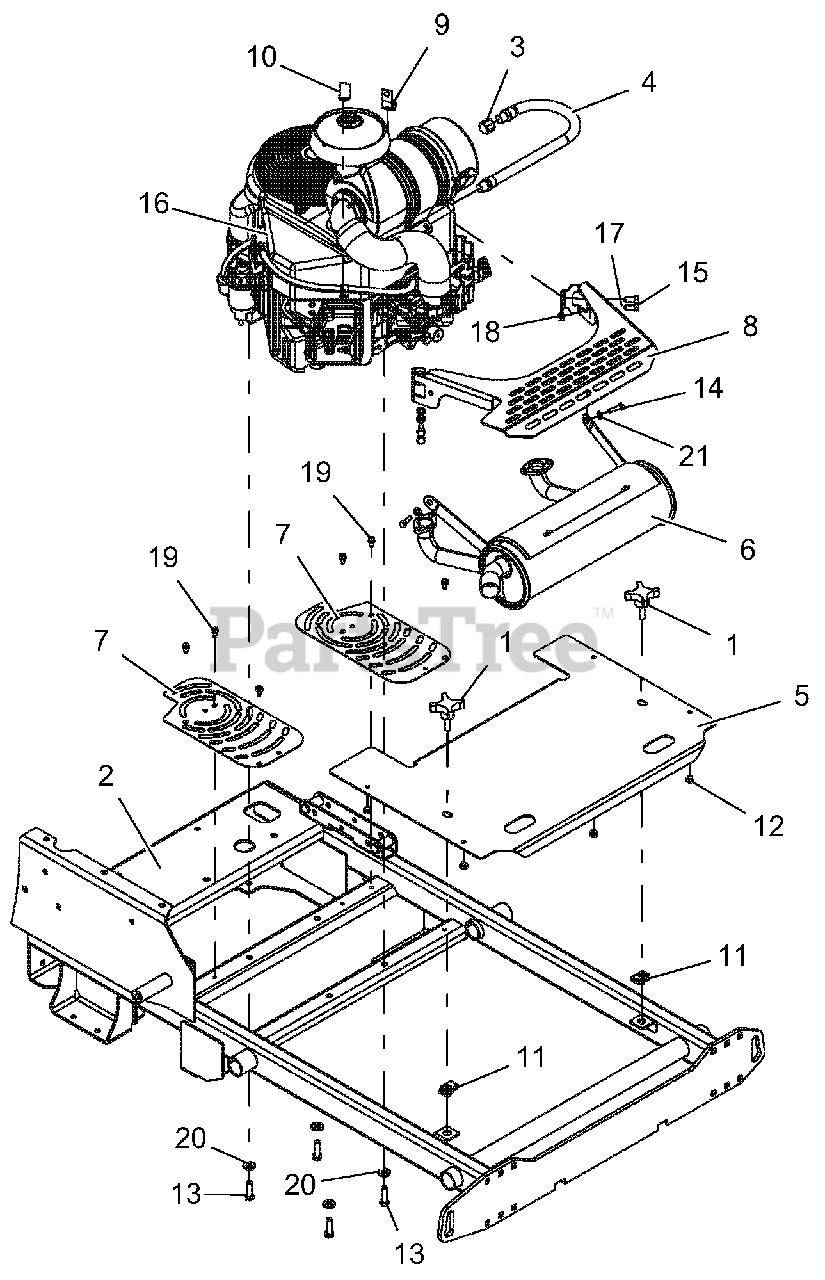

Engine And Frame Parts Diagram

  • Title
1

Gravely 03820400

KNOB, 3/8 X 1.25 - 4 PRONG

$10.99

$

Usually ships in 4-12 days

0

2

Gravely 04364753

WLDMT, FRAME PROSTANCE

$1022.99

$

Usually ships in 4-12 days

0

3

Gravely 03873200

PIPE, CAP 3/8 NPT FEMALE

$12.99

$

Usually ships in 4-12 days

0

4

Gravely 04271700

DRAIN, M20 OIL

$34.99

$

Usually ships in 4-12 days

0

5

Gravely 04416353

SHIELD, FRONT PRO-STANCE-RED

$120.99

$

Usually ships in 4-12 days

0

6

Gravely 04420400

EXHAUST, KAWASAKI PROSTANCE

$270.99

$

Usually ships in 4-12 days

0

7

Gravely 04499753

GUARD, FAN

$32.99

$

Usually ships in 4-12 days

0

8

Gravely 04676751

SHIELD, MUFFLER-BLACK
(Superseded to 09658251)

$66.99

$

Usually ships in 4-12 days

0

9

$2.49

$

Usually ships in 4-12 days

0

10

Gravely 06917900

CLAMP, CUSHIONED STEEL REV

$14.99

$

Usually ships in 4-12 days

0

11

Gravely 07053300

NUT, RTNR .375-16X.37

$3.99

$

In Stock, only 4 left!

0

12

Gravely 07503100

BUMPER GROMMET .125 X .25 REV

$3.49

$

In Stock, only 3 left!

0

13

Gravely 05901522

BLT-HEX .38-16X1.25 GR5 YWZC NYTORQ
(Superseded to 05901808)

$1.99

$

In Stock, Qty 11

0

14

Gravely 05947700

BLT-HEX .25-20X1.00 GR5 YWZC
(Superseded to 05901639)

$1.49

$

In Stock, Qty 9

0

15

Gravely 05973300

@BLT-HEX M8-1.25X20 YWZC
(Superseded to 05901628)

$

$

Not available

16

Gravely 08200721

ENGINE, KAWASAKI FX691

$

$

Not available

17

Gravely 06308600

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 06500012

NUT-LK-NYL-FLG .25-20 YWZC
(Superseded to 06500813)

$1.49

$

In Stock, Qty 15

0

19

Gravely 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

20

Gravely 06400927

WSHR, 3/8" SPRING DISC

$3.49

$

In Stock, only 2 left!

0

21

Gravely 06437300

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0
