994127 - Gravely Pro-Stance 48" Stand-On Mower, CARB (SN: 040000 - 040999) Deck Lift - Right Arm And Lever Parts Diagram

Pro-Stance 48" Stand-On Mower, CARB

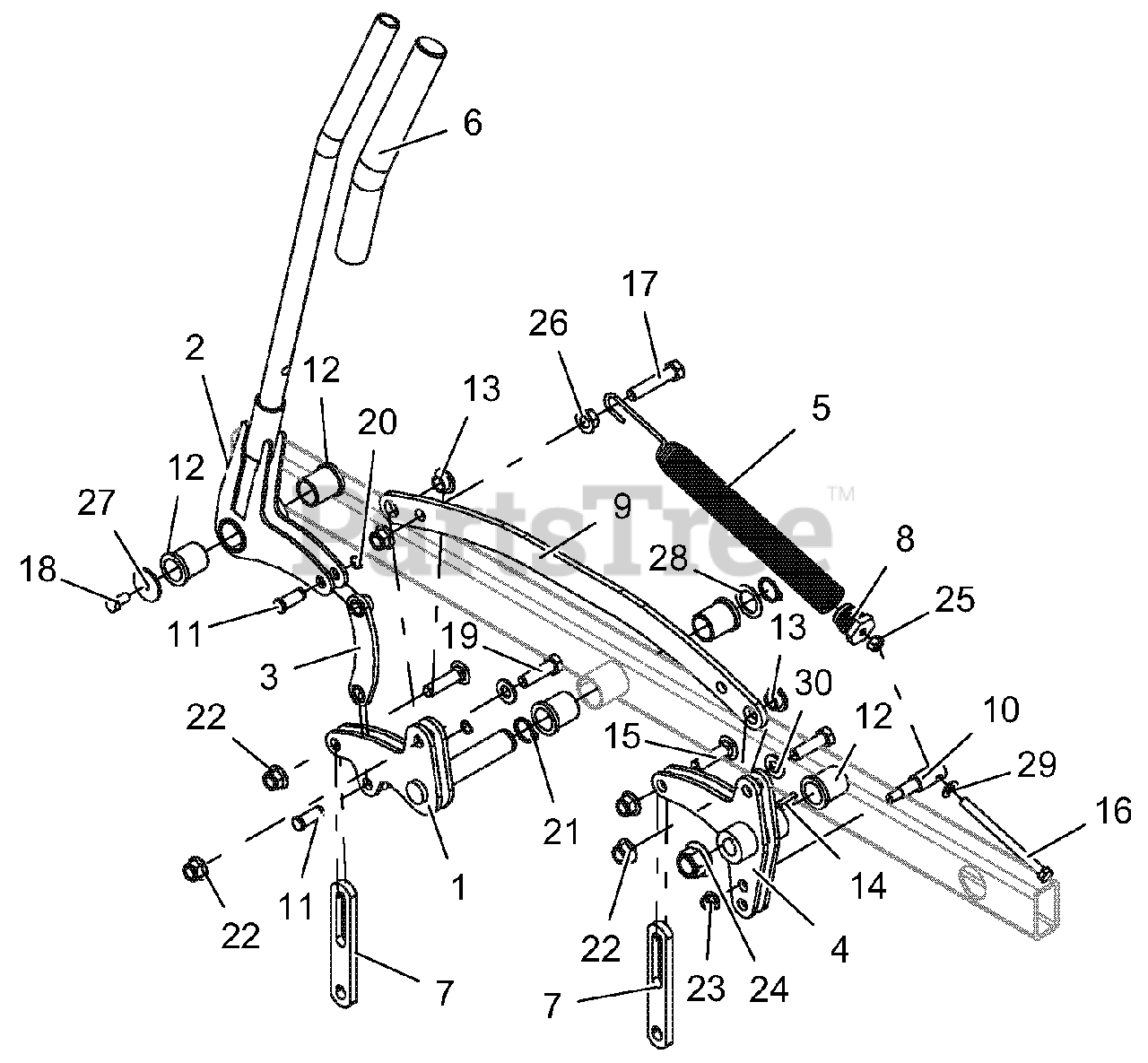

Deck Lift - Right Arm And Lever Parts Diagram

  • Title

1

Gravely 04372400

WLDMT, DECK LIFT PROSTANCE

$116.99

$

Usually ships in 4-12 days

0

2

Gravely 04813853

WLDMT, HAND LEVER

$170.99

$

Usually ships in 4-12 days

0

3

Gravely 04421353

WLDMT, DECK LIFT LINK
(Superseded to 04421351)

$56.99

$

Usually ships in 4-12 days

0

4

Gravely 04721867

WLDMT, TAPERED HUB PROSTANCE (BLACK)

Note: (BLACK)

$

$

Not available

5

Gravely 08300624

SPRG, DECK LIFT

$13.99

$

In Stock, only 1 left!

0

6

Gravely 03929100

GRIP, HANDLEBAR

$14.99

$

In Stock, only 1 left!

0

7

Gravely 04732400

LINK, DECK LIFT - LONG

$17.99

$

Usually ships in 4-12 days

0

8

Gravely 04374200

PLUG, SPRG

$77.99

$

Usually ships in 4-12 days

0

9

Gravely 04415451

ARM, DECK LIFT

$62.99

$

Usually ships in 4-12 days

0

10

Gravely 04420300

TRUNION, DECK LIFT

$

$

Not available

11

Gravely 04536700

PIN, CLEVIS .500 SNAP RING

$5.99

$

Usually ships in 4-12 days

0

12

Gravely 05500934

BSHG-FLG 1.00X1.25X1.5X1.5

$6.99

$

In Stock, Qty 20+

0

13

Gravely 05501118

BSHG, FLANGE .515X.750X.420X1.12

$28.99

$

Usually ships in 4-12 days

0

14

Gravely 06608900

KEY, WDRF .25 X 1.00 HRD #15

$3.99

$

In Stock, Qty 18

0

15

Gravely 06200131

BLT-RDHDSQNK .50-13X2.00 G5 Y
(Superseded to 06200326)

$

$

Not available

16

Gravely 05957700

BLT-HEX .38-16X5.00 GR5 YWZC
(Superseded to 05901927)

$2.99

$

Usually ships in 4-12 days

0

17

Gravely 05966600

BLT-HEX .50-13X2.50 GR5 YWZC
(Superseded to 05901712)

$3.99

$

In Stock, only 3 left!

0

18

Gravely 05959400

BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 05970600

BLT-HEX .50-13X1.75 GR5 YWZC
(Superseded to 05901939)

$3.99

$

In Stock, only 2 left!

0

20

Gravely 05717100

RG-RTNG-EXT .500x.050

$2.49

$

In Stock, Qty 8

0

21

Gravely 05707300

RG-RTNG-EXT 1.00X.078

$2.99

$

In Stock, Qty 9

0

22

Gravely 06500010

NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$1.49

$

In Stock, Qty 20+

0

23

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

24

Gravely 06500717

NUT-LK-NYL-FLG .75-10 YWZC
(Superseded to 06500931)

$3.99

$

Usually ships in 4-12 days

0

25

Gravely 06529400

NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0

26

Gravely 06543300

NUT .50-13 WIZ FLANGE
(Superseded to 06500928)

$3.99

$

Usually ships in 4-12 days

0

27

Gravely 06443400

WSHR-FL-STL .380X1.50X.125 YWZC
(Superseded to 06401106)

$3.49

$

In Stock, Qty 10

0

28

Gravely 06436300

WSHR-FL-STL 1.010X1.505X.062 YWZC
(Superseded to 06401132)

$1.49

$

In Stock, Qty 20+

0

29

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

30

Gravely 06441900

WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0
