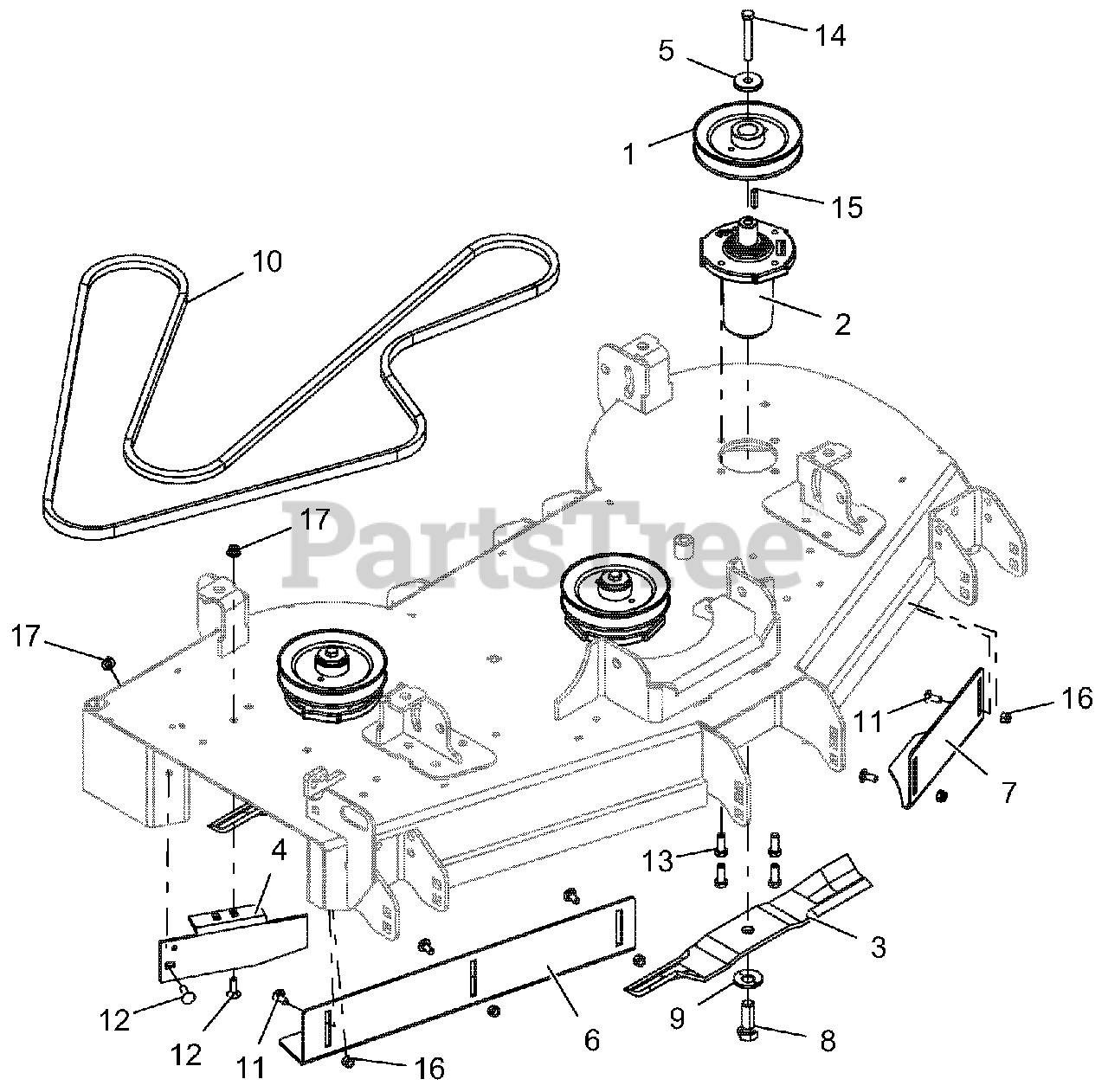

994126 - Gravely Pro-Stance 48" Stand-On Mower (SN: 040000 - 040999) Deck - Belt, Blades, Baffles, And Spindles Parts Diagram

Pro-Stance 48" Stand-On Mower

Deck - Belt, Blades, Baffles, And Spindles Parts Diagram

  • Title

1

Gravely 07343267

PULLEY, V-1.00 ID X 5.75 OD
(Superseded to 07343251)

$91.99

$

Usually ships in 4-12 days

0

2

Gravely 59215400

SERVICE, ASM SPINDLE- DUCTILE
(Superseded to 59225700)

$239.99

$

In Stock, Qty 20+

0

3

Gravely 00450200

BLADE, 16.19" MOWER (HI-LIFT)

Note: (HI-LIFT)

$29.99

$

In Stock, Qty 20+

0

4

Gravely 00451653

BAFFLE, 44-48" SIDE DISCHARGE

$41.99

$

Usually ships in 4-12 days

0

5

Gravely 04530500

RETAINER, SHEAVE SPINDLE

$7.99

$

In Stock, Qty 20+

0

6

Gravely 04550951

BAFFLE, 48" RH VACUUM
(Superseded to 05251551)

$54.99

$

Usually ships in 4-12 days

0

7

Gravely 04551051

BAFFLE, 44/48" LH VACUUM
(Superseded to 05251651)

$21.99

$

Usually ships in 4-12 days

0

8

Gravely 05978900

BLT, HEX .62-18X1.75 GR8 YWZC
(Superseded to 05901822)

$3.49

$

In Stock, Qty 20+

0

9

Gravely 06445700

WSHR, BLVL .63X1.625X.14

$4.99

$

In Stock, Qty 20+

0

10

Gravely 07200706

V-BELT, B SECTION RAW EDGE

$116.99

$

In Stock, only 1 left!

0

11

Gravely 06215700

BLT-RDHDSQNK .31-18X.75 G5 YWZC
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

12

Gravely 06216100

BLT-RDHDSQSHNK .31-18X1.00 G5 Y
(Superseded to 06200231)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 05900013

BLT-HEX .38-16X1.00 GR5 YWZC EP30
(Superseded to 05901721)

$1.99

$

In Stock, Qty 20+

0

14

Gravely 05963000

BLT-HEX .38-16X2.75 GR8 YWZC
(Superseded to 05901813)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 06611200

KEY-SQ .250X.250X1.00 RC 40-50

$2.99

$

In Stock, Qty 20+

0

16

Gravely 06530200

NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

17

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0
