994124 - Gravely Pro-Stance 60" Stand-On Mower, EFI (SN: 041000 & Above) Engine And Frame Parts Diagram

Pro-Stance 60" Stand-On Mower, EFI

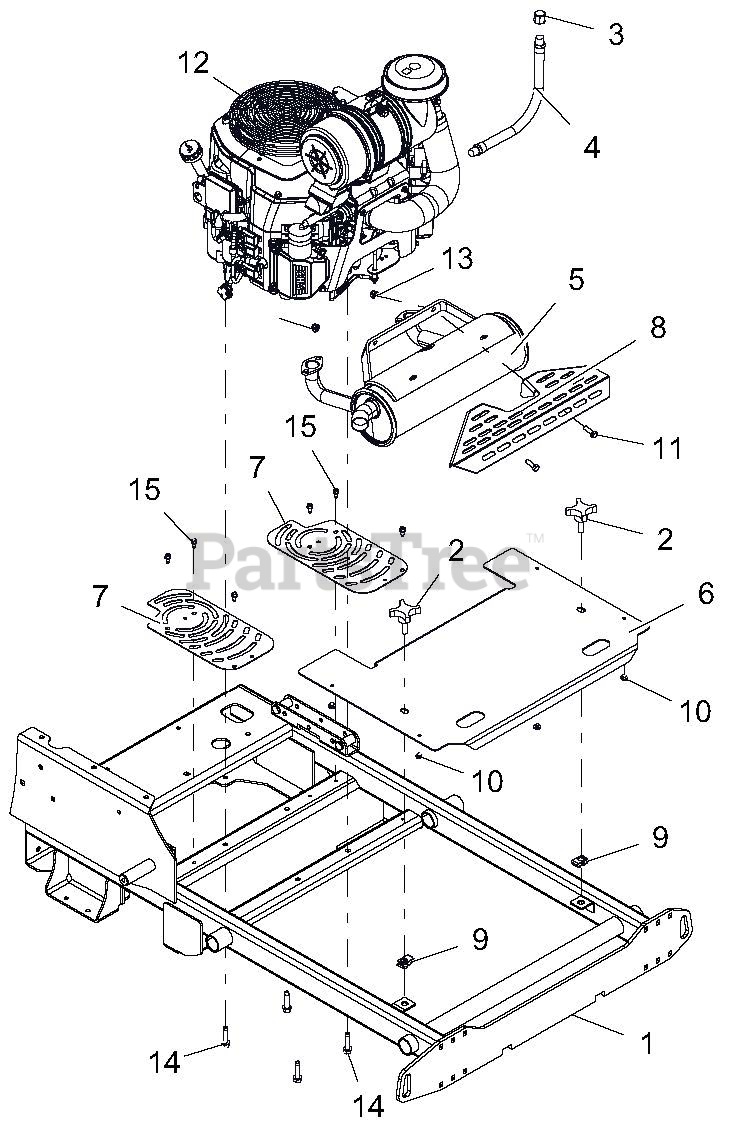

Engine And Frame Parts Diagram

  • Title

1

Gravely 04364753

WLDMT, FRAME PROSTANCE

$1022.99

$

Usually ships in 4-12 days

0

2

Gravely 03820400

KNOB, 3/8 X 1.25 - 4 PRONG

$10.99

$

Usually ships in 4-12 days

0

3

Gravely 03873200

PIPE, CAP 3/8 NPT FEMALE

$12.99

$

Usually ships in 4-12 days

0

4

Gravely 04058500

HOSE, HYD .38-11-OK M6N0-M6N0
(Superseded to 05155100)

$20.99

$

In Stock, only 1 left!

0

5

Gravely 04375100

MFLR, KOHLER

$200.99

$

Usually ships in 4-12 days

0

6

Gravely 04416353

SHIELD, FRONT PRO-STANCE

Note: RED

$120.99

$

Usually ships in 4-12 days

0

7

Gravely 04499753

GUARD, FAN

$32.99

$

Usually ships in 4-12 days

0

8

Gravely 04807651

GUARD, HEAT SHIELD

Note: (BLACK)

$70.99

$

Usually ships in 4-12 days

0

9

Gravely 07053300

NUT, RTNR .375-16X.37

$3.99

$

In Stock, only 4 left!

0

10

Gravely 07503100

BUMPER GROMMET .125 X .25 REV

$3.49

$

In Stock, only 3 left!

0

11

Gravely 05946900

BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 08201009

ENGINE, KOHLER EFI ECV740

$

$

Not available

13

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 07417400

SCR-TAP .38-16X1.50 HWH TR YZ
(Superseded to 07400203)

$3.99

$

Usually ships in 4-12 days

0

15

Gravely 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0
