994122 - Gravely Pro-Stance 52" Stand-On Mower, EFI Propane (SN: 040000 - 040999) Operator Controls - Choke And Parking Brake Parts Diagram

Pro-Stance 52" Stand-On Mower, EFI Propane

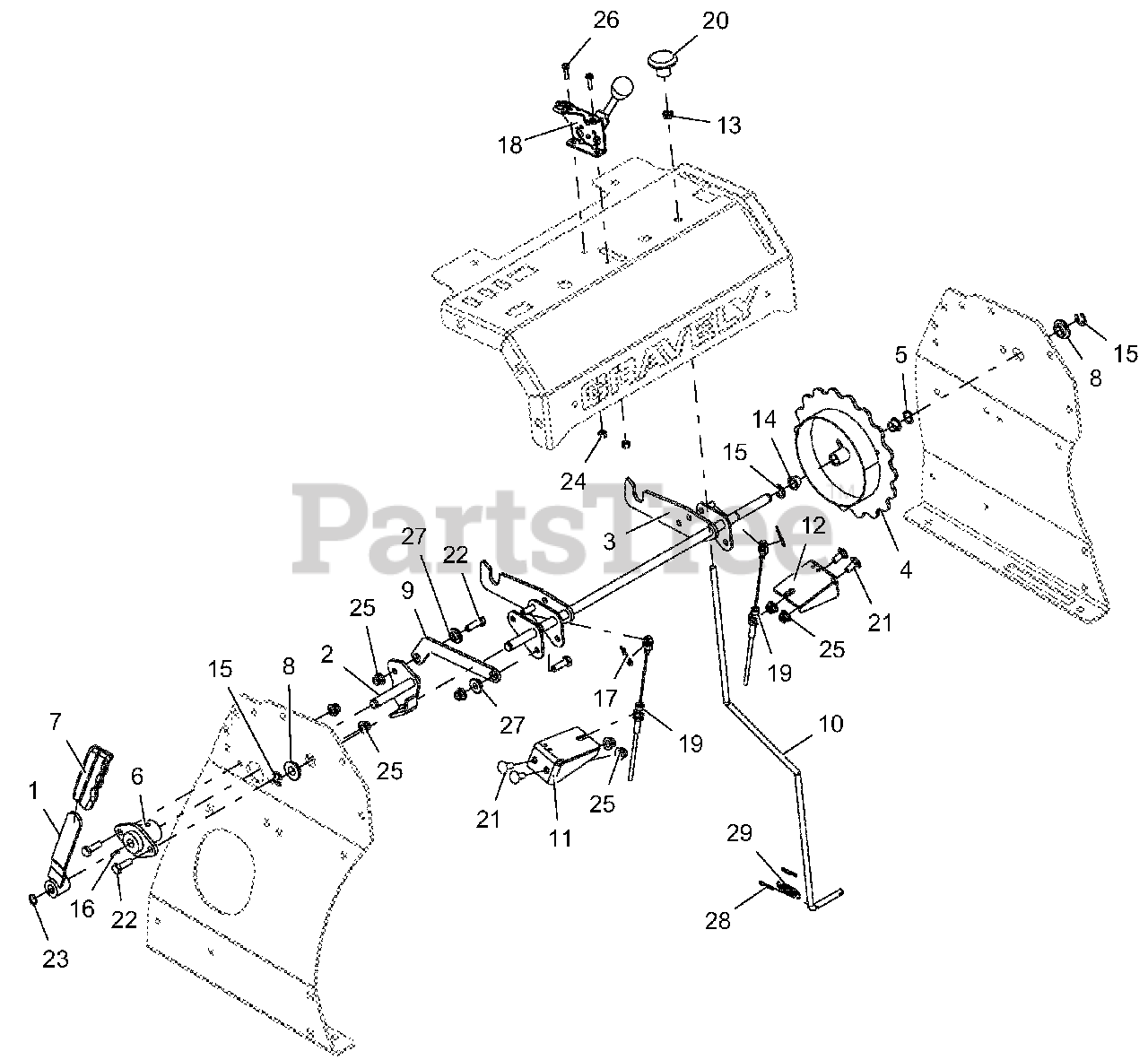

Operator Controls - Choke And Parking Brake Parts Diagram

  • Title

1

Gravely 04392900

WLDMT, PARKING BRAKE LEVER

$193.99

$

Usually ships in 4-12 days

0

2

Gravely 04412500

WLDMT, PARKING BRAKE ACTUATING

$293.99

$

Usually ships in 4-12 days

0

3

Gravely 04412800

WLDMT, BRAKE INTERLOCK

$75.99

$

Usually ships in 4-12 days

0

4

Gravely 59401600

WLDMT, HEIGHT OF CUT

$387.99

$

Usually ships in 4-12 days

0

5

Gravely 00325400

WAVE WASHER .531X.781X.125 FH

$0.99

$

In Stock, Qty 20+

0

6

Gravely 01522000

BSHG, FLANGE .500 ID

$34.99

$

In Stock, only 1 left!

0

7

Gravely 03826900

GRIP, PARKING BRAKE (YELLOW)

Note: (YELLOW)

$3.99

$

In Stock, only 1 left!

0

8

Gravely 03989100

BSHG, FLANGE .515X.750X.31X1.12

$3.49

$

In Stock, Qty 20+

0

9

Gravely 04412951

LINK, INTERLOCK

$

$

Not available

10

Gravely 04521200

WIREFORM, TRAILER LOCK

$31.99

$

Usually ships in 4-12 days

0

11

Gravely 04553151

BRKT, CABLE MTG.

$56.99

$

Usually ships in 4-12 days

0

12

Gravely 04576451

BRKT, LH CABLE MTG

$77.99

$

Usually ships in 4-12 days

0

13

Gravely 05500020

BSHG, POLYLINER-.38 SNAPIN

$2.99

$

In Stock, Qty 20+

0

14

Gravely 05500026

BUSHING, POLYLINER - .50 SPLIT

$2.99

$

In Stock, Qty 20+

0

15

Gravely 05710200

RG-RTNG-EXT .500X.042 (E)

Note: (E)

$0.99

$

In Stock, Qty 20+

0

16

Gravely 06608400

KEY, WDRF .13x.63 HRD#5 GM124545 P

$2.99

$

In Stock, only 3 left!

0

17

Gravely 06713500

PIN, HAIR INT .08X.18X1.18 YWZC
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 06900412

CABLE, PRO-CONTROL THROTTLE

$62.99

$

In Stock, only 1 left!

0

19

Gravely 06900522

CABLE, PROSTANCE P. BRAKE

$46.99

$

In Stock, only 1 left!

0

20

Gravely 07539900

KNOB, PUSH -PULL .312-18

$6.99

$

In Stock, only 1 left!

0

21

Gravely 06215700

BLT-RDHDSQNK .31-18X.75 G5 YWZC
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

22

Gravely 05946900

BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

23

Gravely 05717100

RG-RTNG-EXT .500x.050

$2.49

$

In Stock, Qty 8

0

24

Gravely 06536000

NUT-LK-NYL #10-24 YWZC
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

25

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

26

Gravely 06116900

@SCR-MCH 10-24X.75 HWH YWZC
(Superseded to 05901837)

$2.49

$

In Stock, Qty 15

0

27

Gravely 05514800

BSHG, FLG .32X.500.344X.880

$2.49

$

In Stock, only 3 left!

0

28

Gravely 06714800

PIN-HAIR, ENDRIES #25 YWZC
(Superseded to 06700223)

$0.99

$

In Stock, Qty 20+

0

29

Gravely 08310900

SPRG, EXTENSION

$5.99

$

In Stock, Qty 11

0
