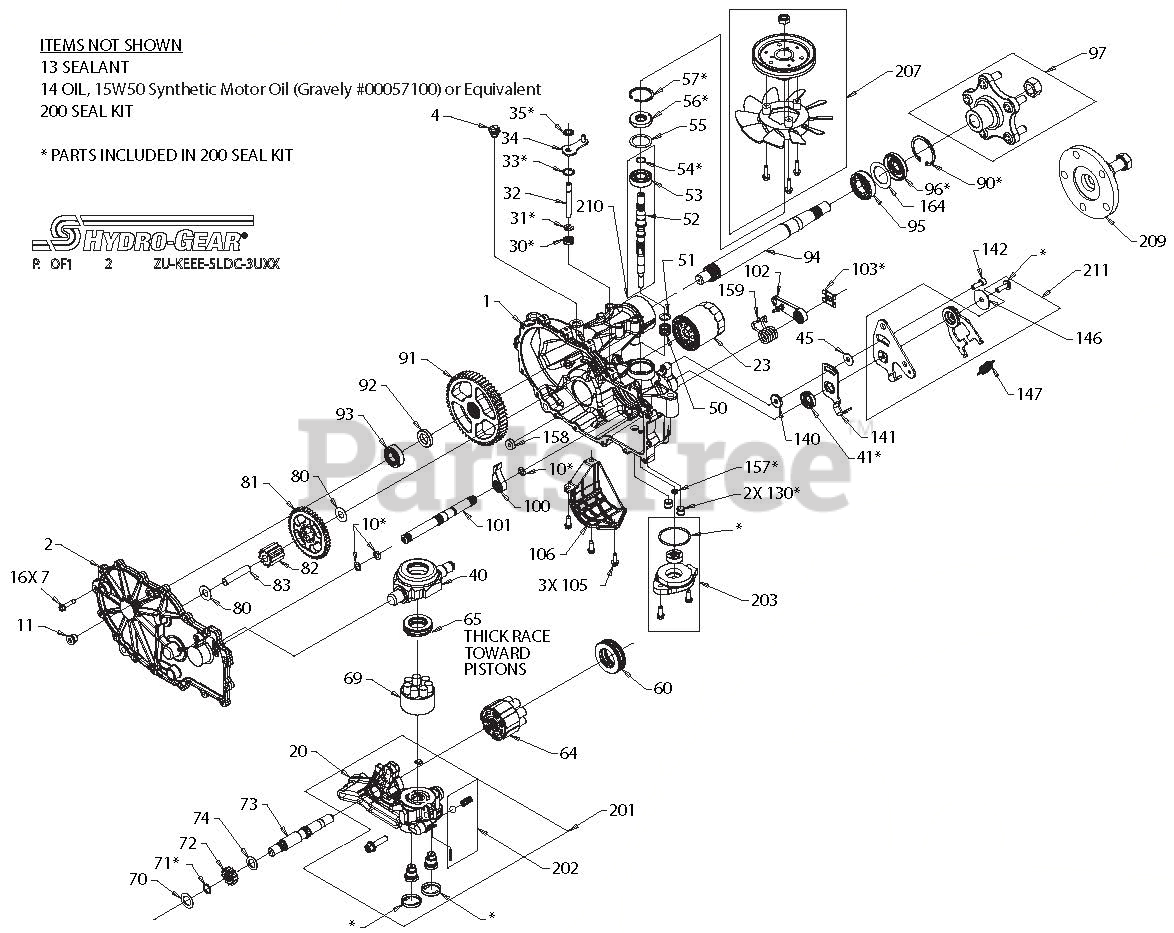

994121 - Gravely Pro-Stance 52" Stand-On Mower, Kohler (SN: 041000 & Above) Transmission - Left Hand Parts Diagram

Pro-Stance 52" Stand-On Mower, Kohler

Transmission - Left Hand Parts Diagram

  • Title

1

KIT, HOUSING, MAIN, LH, CHRG, CNTL

KIT, HOUSING, MAIN, LH, CHRG, CNTL

Note: Hydro-Gear p/n 72026

$

$

Not available

2

KIT, HOUSING, SIDE, LH

KIT, HOUSING, SIDE, LH

Note: Hydro-Gear p/n 71992

$

$

Not available

4

PLUG, 9/16-18

PLUG, 9/16-18

Note: (PLASTIC), Hydro-Gear p/n 9005200-5600

$

$

Not available

7

HFHCS 1/4-20 X 1.25

HFHCS 1/4-20 X 1.25

Note: Hydro-Gear p/n 53246

$

$

Not available

10

O-RING-111 .103 X .424

O-RING-111 .103 X .424

Note: Hydro-Gear p/n 51804

$

$

Not available

11

PLUG 9/16-18

PLUG 9/16-18

Note: (METAL), Hydro-Gear p/n 9005110-5600

$

$

Not available

13

Gravely 21543771

SEALANT

Note: Hydro-Gear p/n 50928

$116.99

$

In Stock, only 1 left!

0

14

OIL, 15W50 SYNTHETIC MOTOR OIL

OIL, 15W50 SYNTHETIC MOTOR OIL

Note: (GRAVELY #00057100) OR EQUIVALENT

$

$

Not available

23

Gravely 21545100

FILTER, OIL

Note: Hydro-Gear p/n 52114

$

$

Not available

30

Gravely 21543845

SEAL, LIP .375 X .75 X .25

Note: Hydro-Gear p/n 51626

$9.49

$

Usually ships in 4-12 days

0

31

Gravely 08622500

RING, RET .375 EXTERNAL

Note: Hydro-Gear p/n 51628

$4.49

$

In Stock, Qty 14

0

32

ROD, BYPASS

ROD, BYPASS

Note: Hydro-Gear p/n 52136

$

$

Not available

33

RING, RET .750 INTERNAL

RING, RET .750 INTERNAL

Note: Hydro-Gear p/n 51627

$

$

Not available

34

ARM, BYPASS

ARM, BYPASS

Note: Hydro-Gear p/n 52370

$

$

Not available

35

Gravely 21543848

RING, RTNG .375 EXT

Note: Hydro-Gear p/n 51630

$3.99

$

In Stock, only 1 left!

0

40

Gravely 21543783

TRUNNION, SWASHPLATE

Note: Hydro-Gear p/n 51048

$70.99

$

Usually ships in 4-12 days

0

41

Gravely 21543809

SEAL, LIP 18 X 32 X 7

Note: Hydro-Gear p/n 51140

$9.49

$

Usually ships in 4-12 days

0

45

WASHER .34 X .88 X .06

WASHER .34 X .88 X .06

Note: Hydro-Gear p/n 44130

$

$

Not available

50

SPRING, BLOCK

SPRING, BLOCK

Note: Hydro-Gear p/n 2003014

$

$

Not available

51

Gravely 08609400

WASHER-FLAT .59 x .79 x .04

Note: Hydro-Gear p/n 2003017

$1.99

$

In Stock, only 1 left!

0

55

Gravely 21543773

WASHER 1.23 X 1.56 X .04

Note: Hydro-Gear p/n 50951

$5.99

$

In Stock, only 2 left!

0

56

Gravely 21543816

SEAL, LIP 17 X 40 X 7

Note: Hydro-Gear p/n 51161

$14.99

$

Usually ships in 4-12 days

0

57

Gravely 21543741

RING, RET 2.06 INT

Note: Hydro-Gear p/n 50329

$6.99

$

Usually ships in 4-12 days

0

60

BEARING, THRUST

BEARING, THRUST

Note: Hydro-Gear p/n 51462

$

$

Not available

64

ASS'Y, CYLINDER BLOCK, 16cc

ASS'Y, CYLINDER BLOCK, 16cc

Note: Hydro-Gear p/n 71579

$

$

Not available

65

BRG, THRUST BALL 30 X 52 X 13

BRG, THRUST BALL 30 X 52 X 13

Note: Hydro-Gear p/n 53502

$

$

Not available

69

ASS'Y, BLOCK, 7 PISTON

ASS'Y, BLOCK, 7 PISTON

Note: Hydro-Gear p/n 71971

$

$

Not available

70

WASHER .63 X 1.00 X .05

WASHER .63 X 1.00 X .05

Note: Hydro-Gear p/n 44371

$

$

Not available

71

RING, RET .62 EXT

RING, RET .62 EXT

Note: Hydro-Gear p/n 44145

$

$

Not available

72

GEAR, 13T, STEEL

GEAR, 13T, STEEL

Note: Hydro-Gear p/n 52342

$

$

Not available

73

SHAFT, MOTOR

SHAFT, MOTOR

Note: Hydro-Gear p/n 52150

$

$

Not available

74

WASHER .72 X 1.16 X .04

WASHER .72 X 1.16 X .04

Note: Hydro-Gear p/n 51069

$

$

Not available

80

Gravely 21543724

WASHER .5 X 1.0 X .03

Note: Hydro-Gear p/n 50132

$

$

Not available

81

GEAR, 46T

GEAR, 46T

Note: Hydro-Gear p/n 52343

$

$

Not available

82

GEAR, 11T, STEEL

GEAR, 11T, STEEL

Note: Hydro-Gear p/n 52586

$

$

Not available

83

JACK SHAFT

JACK SHAFT

Note: (PIN), Hydro-Gear p/n 51083

$

$

Not available

90

RING, RET 2.06 INT

RING, RET 2.06 INT

Note: Hydro-Gear p/n 50859

$

$

Not available

91

GEAR, 54T

GEAR, 54T

Note: Hydro-Gear p/n 52108

$

$

Not available

92

SPACER .75 x 1.32 x .257

SPACER .75 x 1.32 x .257

Note: Hydro-Gear p/n 53336

$

$

Not available

93

BEARING, BALL .75 X 40 X 12

BEARING, BALL .75 X 40 X 12

Note: Hydro-Gear p/n 53071

$

$

Not available

94

SHAFT, AXLE

SHAFT, AXLE

Note: Hydro-Gear p/n 53528

$

$

Not available

95

Gravely 08614000

BRG, BALL 1.0 x .52 x .15 OPEN 6205M

Note: Hydro-Gear p/n 53656

$23.99

$

Usually ships in 4-12 days

0

96

Gravely 08614300

SEAL, LIP TC4 1.0 x 2.06 x .38

Note: Hydro-Gear p/n 53699

$16.99

$

In Stock, only 1 left!

0

97

KIT, HUB, 5 BOLT

KIT, HUB, 5 BOLT

Note: Hydro-Gear p/n 71691

$

$

Not available

100

PAWL, BRAKE

PAWL, BRAKE

Note: Hydro-Gear p/n 52766

$

$

Not available

101

SHAFT, BRAKE

SHAFT, BRAKE

Note: Hydro-Gear p/n 53539

$

$

Not available

102

KIT, HANDLE ACTUATING

KIT, HANDLE ACTUATING

Note: Hydro-Gear p/n 71958

$

$

Not available

103

CLIP, RETAINING

CLIP, RETAINING

Note: Hydro-Gear p/n 52027

$

$

Not available

105

SCREW, HEX FLANGE 1/4-2

SCREW, HEX FLANGE 1/4-2

Note: Hydro-Gear p/n 50752

$

$

Not available

106

GUARD, FILTER, LH

GUARD, FILTER, LH

Note: Hydro-Gear p/n 53644

$

$

Not available

130

TUBE, CONNECTING

TUBE, CONNECTING

Note: Hydro-Gear p/n 52157

$

$

Not available

140

SPACER .320 x 1.005 x .179

SPACER .320 x 1.005 x .179

Note: Hydro-Gear p/n 52527

$

$

Not available

141

ARM, NEUTRAL LEFT

ARM, NEUTRAL LEFT

Note: Hydro-Gear p/n 51946

$

$

Not available

142

SHCS 5/16-24 x 1.00

SHCS 5/16-24 x 1.00

Note: (PATCH), Hydro-Gear p/n 51616

$

$

Not available

146

Gravely 21543871

WASHER, .343 x 1.500 x .062

Note: Hydro-Gear p/n 51950

$6.49

$

Usually ships in 4-12 days

0

147

Gravely 21544001

SPRING, EXTENSION RTN-34LBS

Note: Hydro-Gear p/n 51833

$

$

Not available

157

Gravely 21544001

SEAL, LIP .281 x .420 x .16

Note: Hydro-Gear p/n 53696

$

$

Not available

158

MAGNET, RING

MAGNET, RING

Note: Hydro-Gear p/n 51100

$

$

Not available

159

SPRING, TORSION CW

SPRING, TORSION CW

Note: Hydro-Gear p/n 53483

$

$

Not available

164

SPACER, 1.719 x 2.039 x .021

SPACER, 1.719 x 2.039 x .021

Note: Hydro-Gear p/n 53514

$

$

Not available

200

KIT, SEAL

KIT, SEAL

Note: Hydro-Gear p/n 71976

$

$

Not available

201

KIT, CENTER SECTION, LH, CHRG

KIT, CENTER SECTION, LH, CHRG

Note: Hydro-Gear p/n 71973

$

$

Not available

202

KIT, CHARGE RELIEF

KIT, CHARGE RELIEF

Note: Hydro-Gear p/n 71436

$

$

Not available

203

KIT, CHARGE PUMP

KIT, CHARGE PUMP

Note: Hydro-Gear p/n 71977

$

$

Not available

207

KIT, FAN & PULLEY

KIT, FAN & PULLEY

Note: Hydro-Gear p/n 71900

$

$

Not available

209

HUB PULLER, 5 BOLT

HUB PULLER, 5 BOLT

Note: Hydro-Gear p/n 71784

$

$

Not available

210

KIT, INPUT SHAFT

KIT, INPUT SHAFT

Note: Hydro-Gear p/n 71978

$

$

Not available

211

KIT, RTN, BIDIRECTIONAL

KIT, RTN, BIDIRECTIONAL

Note: Hydro-Gear p/n 71592

$

$

Not available
