994120 - Gravely Pro-Stance 36" Stand-On Mower, Kawasaki FS, CARB (SN: 000101 - 039999) Engine And Frame Parts Diagram

Pro-Stance 36" Stand-On Mower, Kawasaki FS, CARB

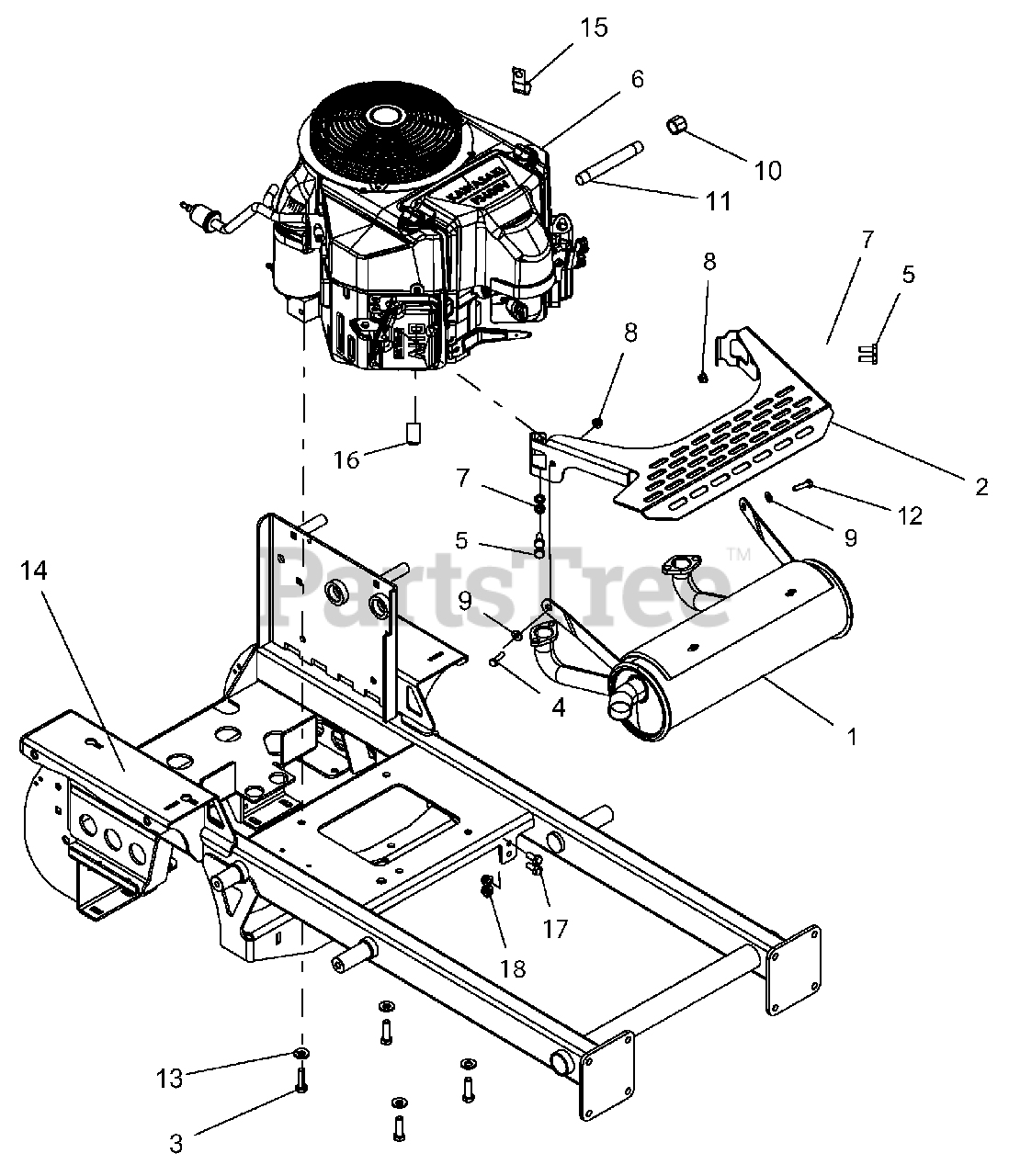

Engine And Frame Parts Diagram

  • Title

1

Gravely 04375200

EXHAUST, KAWASAKI FS

$262.99

$

In Stock, only 1 left!

0

2

Gravely 04676751

SHIELD, MUFFLER-BLACK
(Superseded to 09658251)

$66.99

$

Usually ships in 4-12 days

0

3

Gravely 05901522

BLT-HEX .38-16X1.25 GR5 YWZC NYTORQ
(Superseded to 05901808)

$1.99

$

In Stock, Qty 11

0

4

Gravely 05947700

BLT-HEX .25-20X1.00 GR5 YWZC
(Superseded to 05901639)

$1.49

$

In Stock, Qty 9

0

5

Gravely 05973300

@BLT-HEX M8-1.25X20 YWZC
(Superseded to 05901628)

$1.49

$

Usually ships in 4-12 days

0

6

Gravely 08200921

ENGINE, KAWASAKI FS600

$

$

Not available

7

Gravely 06308600

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

8

Gravely 06500012

NUT-LK-NYL-FLG .25-20 YWZC
(Superseded to 06500813)

$1.49

$

In Stock, Qty 15

0

9

Gravely 06437300

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

10

Gravely 03873200

PIPE, CAP 3/8 NPT FEMALE

$12.99

$

Usually ships in 4-12 days

0

11

Gravely 04720800

PIPE, .375" NPT X 5"

$9.99

$

Usually ships in 4-12 days

0

12

Gravely 05947700

BLT-HEX .25-20X1.00 GR5 YWZC
(Superseded to 05901639)

$1.49

$

In Stock, Qty 9

0

13

Gravely 06400927

WSHR, 3/8" SPRING DISC

$3.49

$

In Stock, only 2 left!

0

14

Gravely 04593353

WLDMT, FRAME PROSTANCE

$1612.99

$

Usually ships in 4-12 days

0

15

Gravely 06916000

J-CLAMP

$2.49

$

Usually ships in 4-12 days

0

16

Gravely 06917900

CLAMP, CUSHIONED STEEL REV

$14.99

$

Usually ships in 4-12 days

0

17

Gravely 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0
