994120 - Gravely Pro-Stance 36" Stand-On Mower, Kawasaki FS, CARB (SN: 000101 - 039999) Deck, Belt, Blades And Spindles Parts Diagram

Pro-Stance 36" Stand-On Mower, Kawasaki FS, CARB

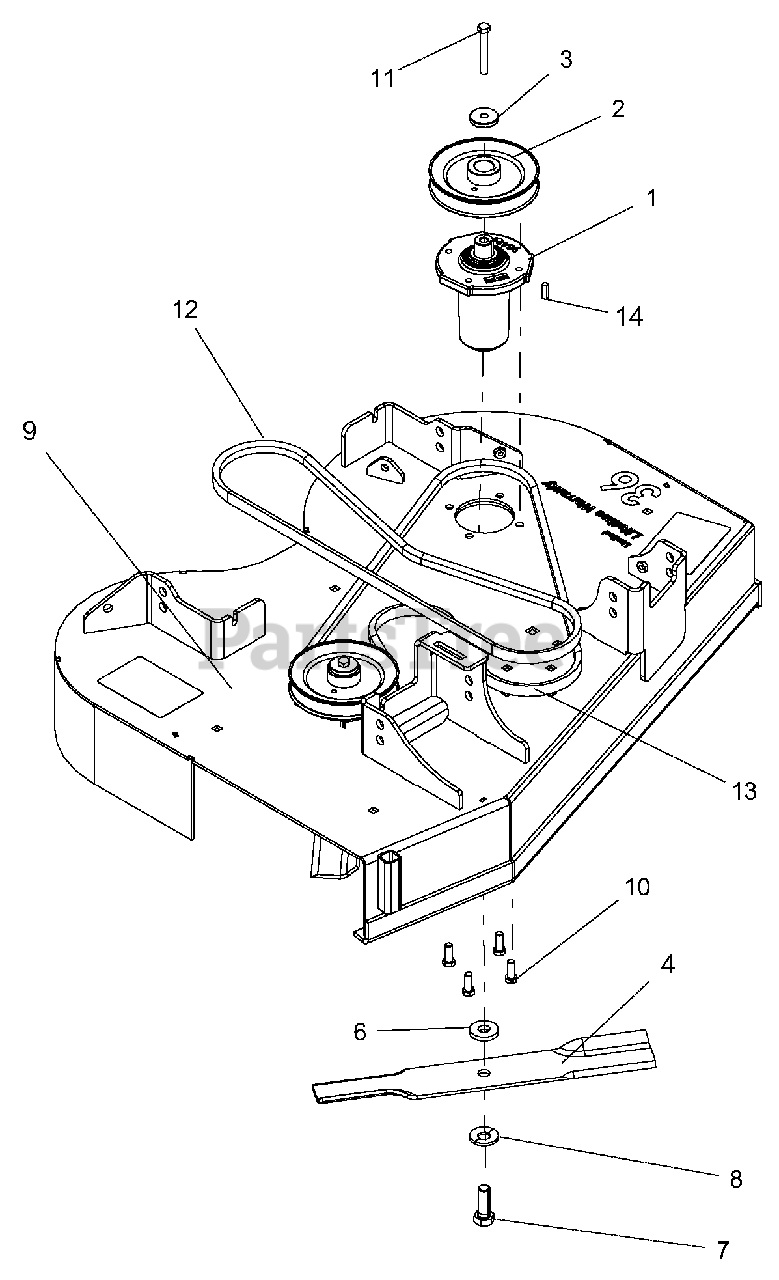

Deck, Belt, Blades And Spindles Parts Diagram

  • Title

1

Gravely 59215500

SERVICE, ASM PINDLE- MAINT FREE (SHORT)
(Superseded to 59114000)

Note: (SHORT)

$262.99

$

Usually ships in 4-12 days

0

2

Gravely 07337267

PULLEY, V-1" ID X 5.75" OD

$68.99

$

In Stock, only 2 left!

0

3

Gravely 04530500

RETAINER, SHEAVE SPINDLE

$7.99

$

In Stock, Qty 20+

0

4

Gravely GDU10231

BLADE, 18.000 X .80 LIFT

$30.99

$

In Stock, Qty 20+

0

6

Gravely 06400913

WSHR-FL-STL .630X1.50X.25 YWZC
(Superseded to 06401033)

$6.99

$

In Stock, only 1 left!

0

7

Gravely 05978900

BLT, HEX .62-18X1.75 GR8 YWZC
(Superseded to 05901822)

$3.49

$

In Stock, Qty 20+

0

8

Gravely 06445700

WSHR, BLVL .63X1.625X.14

$4.99

$

In Stock, Qty 9

0

9

Gravely 58809900

ASM, 36" DECK W/DECALS

$

$

Not available

10

Gravely 05900013

BLT-HEX .38-16X1.00 GR5 YWZC EP30
(Superseded to 05901721)

$1.99

$

In Stock, Qty 20+

0

11

Gravely 05963000

BLT-HEX .38-16X2.75 GR8 YWZC
(Superseded to 05901813)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 07200639

V-Belt, 5L-RAW EDGE

$51.99

$

In Stock, Qty 13

0

13

Gravely 07200640

V-BELT, 5L SECTION

$64.99

$

In Stock, only 2 left!

0

14

Gravely 06600218

KEY-SQ .250X.250X.875 RC 40-50

$7.99

$

Usually ships in 4-12 days

0
