994120 - Gravely Pro-Stance 36" Stand-On Mower, Kawasaki FS, CARB (SN: 000101 - 039999) Controls And Steering Parts Diagram

Pro-Stance 36" Stand-On Mower, Kawasaki FS, CARB

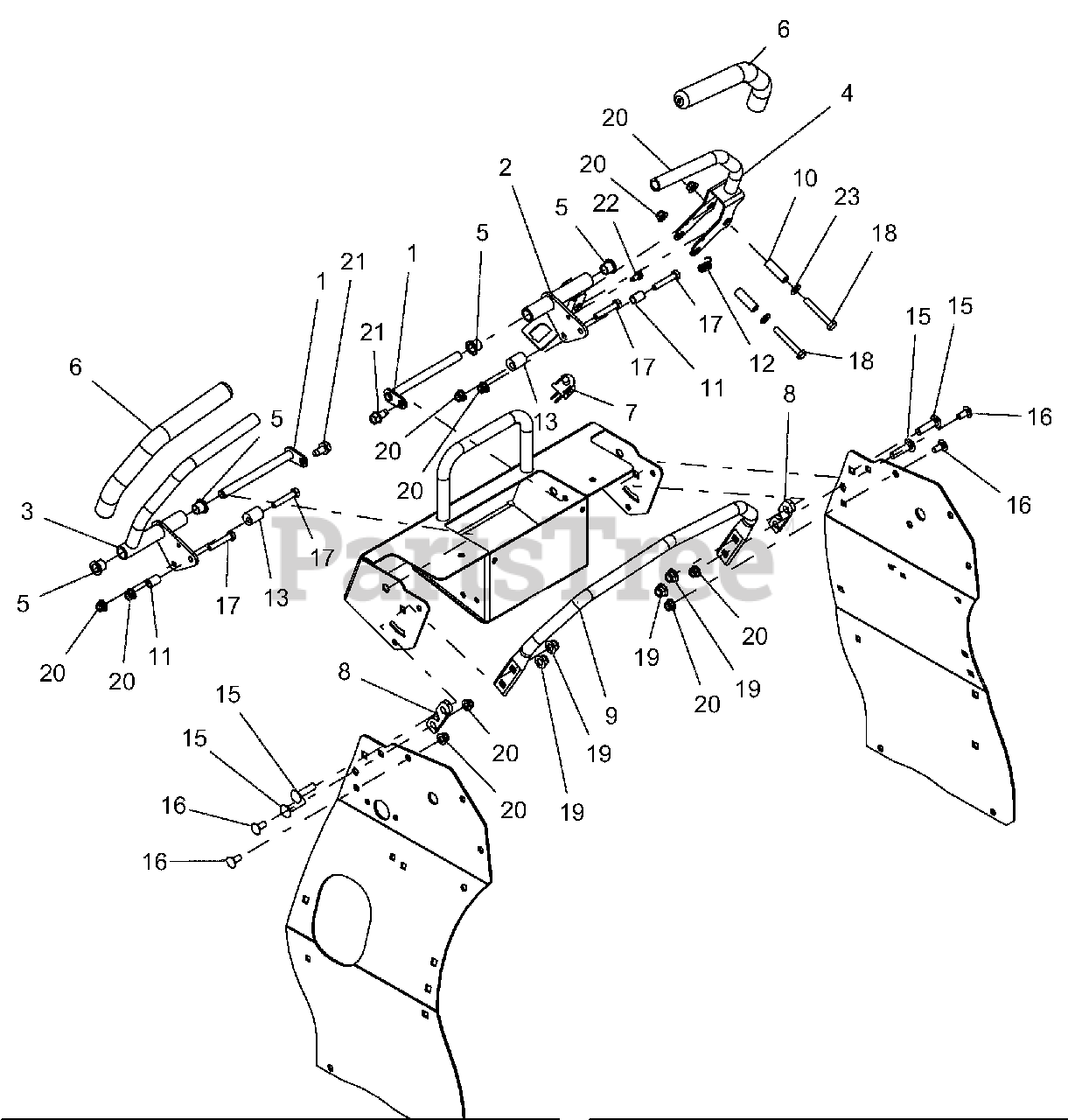

Controls And Steering Parts Diagram

  • Title
1

Gravely 00203893

WLDT, PIN AND LOCK

$34.99

$

Usually ships in 4-12 days

0

2

Gravely 04458751

WLDMT, CONTROL MOUNT (LH)-BLACK

Note: (LH)-BLACK

$96.99

$

Usually ships in 4-12 days

0

3

Gravely 04458851

WLDMT, CONTROL ARM (RH)

Note: (RH)

$95.99

$

Usually ships in 4-12 days

0

4

Gravely 04389851

CONTROL, ARM , LH

$77.99

$

Usually ships in 4-12 days

0

5

Gravely 00200116

BRG, FLG .500 X .620 X .500 BRNZ

$5.99

$

Usually ships in 4-12 days

0

6

Gravely 00675200

GRIP, HANDLEBAR REV

$9.49

$

In Stock, only 1 left!

0

7

Gravely 02754100

SWITCH, SEAT OVERIDE (N.O.)

Note: (N.O.)

$9.49

$

In Stock, Qty 20+

0

8

Gravely 03976751

SHIM, BAR 5 DEG SPEED-BLACK

$

$

Not available

9

Gravely 04389753

STOP, FORWARD STEERING

$129.99

$

Usually ships in 4-12 days

0

10

Gravely 05501110

BSHG, SLV .33X.50X1.56

$9.99

$

Usually ships in 4-12 days

0

11

Gravely 05531500

BSHG-SLV .328X.50X.75

$13.99

$

Usually ships in 4-12 days

0

12

Gravely 08300036

SPRG, EXTENSION

$2.49

$

In Stock, only 2 left!

0

13

Gravely 09235700

ECCENTRIC

$4.99

$

Usually ships in 4-12 days

0

15

Gravely 06224200

BLT-RDHDSQNK .38-16X1.50 G5 Y
(Superseded to 06200416)

$3.99

$

In Stock, only 2 left!

0

16

Gravely 06215700

BLT-RDHDSQNK .31-18X.75 G5 YWZC
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

17

Gravely 05957400

BLT-HEX .31-18X1.75 GR5 YWZC
(Superseded to 05901804)

$2.99

$

In Stock, Qty 8

0

18

Gravely 05963700

BLT-HEX .31-18X2.25 GR5 YWZC
(Superseded to 05901806)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

21

Gravely 07415400

SCR-TAP .38-16X.75 HWH TR YWZ
(Superseded to 07400129)

$1.49

$

In Stock, Qty 20+

0

22

Gravely 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

23

Gravely 06437200

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0
