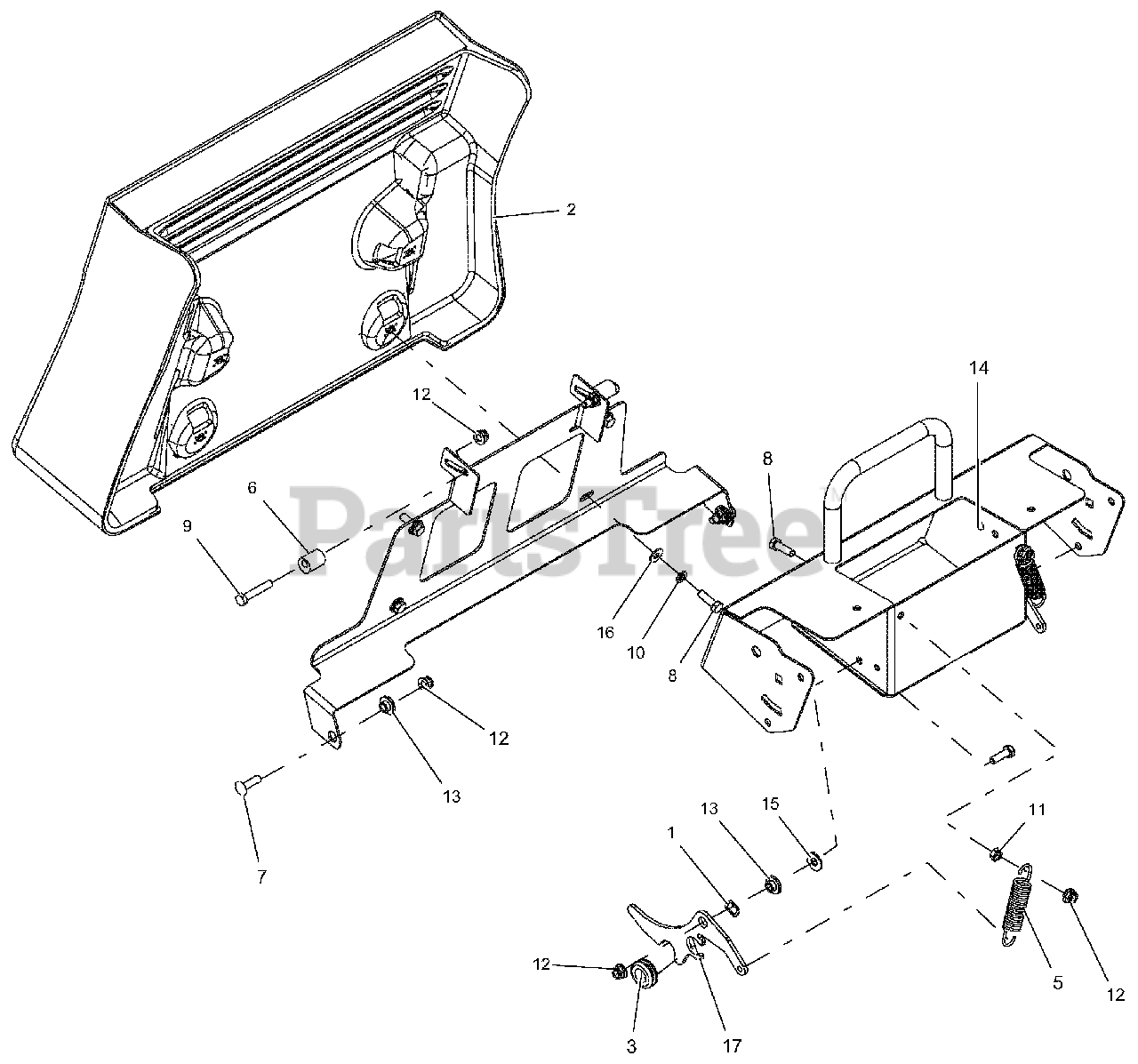

994119 - Gravely Pro-Stance 36" Stand-On Mower, Kawasaki FS (SN: 040000 & Above) Operator Pad And Latch Parts Diagram

Pro-Stance 36" Stand-On Mower, Kawasaki FS

Operator Pad And Latch Parts Diagram

  • Title

1

Gravely 00325400

WAVE WASHER .531X.781X.125 FH

$0.99

$

In Stock, Qty 20+

0

2

Gravely 04389200

PAD, PROSTANCE

$217.99

$

Usually ships in 4-12 days

0

3

Gravely 04814300

GROMMET, SPLIT RUBBER

$

$

Not available

5

Gravely 08311700

SPRG, EXTENSION

$7.99

$

In Stock, only 1 left!

0

6

Gravely 09235700

ECCENTRIC

$4.99

$

Usually ships in 4-12 days

0

7

Gravely 06200124

BLT-RDHDSQSHNK .31-18X1.125 G5YWZC
(Superseded to 06200334)

$

$

Not available

8

Gravely 05946900

BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 05957400

BLT-HEX .31-18X1.75 GR5 YWZC
(Superseded to 05901804)

$2.99

$

In Stock, Qty 8

0

10

Gravely 06308600

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 06500011

@ NUT-LK-CTR-JAM .31-18 YWZ C
(Superseded to 06500913)

$0.99

$

In Stock, Qty 5

0

12

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 05514800

BSHG, FLG .32X.500.344X.880

$2.49

$

In Stock, only 3 left!

0

14

Gravely 04723853

WLDMT, CONTROL PANEL, PRO-STANCE

$232.99

$

Usually ships in 4-12 days

0

15

Gravely 06435700

WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 06435800

WSHR-FL-STL.312X.734X.065 YW Z
(Superseded to 06401124)

$0.99

$

In Stock, Qty 20+

0

17

Gravely 04786600

LATCH, PAD MOUNT

$16.99

$

Usually ships in 4-12 days

0
