994119 - Gravely Pro-Stance 36" Stand-On Mower, Kawasaki FS (SN: 040000 & Above) Idlers, Sheaves And Mount Parts Diagram

Pro-Stance 36" Stand-On Mower, Kawasaki FS

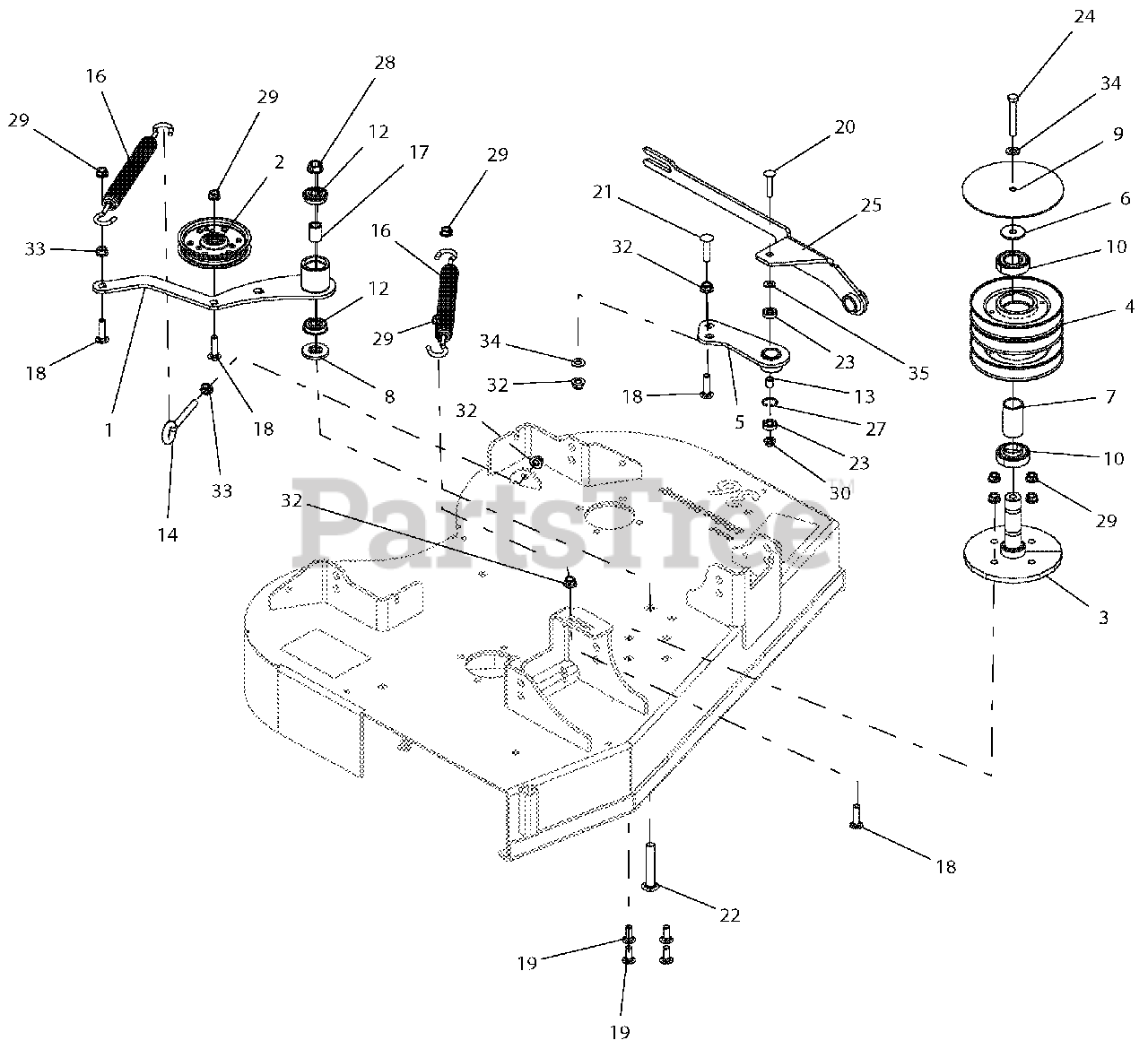

Idlers, Sheaves And Mount Parts Diagram

  • Title

1

Gravely 04650551

WLDMT, IDLER DECK DRIVE

$56.99

$

Usually ships in 4-12 days

0

2

Gravely 07300101

ASM, IDLER 4"

$62.99

$

In Stock, Qty 20+

0

3

Gravely 04655251

WLDMT, JACKSHAFT BASE

$219.99

$

In Stock, only 1 left!

0

4

Gravely 07341067

WLDMT, JACKSHAFT HOUSING

$232.99

$

In Stock, only 1 left!

0

5

Gravely 04635951

WLDMT, IDLER ARM

$75.99

$

Usually ships in 4-12 days

0

6

Gravely 04656000

RETAINER, JACKSHAFT SPINDLE

$14.99

$

Usually ships in 4-12 days

0

7

Gravely 04694500

SPCR, BRG SPINDLE

$34.99

$

In Stock, only 1 left!

0

8

Gravely 04714600

SPACER, IDLER ARM

$5.99

$

In Stock, Qty 20+

0

9

Gravely 04720051

PLATE, JACKSHAFT COVER-BLACK

$27.99

$

Usually ships in 4-12 days

0

10

Gravely 05434700

BRG., RG 1.00 X 2.0467 X .591
(Superseded to 05400730)

$19.99

$

In Stock, only 2 left!

0

12

Gravely 05480000

BRG, BALL .501 X 1.38 X .438 SEALED

$13.99

$

In Stock, Qty 20+

0

13

Gravely 05501113

BSHG, SLV .330X.455X.550

$7.99

$

Usually ships in 4-12 days

0

14

Gravely 07001701

BOLT, EYE .38-16X4.50 .75 DIA

$12.99

$

Usually ships in 4-12 days

0

16

Gravely 08300505

SPRG, EXTENSION

$25.99

$

In Stock, Qty 20+

0

17

Gravely 09357700

SPACER, .510 X .750 X 1.148

$4.99

$

In Stock, Qty 7

0

18

Gravely 06224200

BLT-RDHDSQNK .38-16X1.50 G5 Y
(Superseded to 06200416)

$3.99

$

In Stock, only 2 left!

0

19

Gravely 06223600

BLT-RDHDSQNK .38-16X1.00 G5 YWZC
(Superseded to 06200313)

$2.49

$

In Stock, Qty 10

0

20

Gravely 06220200

BLT-RDHDSQNK .31-18X1.75 G5 YWZC
(Superseded to 06200324)

$2.99

$

In Stock, Qty 6

0

21

Gravely 06223800

BLT-RDHDSQNK .38-16X1.75 G5 YWZC
(Superseded to 06200417)

$3.99

$

In Stock, only 2 left!

0

22

Gravely 06200216

BLT-RDHDSQSHNK .50-13X3.25 YWZC
(Superseded to 06200339)

$3.99

$

In Stock, Qty 20+

0

23

Gravely 05400719

BRG-BALL .315X.866X.276 (608)

Note: (608)

$

$

Not available

24

Gravely 05963000

BLT-HEX .38-16X2.75 GR8 YWZC
(Superseded to 05901813)

$1.49

$

In Stock, Qty 20+

0

25

Gravely 04676151

WLDMT, PIVOTING IDLER

$109.99

$

Usually ships in 4-12 days

0

27

Gravely 05700217

RING, RETAINING-INTERNAL .875"

$

$

Not available

28

Gravely 06530008

NUT-LK-CTR-FLG .50-13 YWZC
(Superseded to 06500902)

$1.49

$

In Stock, Qty 20+

0

29

Gravely 06534800

NUT, LK-CTR-FLG .38-16 YWZC
(Superseded to 06500901)

$1.49

$

In Stock, Qty 20+

0

30

Gravely 06528700

NUT, LK-CTR-FLG .31-18 YWZC
(Superseded to 06500840)

$1.49

$

In Stock, Qty 20+

0

32

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

33

Gravely 06534900

@NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$1.49

$

In Stock, Qty 20+

0

34

Gravely 06436200

WSHR-FL-STL.406X.812X.065YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

35

Gravely 06437200

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0
