994119 - Gravely Pro-Stance 36" Stand-On Mower, Kawasaki FS (SN: 000101 - 039999) Front Axle And Tire Parts Diagram

Pro-Stance 36" Stand-On Mower, Kawasaki FS

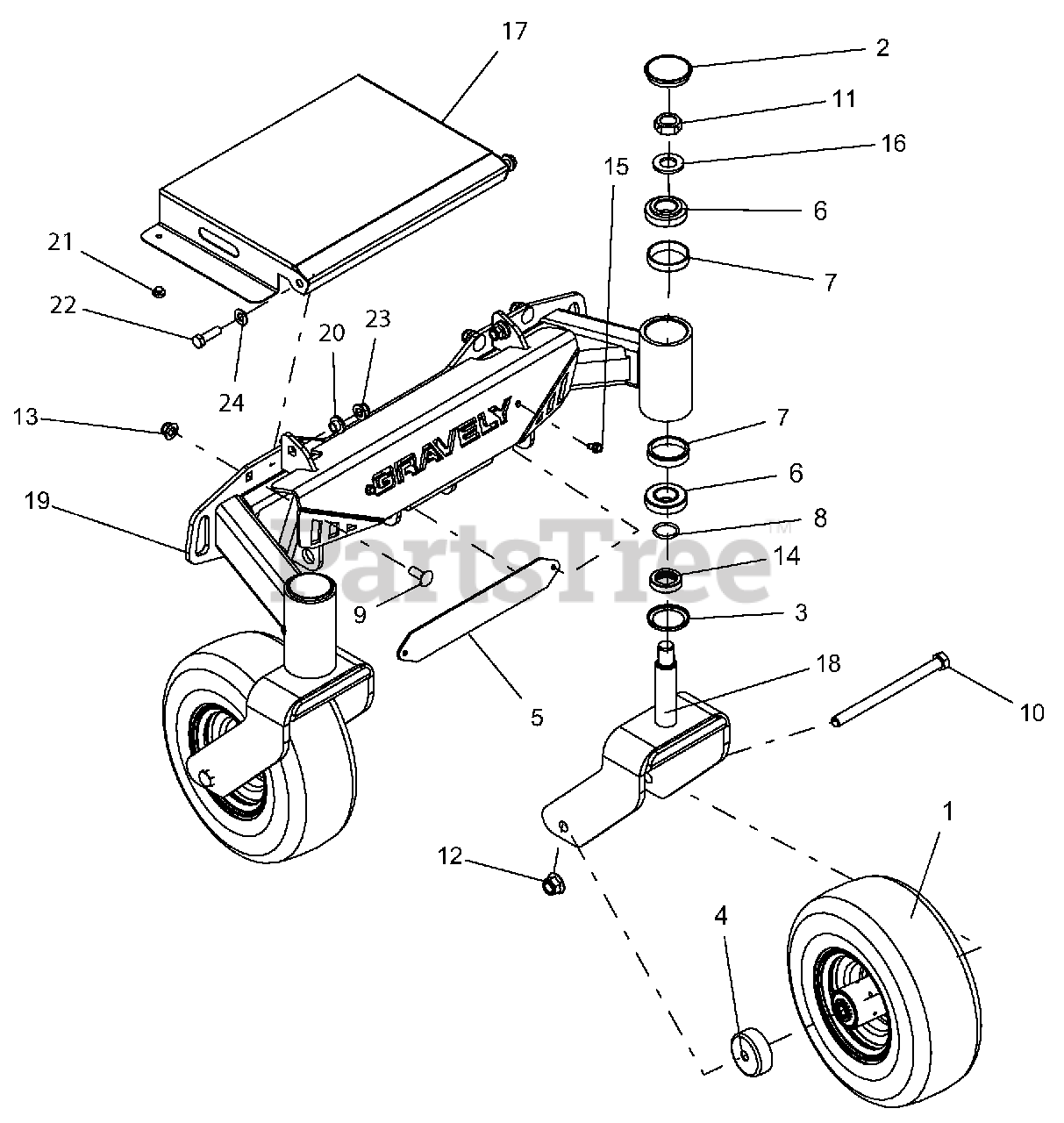

Front Axle And Tire Parts Diagram

  • Title
1

Gravely 07100942

ASM, WHEEL & TIRE 11 x 4.00 - 5

$

$

Not available

2

Gravely 00456800

CAP, DUST

$18.99

$

In Stock, Qty 9

0

3

Gravely 00531400

BEARING SEAL 1.5 X 2.0 X .18

$10.99

$

In Stock, only 4 left!

0

4

Gravely 09357800

SHIELD, WHEEL BEARING

$9.49

$

In Stock, Qty 20+

0

5

Gravely 04683651

BACK, NAMEPLATE

$10.99

$

Usually ships in 4-12 days

0

6

Gravely 69000300

BRG, CONE W/ GREASE
(Superseded to 05406900)

$18.99

$

In Stock, Qty 20+

0

7

Gravely 05407000

BRG, CUP 1.980X.420

$17.99

$

In Stock, Qty 20+

0

8

Gravely 05610000

O-RING 1.000 X 1.250

$3.99

$

Usually ships in 4-12 days

0

9

Gravely 06223600

BLT-RDHDSQNK .38-16X1.00 G5 YWZC
(Superseded to 06200313)

$2.49

$

In Stock, Qty 10

0

10

Gravely 05900002

BLT-HEX .50-13X7.00 GR5 YWZC
(Superseded to 05901917)

$7.99

$

In Stock, only 1 left!

0

11

Gravely 06536900

@NUT-LK-CTR-JAM .75-16 YWZC

$5.99

$

In Stock, only 3 left!

0

12

Gravely 06500010

NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 04720200

SPCR, CASTER FORK (1.00)

Note: (1.00)

$15.99

$

In Stock, only 1 left!

0

15

Gravely 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

16

Gravely 06439000

WSHR-FL-STL.812X1.50X.135YWZC
(Superseded to 06401140)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 04679753

SHIELD, FRONT

$43.99

$

Usually ships in 4-12 days

0

18

Gravely 04594253

WLDMT, CASTER FORK

$182.99

$

Usually ships in 4-12 days

0

19

Gravely 04593853

WLDMT, FRONT AXLE

$512.99

$

Usually ships in 4-12 days

0

20

Gravely 05500435

BSHG, FLG .385 X .500 X .875 X .406

$2.49

$

In Stock, Qty 20+

0

21

Gravely 07503100

BUMPER GROMMET .125 X .25 REV

$3.49

$

In Stock, only 3 left!

0

22

Gravely 05958000

BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$1.49

$

In Stock, Qty 20+

0

23

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

24

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0
