994119 - Gravely Pro-Stance 36" Stand-On Mower, Kawasaki FS (SN: 000101 - 039999) Deck Lift - Pedal Parts Diagram

Pro-Stance 36" Stand-On Mower, Kawasaki FS

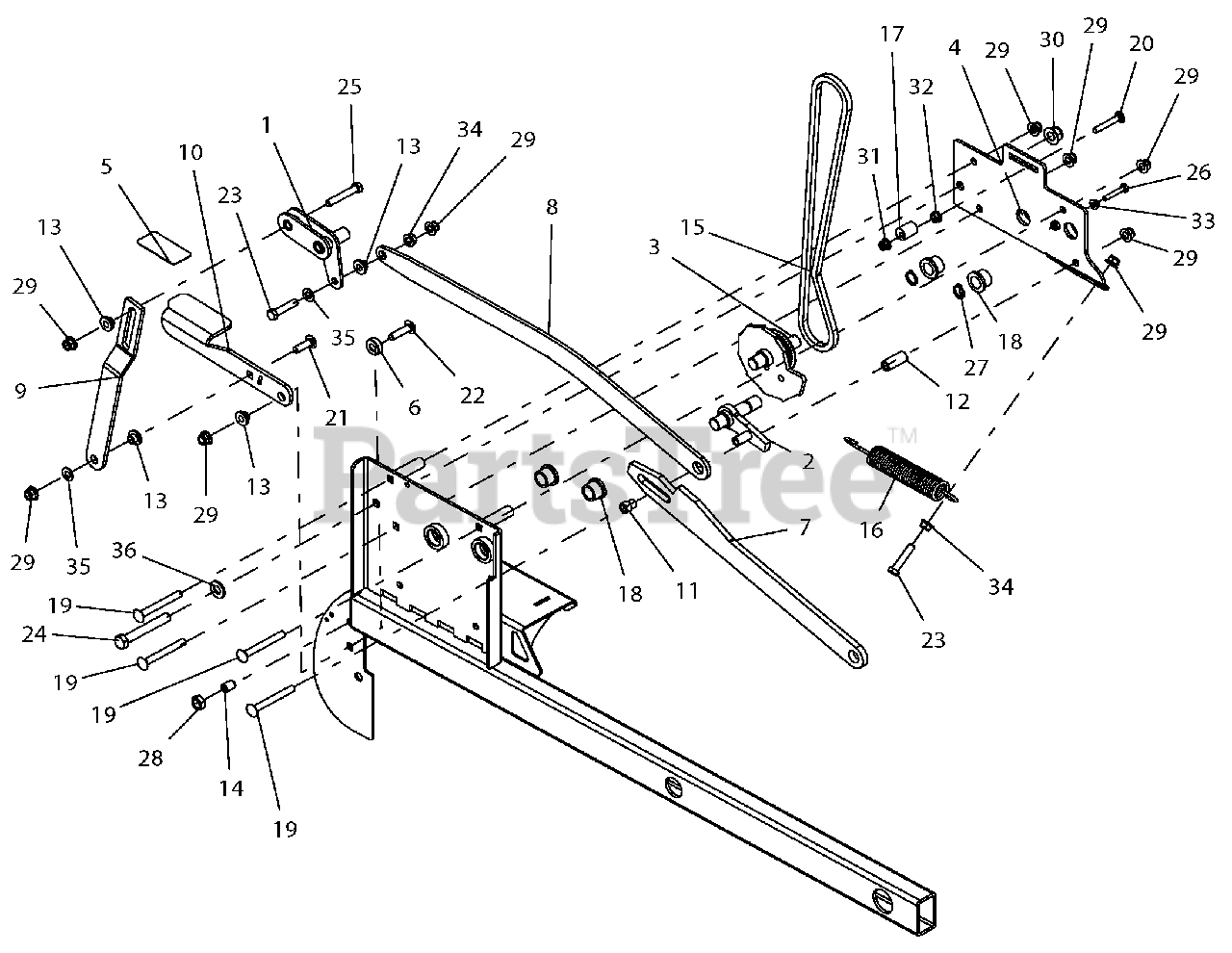

Deck Lift - Pedal Parts Diagram

  • Title

1

Gravely 04639151

WLDMT, REAR PEDAL PIVOT

$60.99

$

Usually ships in 4-12 days

0

2

Gravely 04662300

WLDMT, TRAILER LOCK

$129.99

$

Usually ships in 4-12 days

0

3

Gravely 04638600

WLDMT, HOC CAM

$85.99

$

Usually ships in 4-12 days

0

4

Gravely 04638753

WLDMT, CAM COVER

$80.99

$

Usually ships in 4-12 days

0

5

Gravely 00270100

GRIP, PEDAL 1.50 X 3.00

$3.49

$

In Stock, Qty 5

0

6

Gravely 04448100

SPCR, .375 X 1.00 X .342

$22.99

$

In Stock, only 3 left!

0

7

Gravely 04638251

ARM, CAM CONTACT

$39.99

$

Usually ships in 4-12 days

0

8

Gravely 04639051

ARM, PEDAL

$

$

Not available

9

Gravely 04662051

ARM, PEDAL

$15.99

$

In Stock, only 1 left!

0

10

Gravely 04662151

PEDAL, DECK LIFT FOOT-BLACK

$12.99

$

In Stock, only 1 left!

0

11

Gravely 04663000

BSHG, FLG .385 X .500 X .812 X .437

$17.99

$

Usually ships in 4-12 days

0

12

Gravely 04663100

SPCR, .385 X .625 X 1.438

$

$

Not available

13

Gravely 05500435

BSHG, FLG .385 X .500 X .875 X .406

$2.49

$

In Stock, Qty 20+

0

14

Gravely 07001704

BALL SPRING PLUNGER, .500-13

$9.49

$

Usually ships in 4-12 days

0

15

Gravely 07200638

BELT, 5MM HTD

$29.99

$

In Stock, only 2 left!

0

16

Gravely 08319000

SPRG, TENSION .162 X 1.250 X 8.250

$33.99

$

In Stock, Qty 6

0

17

Gravely 09235700

ECCENTRIC

$4.99

$

Usually ships in 4-12 days

0

18

Gravely 00252126

BUSHING, .750 X 1.00 X .750

$

$

Not available

19

Gravely 06200001

BLT-RDHDSQNK .38-16X3.25 G5 Y

$3.49

$

In Stock, only 1 left!

0

20

Gravely 06225800

BLT-RDHDSQNK .31-18X2.0 FTH G5 Y

$3.99

$

Usually ships in 4-12 days

0

21

Gravely 06222200

BLT-RHDSSQNK .38-16X1.25 G5YZ
(Superseded to 06200236)

$2.49

$

In Stock, Qty 20+

0

22

Gravely 06225600

BLT-RHDSSQNK .38-16X1.50 G5YZ
(Superseded to 06200328)

$3.99

$

Usually ships in 4-12 days

0

23

Gravely 05958500

BLT-HEX .38-16X1.75 GR5 YWZC
(Superseded to 05901809)

$1.49

$

In Stock, Qty 20+

0

24

Gravely 05965800

BLT-HEX .50-13X3.50 GR5 YWZC
(Superseded to 05901937)

$4.99

$

In Stock, only 1 left!

0

25

Gravely 05962900

BLT-HEX .38-16X2.25 GR5 YWZC
(Superseded to 05901640)

$3.99

$

In Stock, Qty 20+

0

26

Gravely 05952500

BLT-HEX .25-20X1.50 GR5 YWZC
(Superseded to 05901739)

$1.49

$

In Stock, Qty 20+

0

27

Gravely 05714600

RG-RTNG-EXT .750x.078

$2.49

$

In Stock, Qty 5

0

28

Gravely 06529300

NUT, JAM .500-13 YWZC
(Superseded to 06500911)

$1.49

$

In Stock, Qty 20+

0

29

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

30

Gravely 06500010

NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$1.49

$

In Stock, Qty 20+

0

31

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

32

Gravely 06530400

@NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.49

$

In Stock, Qty 20+

0

33

Gravely 06530100

@NUT-SPNLK-FLG .25-20 YWZC
(Superseded to 06500824)

$0.99

$

In Stock, Qty 20+

0

34

Gravely 06534900

@NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$1.49

$

In Stock, Qty 20+

0

35

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

36

Gravely 06441900

WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0
