994119 - Gravely Pro-Stance 36" Stand-On Mower, Kawasaki FS (SN: 000101 - 039999) Deck Lift - Left Arm Parts Diagram

Pro-Stance 36" Stand-On Mower, Kawasaki FS

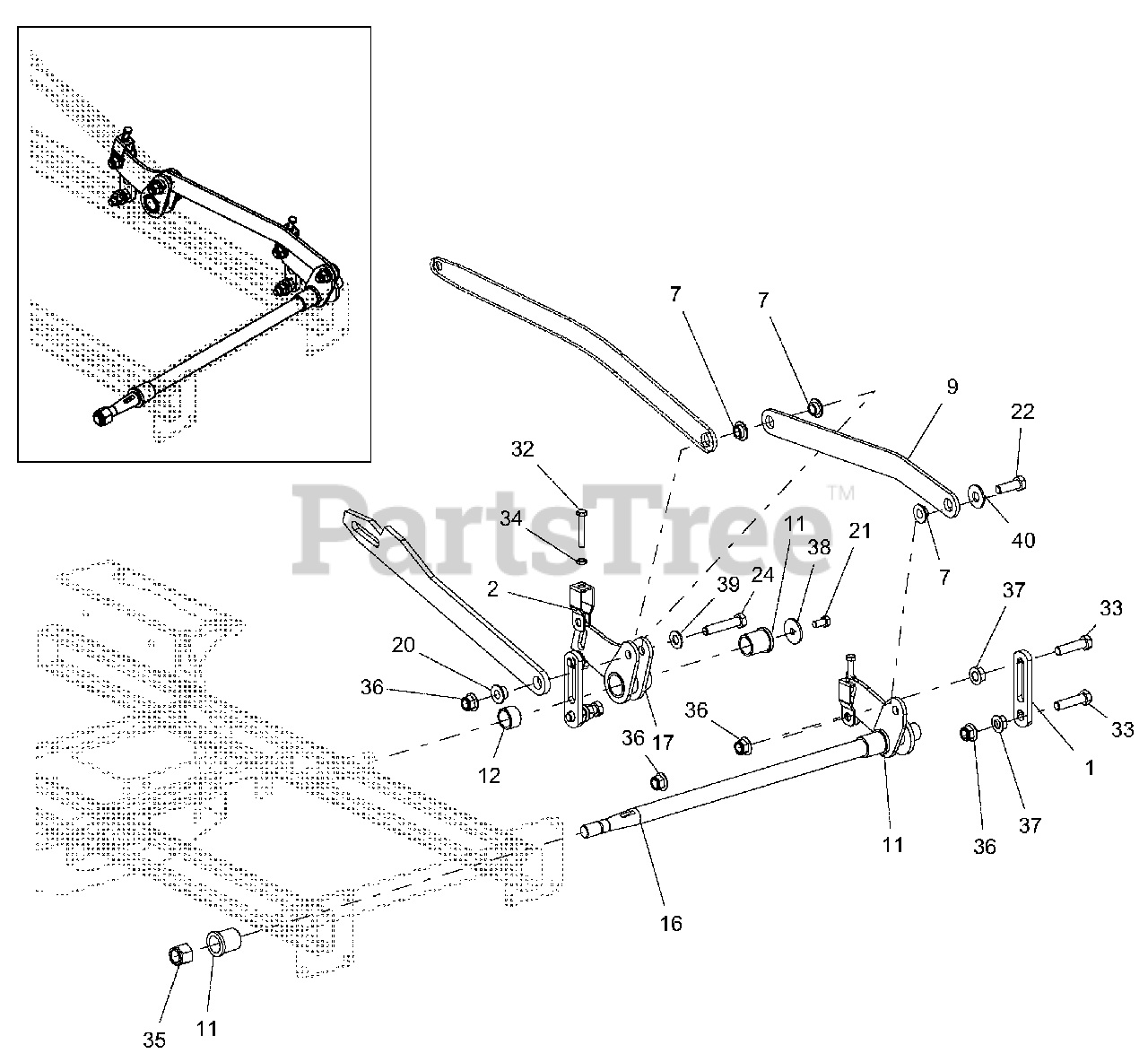

Deck Lift - Left Arm Parts Diagram

  • Title
1

Gravely 04732500

LINK, DECK LIFT - SHORT

$

$

Not available

2

Gravely 00442800

BRKT, DECK LEVELING

$9.49

$

In Stock, only 2 left!

0

7

Gravely 05501135

BSHG, FLANGE .515X.750X.420X1.12

$18.99

$

Usually ships in 4-12 days

0

9

Gravely 04635551

PLATE, DECK ARM

$

$

Not available

11

Gravely 05500934

BSHG-FLG 1.00X1.25X1.5X1.5

$6.99

$

In Stock, Qty 20+

0

12

Gravely 05501117

BSHG, 1.00 X 1.25 X .75

$

$

Not available

16

Gravely 04695267

WLDMT, FRONT LH DECK LIFT ARM (BLACK)

Note: (BLACK)

$170.99

$

Usually ships in 4-12 days

0

17

Gravely 04634851

WLDMT, REAR DECK ARM

$71.99

$

Usually ships in 4-12 days

0

20

Gravely 05501136

BSHG, FLANGE .515X.750X.420X1.12

$

$

Not available

21

Gravely 05959400

BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

$1.49

$

In Stock, Qty 20+

0

22

Gravely 05962000

BLT-HEX .50-13X1.50 GR5 YWZC
(Superseded to 05901631)

$3.99

$

In Stock, only 1 left!

0

24

Gravely 05966600

BLT-HEX .50-13X2.50 GR5 YWZC
(Superseded to 05901712)

$3.99

$

In Stock, only 3 left!

0

32

Gravely 05980900

BLT-HEX .31-18X2.00 FTH GR5 YWZC
(Superseded to 05902003)

$2.99

$

In Stock, only 2 left!

0

33

Gravely 05959700

BLT-HEX .50-13X2.00 GR5 YWZC
(Superseded to 05901929)

$

$

Not available

34

Gravely 06536100

NUT, JAM .312-18 YWZC
(Superseded to 06500909)

$0.99

$

In Stock, Qty 20+

0

35

Gravely 06540800

NUT-LK-NYL .75-10 YWZC

$5.99

$

In Stock, Qty 6

0

36

Gravely 06500010

NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$1.49

$

In Stock, Qty 20+

0

37

Gravely 06543300

NUT .50-13 WIZ FLANGE
(Superseded to 06500928)

$3.99

$

Usually ships in 4-12 days

0

38

Gravely 06443400

WSHR-FL-STL .380X1.50X.125 YWZC
(Superseded to 06401106)

$3.49

$

In Stock, Qty 8

0

39

Gravely 06441900

WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

40

Gravely 06442000

WSHR-FL-STL.563X1.38X.109YWZC
(Superseded to 06401012)

$2.49

$

In Stock, only 1 left!

0
