994118 - Gravely Pro-Stance 52" Stand-On Mower, Kawasaki FX, CARB (SN: 030000 & Above) Deck Lift - Pedal (Outer) Parts Diagram

Pro-Stance 52" Stand-On Mower, Kawasaki FX, CARB

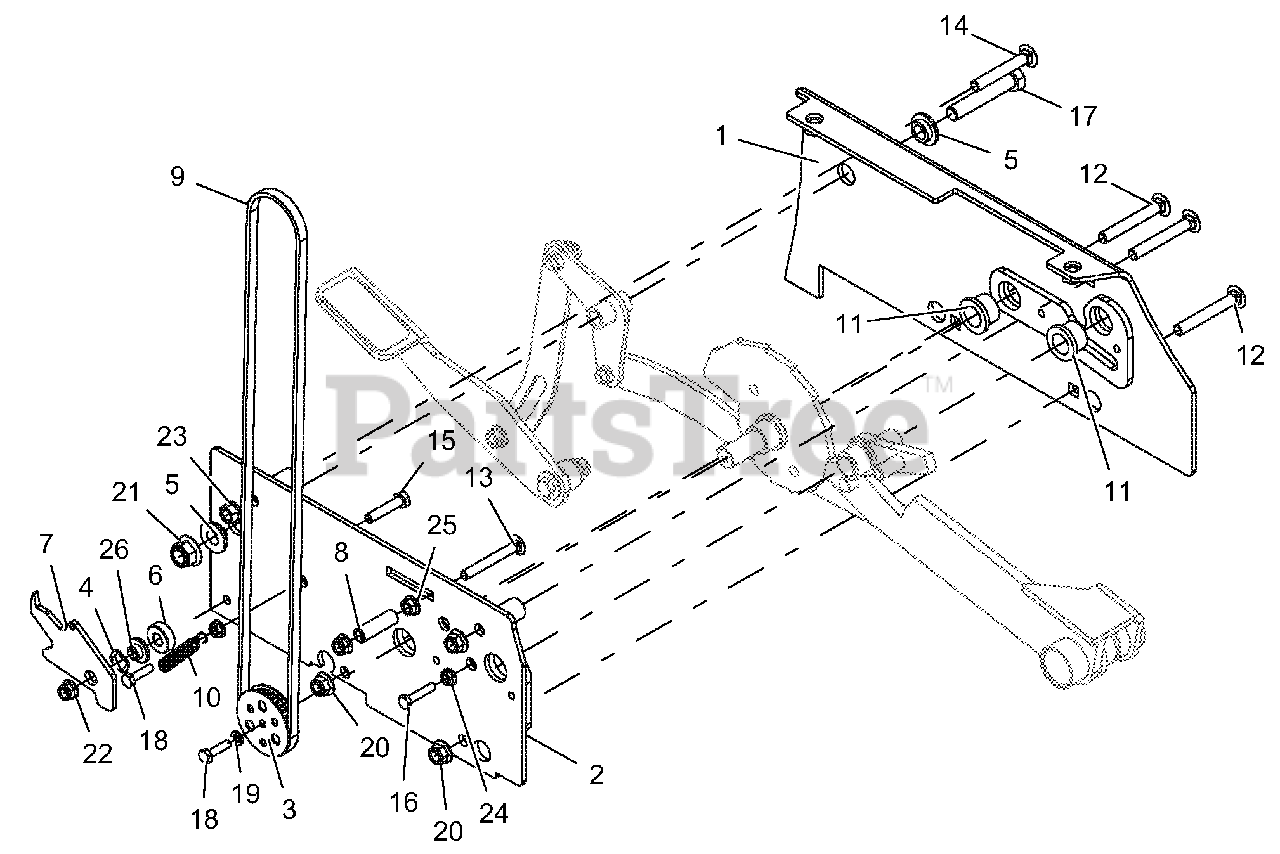

Deck Lift - Pedal (Outer) Parts Diagram

  • Title

1

Gravely 04415653

WLDMT, LH BOTTOM TOWER SIDE - RED

$55.99

$

Usually ships in 4-12 days

0

2

Gravely 04415853

WLDMT, CAM COVER - RED

$

$

Not available

3

Gravely 04438500

WLDMT, PULLEY

$76.99

$

Usually ships in 4-12 days

0

4

Gravely 00325400

WAVE WASHER .531 x .781 x .125 FH

$0.99

$

In Stock, Qty 20+

0

5

Gravely 03989100

BSHG, FLANGE .515 x .750 x .31x 1.12

$3.49

$

In Stock, Qty 20+

0

6

Gravely 04448100

SPCR, .375 x 1.00 x .342

$22.99

$

In Stock, only 3 left!

0

7

Gravely 04545853

LATCH, FOOT PEDAL

$

$

Not available

8

Gravely 05501110

BSHG, SLV .33 x .50 x 1.56

$9.99

$

Usually ships in 4-12 days

0

9

Gravely 07200629

BELT, TIMING - LONG

$

$

Not available

10

Gravely 08300527

SPRG, EXTENSION

$3.49

$

In Stock, Qty 12

0

11

252126

BUSHING, .750 x 1.00 x .750

$

$

Not available

12

Gravely 06225400

BLT-RDHDSQNK .38-16 x 2.75 G5 Y
(Superseded to 06200316)

$3.99

$

In Stock, only 1 left!

0

13

Gravely 06219400

BLT-RDHDSQNK .31-18 x 2.50 G5 Y
(Superseded to 06200409)

$3.49

$

Usually ships in 4-12 days

0

14

Gravely 06224400

BLT-RDHDSQNK .38-16 x 2.50 G5 Y
(Superseded to 06200234)

$3.99

$

In Stock, Qty 20+

0

15

Gravely 05952400

BLT-HEX .31-18 x 1.50 GR5 YWZC
(Superseded to 05901710)

$1.49

$

In Stock, Qty 13

0

16

Gravely 05947400

BLT-HEX .25-20 x 1.25 GR5 YWZC
(Superseded to 05901738)

$1.99

$

In Stock, Qty 5

0

17

Gravely 05965500

BLT-HEX .50-13 x 2.75 GR5 YWZC
(Superseded to 05901720)

$4.99

$

Usually ships in 4-12 days

0

18

Gravely 05947700

BLT-HEX .25-20 x 1.00 GR5 YWZC
(Superseded to 05901639)

$1.49

$

In Stock, Qty 9

0

19

Gravely 06308400

WSHR-LK .25 x .062 REG YWZC
(Superseded to 06401009)

$0.99

$

In Stock, Qty 20+

0

20

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

21

Gravely 06500010

NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$1.49

$

In Stock, Qty 20+

0

22

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

23

Gravely 06542000

NUT, LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

24

Gravely 06530100

@NUT-SPNLK-FLG .25-20 YWZC
(Superseded to 06500824)

$0.99

$

In Stock, Qty 20+

0

25

Gravely 06530400

@NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.49

$

In Stock, Qty 20+

0

26

Gravely 05514800

BSHG, FLG .32 x .500. 344 x .880

$2.49

$

In Stock, only 3 left!

0
