994118 - Gravely Pro-Stance 52" Stand-On Mower, Kawasaki FX, CARB (SN: 020000 - 029999) Deck Lift - Pedal (SN020000+) Parts Diagram

Pro-Stance 52" Stand-On Mower, Kawasaki FX, CARB

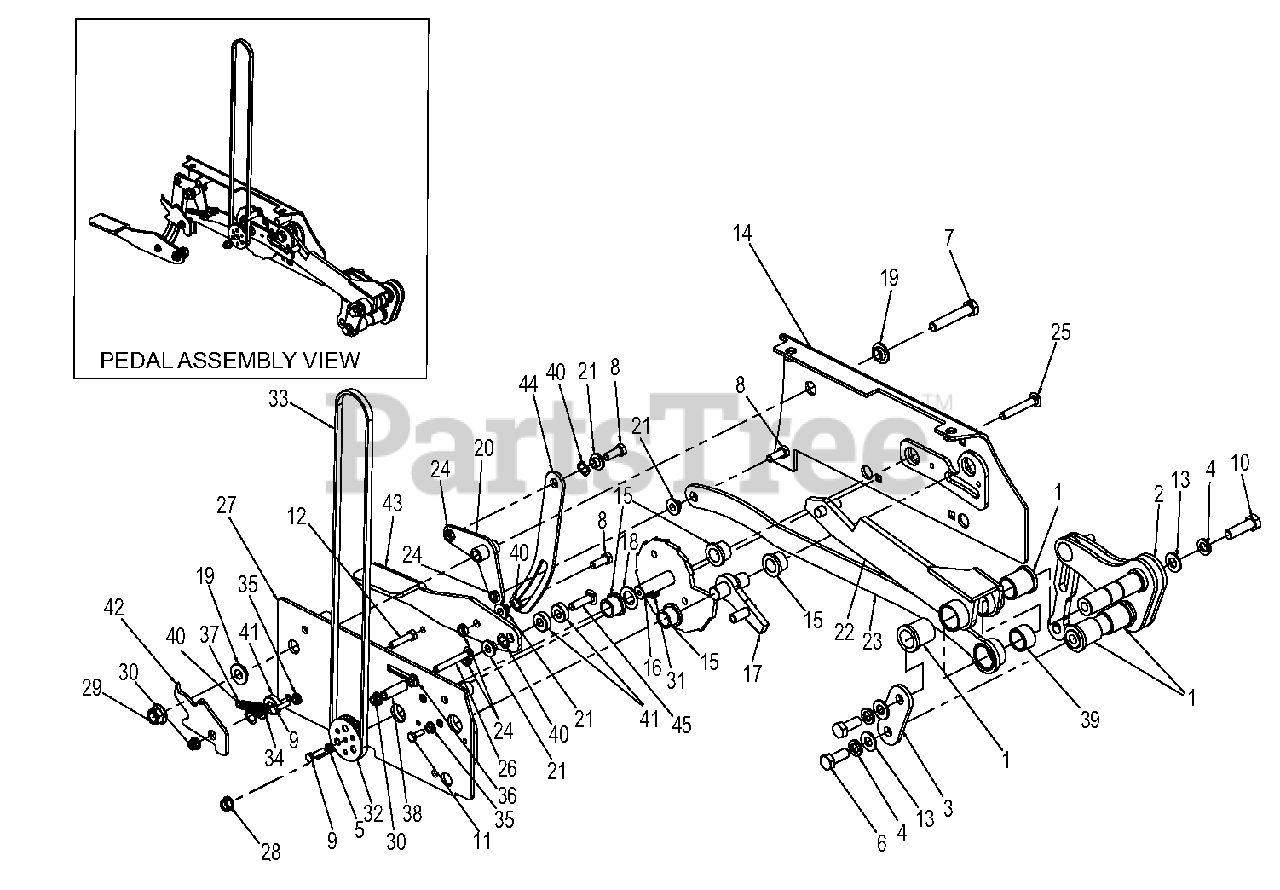

Deck Lift - Pedal (SN020000+) Parts Diagram

  • Title
1

Gravely 05500934

BSHG-FLG 1.00 X 1.25 X 1.5 X 1.5

$6.99

$

In Stock, Qty 20+

0

2

Gravely 04372500

WLDMT, DECK ARM

$149.99

$

Usually ships in 4-12 days

0

3

Gravely 04449351

PLATE, LIFT LINK ATTACH

$

$

Not available

4

Gravely 06307300

WSHR-LK .50X .125 REG YWZC
(Superseded to 06300115)

$1.49

$

In Stock, Qty 17

0

5

Gravely 06308400

WSHR-LK .25 X .062 REG YWZC
(Superseded to 06401009)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 05958900

BLT-HEX .50-13 X 1.25 GR5 YWZC
(Superseded to 05901637)

$3.49

$

In Stock, only 1 left!

0

7

Gravely 05965500

BLT-HEX .50-13 X 2.75 GR5 YWZC
(Superseded to 05901720)

$4.99

$

Usually ships in 4-12 days

0

8

Gravely 05948700

BLT-HEX .38-16 X 1.00 GR5 YWZC
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 05947700

BLT-HEX .25-20 X 1.00 GR5 YWZC
(Superseded to 05901639)

$1.49

$

In Stock, Qty 9

0

10

Gravely 05970600

BLT-HEX .50-13 X 1.75 GR5 YWZC
(Superseded to 05901939)

$3.99

$

In Stock, only 2 left!

0

11

Gravely 05946800

BLT-HEX .25-20 X .75 GR5 YWZC
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 05952400

BLT-HEX .31-18 X 1.50 GR5 YWZC
(Superseded to 05901710)

$1.49

$

In Stock, Qty 13

0

13

Gravely 06441900

WSHR-FL-STL .531 X 1.06 X .095 YWZC
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 04415653

WLDMT, LH BOTTOM TOWER SIDE

$55.99

$

Usually ships in 4-12 days

0

15

252126

BUSHING, .750 X 1.00 X .750

$

$

Not available

16

Gravely 04398500

WLDMT, HEIGHT OF CUT

$75.99

$

Usually ships in 4-12 days

0

17

Gravely 04432500

WLDMT, TRAILER LOCK

$85.99

$

Usually ships in 4-12 days

0

18

150052

BUSHING, MACH .75 X 1.25 X .048

$

$

Not available

19

Gravely 03989100

BSHG, FLANGE .515 X .750 X .31 X 1.12

$3.49

$

In Stock, Qty 20+

0

20

Gravely 04415751

WLDMT, REAR PIVOT

$73.99

$

Usually ships in 4-12 days

0

21

Gravely 05500435

BSHG, FLG .385 X .500 X .875 X .406

$2.49

$

In Stock, Qty 20+

0

22

Gravely 04415951

WLDMT, CAM CONTACT

$142.99

$

Usually ships in 4-12 days

0

23

Gravely 04416051

WLDMT, DECK LIFT LINK

$64.99

$

Usually ships in 4-12 days

0

24

Gravely 06537200

NUT-LK-CTR-JAM .375-16 YWZC
(Superseded to 06500914)

$0.99

$

In Stock, Qty 20+

0

25

Gravely 06224400

BLT-RDHDSQNK .38-16 X 2.50 G5 Y
(Superseded to 06200234)

$3.99

$

In Stock, Qty 20+

0

26

Gravely 06219400

BLT-RDHDSQNK .31-18 X 2.50 G5 Y
(Superseded to 06200409)

$3.49

$

Usually ships in 4-12 days

0

27

Gravely 04415853

WLDMT, CAM COVER

$

$

Not available

28

Gravely 06542000

NUT, LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

29

Gravely 06500010

NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$1.49

$

In Stock, Qty 20+

0

30

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

31

Gravely 04488400

KEY, .125 SQ. X .50

$5.99

$

Usually ships in 4-12 days

0

32

Gravely 04438500

WLDMT, PULLEY

$76.99

$

Usually ships in 4-12 days

0

33

Gravely 07200629

BELT, TIMING-LONG

$

$

Not available

34

Gravely 05514800

BSHG-FLG .312 X .500 X .344

$2.49

$

In Stock, only 1 left!

0

35

Gravely 06530100

NUT=SPNLK=FLG .25-20 YWZC
(Superseded to 06500824)

$0.99

$

In Stock, Qty 20+

0

36

Gravely 06530400

NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.49

$

In Stock, Qty 20+

0

37

Gravely 08300527

SPRG, EXTENSION

$3.49

$

In Stock, Qty 12

0

38

Gravely 05501110

BSHG, SLV .33 X .50 X 1.56

$9.99

$

Usually ships in 4-12 days

0

39

Gravely 05501117

BSHG, 1.00 X 1.25 X .75

$

$

Not available

40

Gravely 00325400

WAVE WASHER .531 X .781 X .125 FH

$0.99

$

In Stock, Qty 20+

0

41

Gravely 04448100

SPCR, .375 X 1.00 X.342

$22.99

$

In Stock, only 3 left!

0

42

Gravely 04545853

LATCH, FOOT PEDAL

$

$

Not available

43

Gravely 04545351

ARM, LOWER TURN

$27.99

$

In Stock, only 1 left!

0

44

Gravely 04545451

ARM, PEDAL

$22.99

$

Usually ships in 4-12 days

0

45

Gravely 06224200

BLT-RDHDSQNK .38-16 X 1.50 G5 Y
(Superseded to 06200416)

$3.99

$

In Stock, only 2 left!

0
