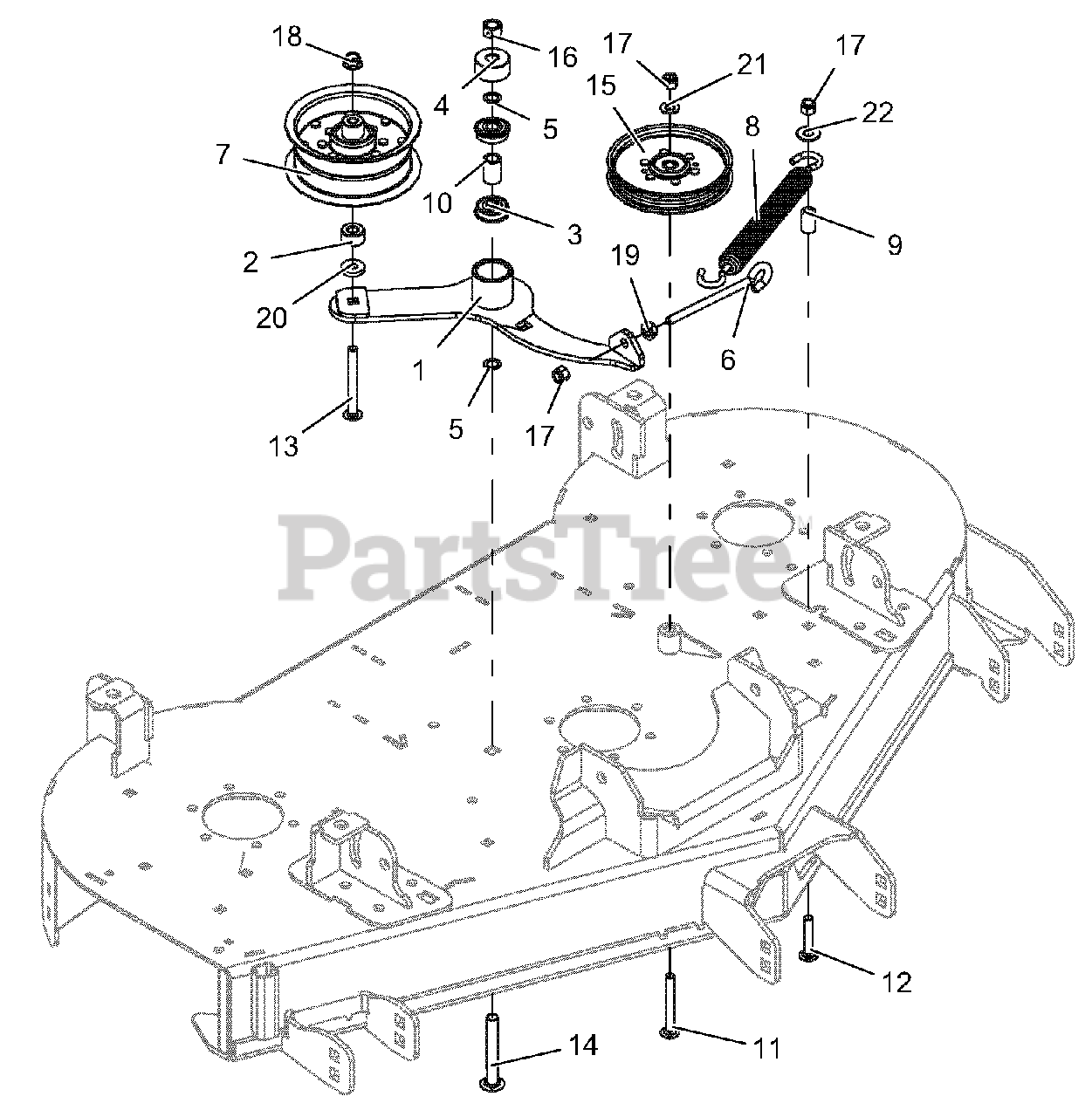

994117 - Gravely Pro-Stance 48" Stand-On Mower, Kawasaki FX, CARB (SN: 030000 & Above) Deck - Idlers And Sheaves Parts Diagram

Pro-Stance 48" Stand-On Mower, Kawasaki FX, CARB

Deck - Idlers And Sheaves Parts Diagram

  • Title

1

Gravely 04720651

WLDMT, IDLER ARM - BLACK
(Superseded to 04720600)

$113.99

$

Usually ships in 4-12 days

0

2

Gravely 03846217

SPACER, .437 x 1.00 x .58 SMLS

$9.49

$

In Stock, Qty 10

0

3

Gravely 05480000

BRG, BALL .501 x 1.38 x .438 SEALED

$13.99

$

In Stock, Qty 20+

0

4

Gravely 05501116

SPCR, IDLER ARM

$58.99

$

Usually ships in 4-12 days

0

5

Gravely 06400015

WASHER-FLAT-STL, .500 x .750 x .020

$1.49

$

In Stock, Qty 20+

0

6

Gravely 07001640

BOLT, EYE .38-16 x 6.00 .62 DIA

$16.99

$

Usually ships in 4-12 days

0

7

Gravely 07300532

PULLEY, FLAT 5.00 x 2.36 x .375

$68.99

$

In Stock, Qty 13

0

8

Gravely 08300505

SPRG, EXTENSION

$25.99

$

In Stock, Qty 20+

0

9

Gravely 08833400

BUSH., S .391 x .622 x .95 ST REV A

$5.99

$

In Stock, only 1 left!

0

10

Gravely 09357700

SPACER, .510 x .750 x 1.148

$4.99

$

In Stock, Qty 8

0

11

Gravely 06228100

BLT-RDHDSQNK .38-16 x 3.00 G5 YWZC
(Superseded to 06200418)

$3.99

$

In Stock, only 1 left!

0

12

Gravely 06224300

BLT-RDHDSQNK .38-16 x 2.00 G5 Y
(Superseded to 06200314)

$3.99

$

In Stock, only 4 left!

0

13

Gravely 06200125

BLT-RHDSSQNK .38-16 x 3.50 G5YZ
(Superseded to 06200238)

$3.99

$

In Stock, Qty 20+

0

14

Gravely 06200003

BLT-RHDSSQNK .50-13 x 3.50 G5YZ
(Superseded to 06200340)

$5.99

$

In Stock, only 3 left!

0

15

Gravely D28050

PULLEY, FLAT IDLER .500 x .375 W/BRG
(Superseded to 07352400)

$39.99

$

In Stock, Qty 20+

0

16

Gravely 06536300

NUT-LK-CTR .50-13 YWZC
(Superseded to 06500827)

$3.99

$

In Stock, only 2 left!

0

17

Gravely 06535800

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

18

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 06534900

@NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 06444000

WSHR-FL-STL .406 x 1.00 x .188 YWZC
(Superseded to 06401108)

$2.49

$

In Stock, Qty 20+

0

21

Gravely 06436200

WSHR-FL-STL .406 x .812 x .065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

22

Gravely 06435900

WSHR-FL-STL .438 x 1.00 x .083 YWZC
(Superseded to 06401008)

$1.49

$

In Stock, Qty 20+

0
