994115 - Gravely Pro-Stance 61" Stand-On Mower, Kohler EFI (SN: 030000 & Above) Deck Lift - Pedal (Inner) Parts Diagram

Pro-Stance 61" Stand-On Mower, Kohler EFI

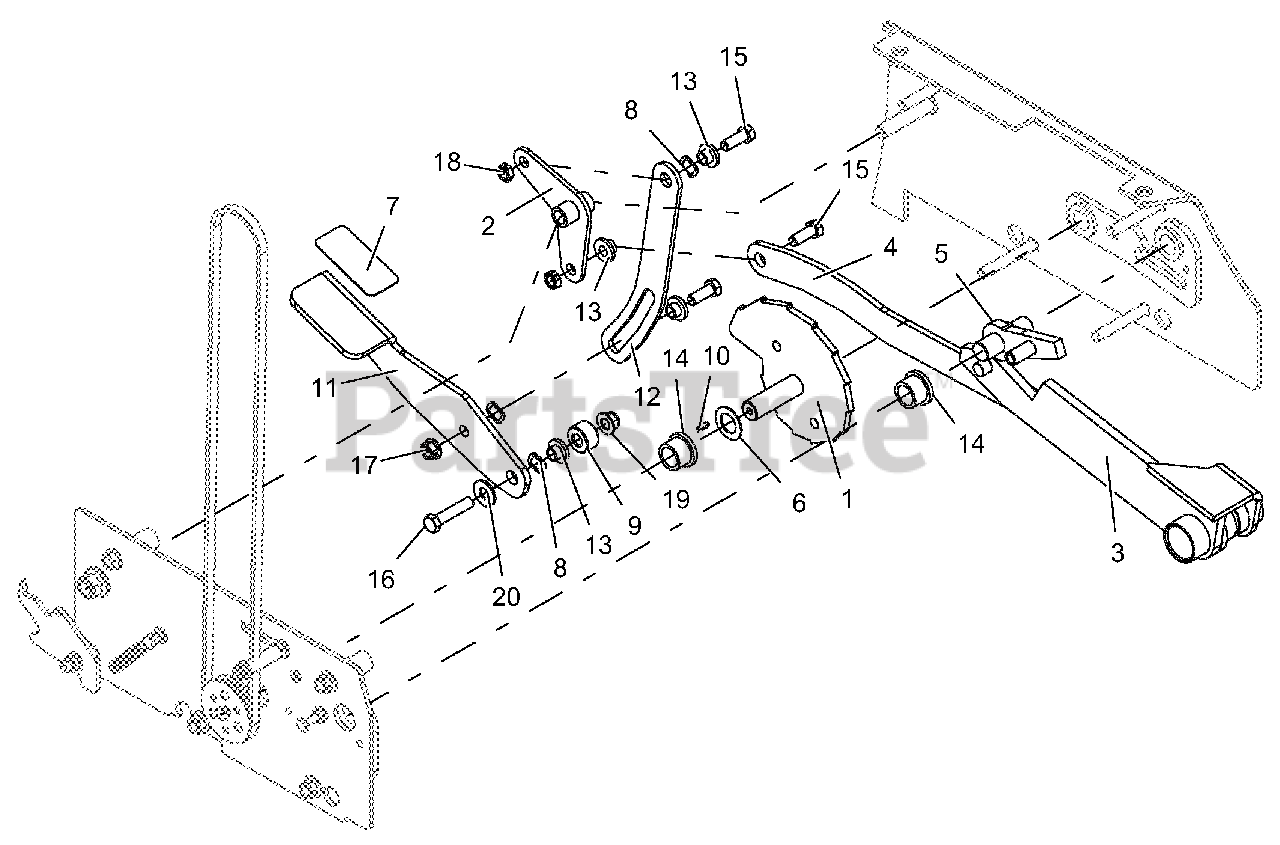

Deck Lift - Pedal (Inner) Parts Diagram

  • Title

1

Gravely 04398500

WLDMT, HEIGHT OF CUT

$75.99

$

Usually ships in 4-12 days

0

2

Gravely 04415751

WLDMT, REAR PIVOT - BLACK

$73.99

$

Usually ships in 4-12 days

0

3

Gravely 04415951

WLDMT, CAM CONTACT - BLACK

$142.99

$

Usually ships in 4-12 days

0

4

Gravely 04416051

WLDMT, DECK LIFT LINK - BLACK

$64.99

$

Usually ships in 4-12 days

0

5

Gravely 04432500

WLDMT, TRAILER LOCK

$85.99

$

Usually ships in 4-12 days

0

6

150052

BUSHING, MACH .75 x 1.25 x .048

$

$

Not available

7

Gravely 00270100

GRIP, PEDAL 1.50 x 3.00

$3.49

$

In Stock, Qty 5

0

8

Gravely 00325400

WAVE WASHER .531 x .781 x .125 FH

$0.99

$

In Stock, Qty 20+

0

9

Gravely 03846217

SPACER, .437 x 1.00 x .58 SMLS

$9.49

$

In Stock, Qty 10

0

10

Gravely 04488400

KEY, .125 SQ. x .50

$5.99

$

Usually ships in 4-12 days

0

11

Gravely 04545351

PEDAL, DECK LIFT

$27.99

$

In Stock, only 1 left!

0

12

Gravely 04545451

ARM, PEDAL - BLACK

$22.99

$

Usually ships in 4-12 days

0

13

Gravely 05500435

BSHG, FLG .385 x .500 x .875 x .406

$2.49

$

In Stock, Qty 20+

0

14

252126

BUSHING, .750 x 1.00 x .750

$

$

Not available

15

Gravely 05948700

BLT-HEX .38-16 x 1.00 GR5 YWZC
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 05958500

BLT-HEX .38-16 x 1.75 GR5 YWZC
(Superseded to 05901809)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 06534800

NUT, LK-CTR-FLG .38-16 YWZC
(Superseded to 06500901)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 06537200

@NUT-LK-CTR-JAM .375-16 YWZC
(Superseded to 06500914)

$0.99

$

In Stock, Qty 20+

0

19

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 06435900

WSHR-FL-STL .438 x 1.00 x .083 YWZC
(Superseded to 06401008)

$1.49

$

In Stock, Qty 20+

0
