994115 - Gravely Pro-Stance 61" Stand-On Mower, Kohler EFI (SN: 000101 - 029999) Operator Controls - Panel And Tower Parts Diagram

Pro-Stance 61" Stand-On Mower, Kohler EFI

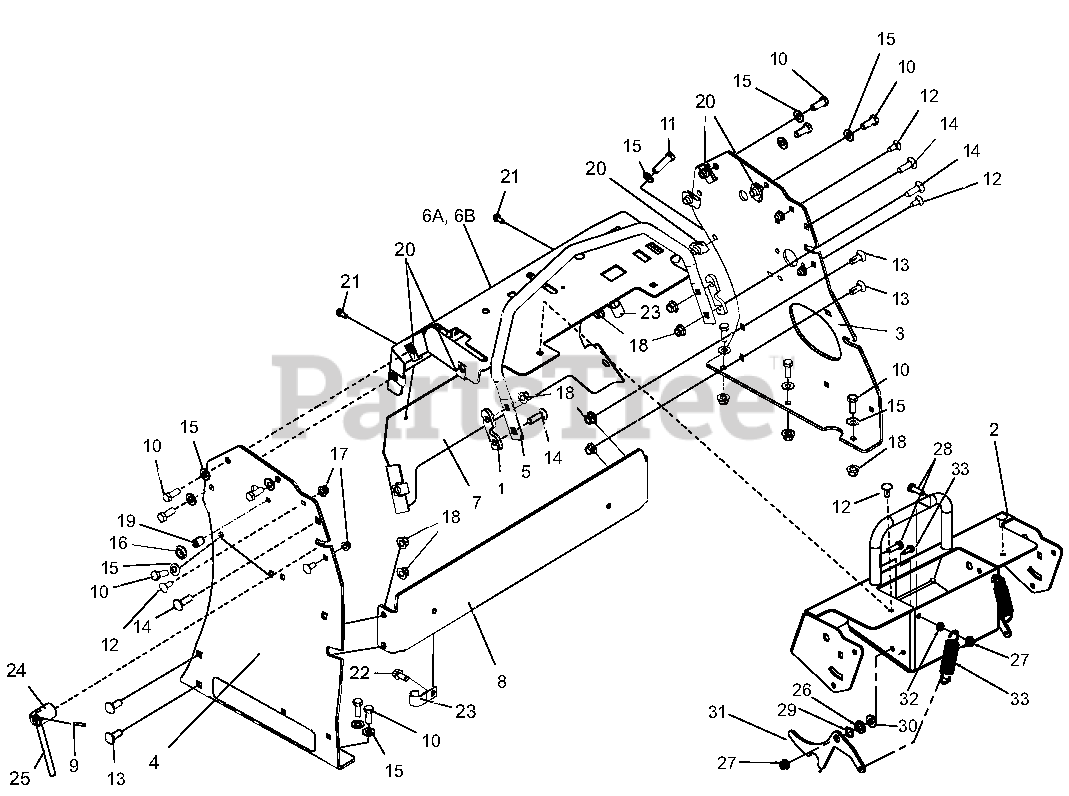

Operator Controls - Panel And Tower Parts Diagram

  • Title
1

Gravely 03976751

SHIM, 5 DEG SPEED BAR

$

$

Not available

2

Gravely 04579253

WLDMT, CONTROL PANEL, PRO-STANCE

$206.99

$

Usually ships in 4-12 days

0

3A

Gravely 04384553

PANEL, TOWER RH, PRO-STANCE (SN 000101-019999)

Note: (SN 000101-019999)

$56.99

$

Usually ships in 4-12 days

0

3B

Gravely 04579053

PANEL, TOWER RH, PRO-STANCE (SN 020000+)

Note: (SN 020000+)

$103.99

$

Usually ships in 4-12 days

0

4A

Gravely 04384653

PANEL, TOWER LH, PRO-STANCE (SN 000101-019999)

Note: (SN 000101-019999)

$

$

Not available

4B

Gravely 04579153

PANEL, TOWER LH, PRO-STANCE (SN0 020000+)

Note: (SN0 020000+)

$

$

Not available

5

Gravely 04389753

STOP, FORWARD STEERING

$129.99

$

Usually ships in 4-12 days

0

6A

Gravely 04399853

PANEL, CONTROL PRO-STANCE (994111,112,113,114,115)

Note: (994111,112,113,114,115)

$51.99

$

Usually ships in 4-12 days

0

6B

Gravely 04558253

PANEL, CONTROL PRO-STANCE (994117,118)

Note: (994117,118)

$

$

Not available

7

Gravely 04448951

PLATE, FRONT BACKER

$50.99

$

Usually ships in 4-12 days

0

8

Gravely 04449051

STIFFENER, TOWER

$44.99

$

Usually ships in 4-12 days

0

9

Gravely 05800005

PIN, SPRING

$2.49

$

Usually ships in 4-12 days

0

10

Gravely 05948700

BLT-HEX .38-16 X 1
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 05957900

BLT-HEX .38-16 X 1.00 GR5 YWZC
(Superseded to 05901928)

$1.49

$

In Stock, Qty 15

0

12

Gravely 06215700

BLT-RDHDSQNK .31-18 X .75 G5 YWZC (SN 020000+)
(Superseded to 06200232)

Note: (SN 020000+)

$2.49

$

In Stock, Qty 20+

0

13

Gravely 06223600

BLT-RDHDSQNK .3
(Superseded to 06200313)

$2.49

$

In Stock, Qty 10

0

14

Gravely 06224100

BLT-RDHDSQNK .3
(Superseded to 06200415)

$2.49

$

In Stock, only 3 left!

0

15

Gravely 06436200

WSHR-FL-STL .406 X .812 X .065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

16

Gravely 06529300

NUT, 1/2-13 JAM GR5Y
(Superseded to 06500911)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 07001704

BALL SPRING PLUNGER .500-13

$9.49

$

Usually ships in 4-12 days

0

20

Gravely 07053300

NUT, RTNR .375-16 X .37

$3.99

$

In Stock, only 4 left!

0

21

Gravely 07400034

SCR-TAP .25-20 X .50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

22

Gravely 07415400

SCR-TAP .38-16 X .75 HWH TR YWZ
(Superseded to 07400129)

$1.49

$

In Stock, Qty 20+

0

23

Gravely AH89557

P-CLIP, .500 INSULATED

$5.49

$

In Stock, only 1 left!

0

24

Gravely D13308

BASE, LOCK LEVER Y

$

$

Not available

25

Gravely D13309

LEVER, LOCK Y

$

$

Not available

26

Gravely 05514800

BSH-FLG .312 X .500 X .344 (SN 020000+)

Note: (SN 020000+)

$2.49

$

In Stock, only 3 left!

0

27

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC (SN 020000+)
(Superseded to 06500809)

Note: (SN 020000+)

$1.49

$

In Stock, Qty 20+

0

28

Gravely 05946900

BOLT, HEX .31-18 X 1.00 GR4 YWZC (SN 020000+)
(Superseded to 05901701)

Note: (SN 020000+)

$1.49

$

In Stock, Qty 20+

0

29

Gravely 00325400

WAVE WASHER .531 X .781 X .125 FH (SN 020000+)

Note: (SN 020000+)

$0.99

$

In Stock, Qty 20+

0

30

Gravely 06435700

WASHER-FL-STL .38 X .875 .083 YWZC ( SN 020000+)
(Superseded to 06401023)

Note: ( SN 020000+)

$1.49

$

In Stock, Qty 20+

0

31

Gravely 04577500

LATCH, PAD MOUNT (SN 020000+)

Note: (SN 020000+)

$

$

Not available

32

Gravely 06500011

NUT-LK-CTR-JAM .31-18 YWZC (SN 020000+)
(Superseded to 06500913)

Note: (SN 020000+)

$0.99

$

In Stock, only 3 left!

0

33

Gravely 08311700

SPRING, TENSION .105 X .812 X 3.88 (SN 020000+)

Note: (SN 020000+)

$7.99

$

In Stock, only 1 left!

0

33

Gravely 07414400

SCREW, TAPPING .31-18 .75 HEX WASHER HEAD
(Superseded to 07400127)

$1.49

$

In Stock, Qty 11

0
