994115 - Gravely Pro-Stance 61" Stand-On Mower, Kohler EFI (SN: 000101 - 029999) Deck - Idlers And Sheaves Parts Diagram

Pro-Stance 61" Stand-On Mower, Kohler EFI

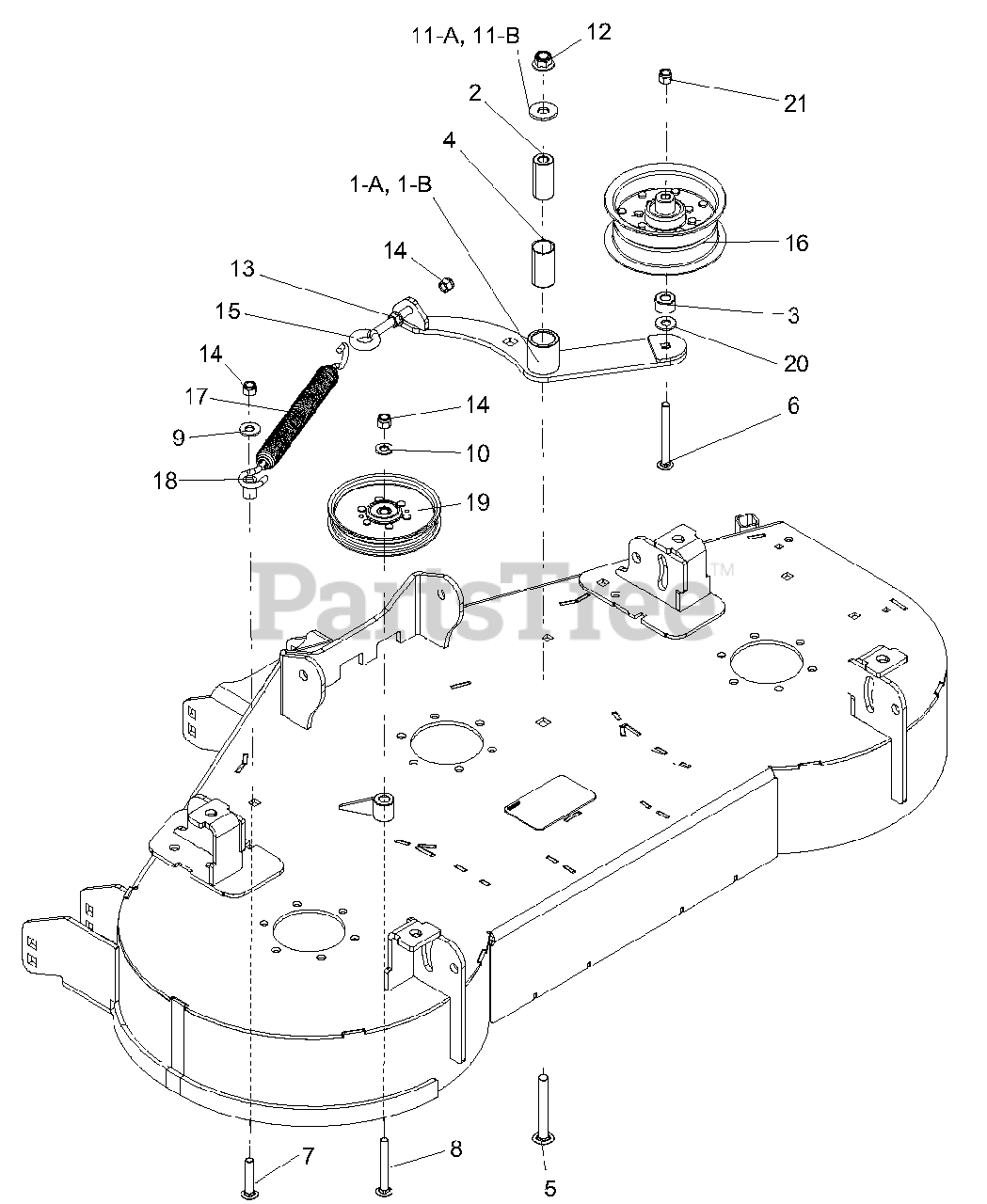

Deck - Idlers And Sheaves Parts Diagram

  • Title

1-A

Gravely 04376851

WLDMT, IDLER PROSTANCE (994111,112,113,117,118)

Note: (994111,112,113,117,118)

$103.99

$

Usually ships in 4-12 days

0

1-B

Gravely 04511351

WLDMT, IDLER PROSTANCE (994114,115)

Note: (994114,115)

$107.99

$

Usually ships in 4-12 days

0

2

Gravely 01581700

BSHG, SPCR .502 X .997 X 2.03

$5.99

$

In Stock, Qty 20+

0

3

Gravely 03846217

SPACER, .437 X 1.00 .58 SMLS

$9.49

$

In Stock, Qty 10

0

4

Gravely 05500123

BSHG, 1.00 X 1.125 X 1.937
(Superseded to 05501234)

$10.99

$

In Stock, Qty 20+

0

5

Gravely 06200003

BLT-RHDSSQNK .50-13 X 3.50 G5YZ
(Superseded to 06200340)

$5.99

$

In Stock, only 3 left!

0

6

Gravely 06222400

BLT-RHDSSQNK .38-16 X 3.50 G5YZ
(Superseded to 06200302)

$9.49

$

In Stock, only 1 left!

0

7

Gravely 06224300

BLT-RHDSSQNK .38-16 X 2.00 G5YZ
(Superseded to 06200314)

$3.99

$

In Stock, only 4 left!

0

8

Gravely 06228100

BLT-RDHDSQNK .38-16 X 3.00 G5 YWZC
(Superseded to 06200418)

$3.99

$

In Stock, only 1 left!

0

9

Gravely 06435900

WSHR-FL-STL .438 X 1.00 X .083 YWZC
(Superseded to 06401008)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 06436200

WSHR-FL-STL .406 X .812 X .065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

11A

Gravely 05501116

SPACER, IDLER ARM (994111,112,113,117,118)

Note: (994111,112,113,117,118)

$58.99

$

Usually ships in 4-12 days

0

11B

Gravely 06442000

WSHR-FL-STL .563 X .138 X .109 YWZC (994114,115)
(Superseded to 06401012)

Note: (994114,115)

$2.49

$

In Stock, only 1 left!

0

12

Gravely 06536300

NUT-LK-CTR .50-13 YWZC
(Superseded to 06500827)

$3.99

$

In Stock, only 2 left!

0

13

Gravely 06534900

NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 06535800

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

15

Gravely 07001640

BOLT, EYE .38-16 X 4.25 .62 DIA EYE

$16.99

$

Usually ships in 4-12 days

0

16

Gravely 07300532

PULLEY, FLAT 5.00 X 2.36 X .375

$68.99

$

In Stock, Qty 13

0

17

Gravely 08300505

SPRG, EXTENSION

$25.99

$

In Stock, Qty 20+

0

18

Gravely 08833400

BUSH, S.391X.622X.95 ST REV A

$5.99

$

In Stock, only 1 left!

0

19

Gravely D28050

PULLEY, FLAT 5.00 X .375 W/BRG
(Superseded to 07352400)

$39.99

$

In Stock, Qty 20+

0

20

Gravely 06444000

WSHR-FL-STL .406 X 1.00 X .188 YWZ
(Superseded to 06401108)

$2.49

$

In Stock, Qty 20+

0

21

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0
