994114 - Gravely Pro-Stance 61" Stand-On Mower, Kawasaki FX (SN: 000101 - 029999) Engine Parts Diagram

Pro-Stance 61" Stand-On Mower, Kawasaki FX

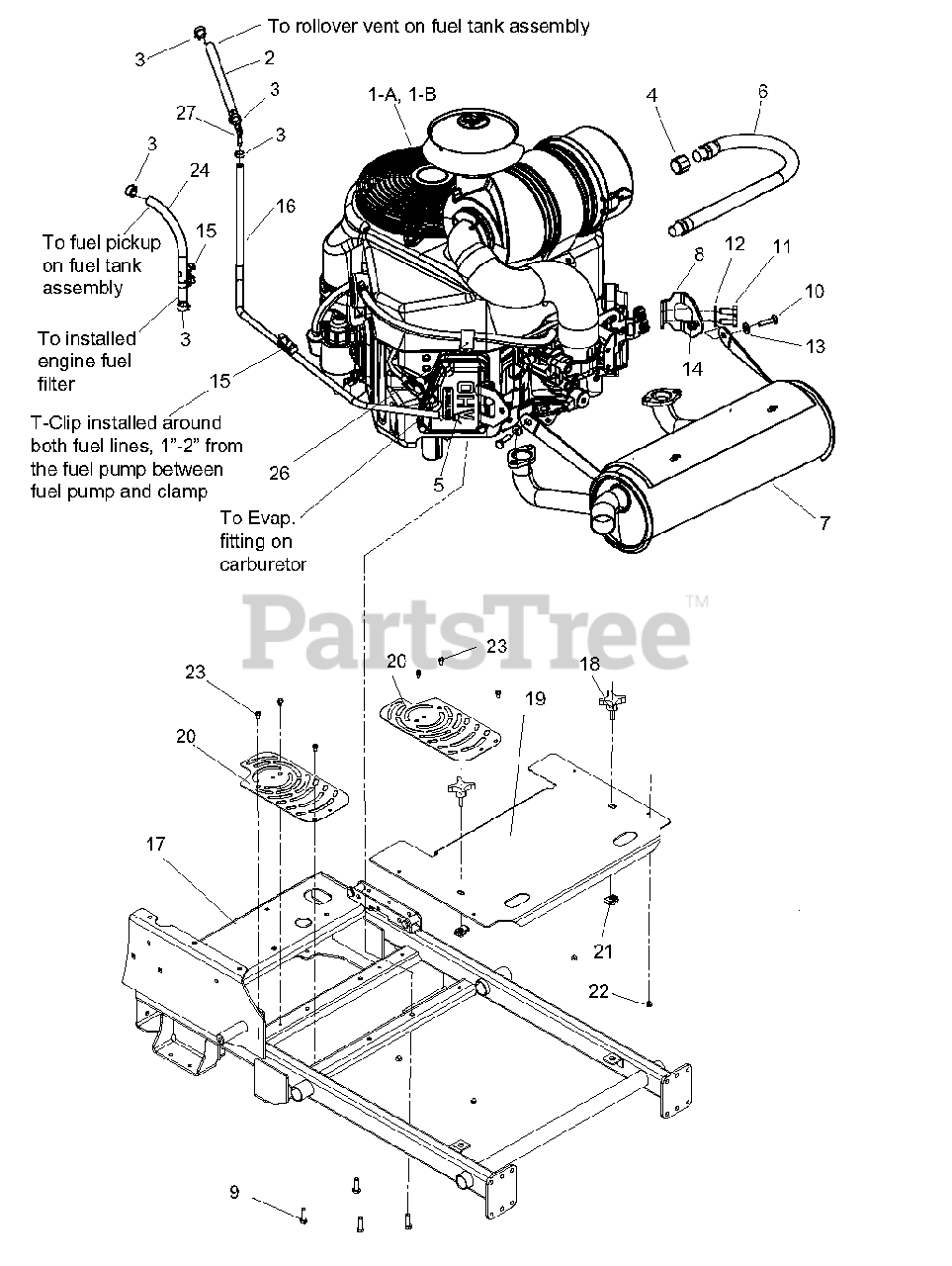

Engine Parts Diagram

  • Title

1-A

Gravely 08200722

ENGINE, KAWASAKI FX 170 (994114)

Note: (994114)

$

$

Not available

1-B

Gravely 08200721

ENGINE, KAWASAKI FX691 (994111,112,117,118)

Note: (994111,112,117,118)

$

$

Not available

2

Gravely 3278100

HOSE, .25 LOW-PERM BULK GAS (5")

Note: (5")

$

$

Not available

3

Gravely 03278800

CLAMP, FUEL LINE

$1.49

$

In Stock, Qty 20+

0

4

Gravely 03873200

PIPE CAP 3/8 NPT FEMALE

$12.99

$

Usually ships in 4-12 days

0

5

Gravely 04097700

CLAMP - HOSE, SPRING .188

$

$

Not available

6

Gravely 04271700

DRAIN , M20 OIL

$34.99

$

Usually ships in 4-12 days

0

7

Gravely 04420400

EXHAUST, KAWASAKI PROSTANCE

$270.99

$

Usually ships in 4-12 days

0

8

Gravely 04430251

BRKT, EXHAUST

$

$

Not available

9

Gravely 05901507

BLT-HEX .38-16 X 1.25 FTH GR5 YZ EP80

$2.49

$

In Stock, only 3 left!

0

10

Gravely 05947700

BLT-HEX .25-20 X 1.00 GR5 YWZC
(Superseded to 05901639)

$1.49

$

In Stock, Qty 9

0

11

Gravely 05973300

BLT-HEX M8-1.25 X 20 YWZC
(Superseded to 05901628)

$

$

Not available

12

Gravely 06308600

WSHR-LK .31 X .078 REG YWZC
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 06437300

WSHR-FL-STL .281 X .62 X .065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 06500012

NUT-LK-NYL-FLG .25-20 YWZC
(Superseded to 06500813)

$1.49

$

In Stock, Qty 15

0

15

Gravely 07001712

CLIP, 7 .38-50

$

$

Not available

16

Gravely 03375900

HOSE, .188 LOW=PERM BULK GAS (33")

Note: (33")

$0.99

$

Usually ships in 4-12 days

0

17

Gravely 04364753

WLDMT, FRAME PROSTANCE

$1022.99

$

Usually ships in 4-12 days

0

18

Gravely 03820400

KNOB, 3/8 X 1.25 - 4 PRONG

$10.99

$

Usually ships in 4-12 days

0

19

Gravely 04416353

SHIELD, DECK

$120.99

$

Usually ships in 4-12 days

0

20

Gravely 04499753

GUARD, FAN

$32.99

$

Usually ships in 4-12 days

0

21

Gravely 07053300

NUT, RTNR .375-16 X .37

$3.99

$

In Stock, only 4 left!

0

22

Gravely 07503100

BUMPER GROMMET .125 X .25 REV

$3.49

$

In Stock, only 3 left!

0

23

Gravely 07400034

SCR TAP .25-20 X .50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

24

Gravely 03278100

HOSE, .25 LOW-PERM BULK GAS (10") (994117,118)

Note: (10") (994117,118)

$1.49

$

In Stock, Qty 20+

0

25

Gravely 03278800

CLAMP, FUEL LINE (994117,118)

Note: (994117,118)

$1.49

$

In Stock, Qty 20+

0

26

Gravely 06917900

CLAMP, INSULATED STEEL

$14.99

$

Usually ships in 4-12 days

0

27

Gravely 04097000

FITTING, 90 VACUUM 3/16-1/4

$14.99

$

Usually ships in 4-12 days

0
