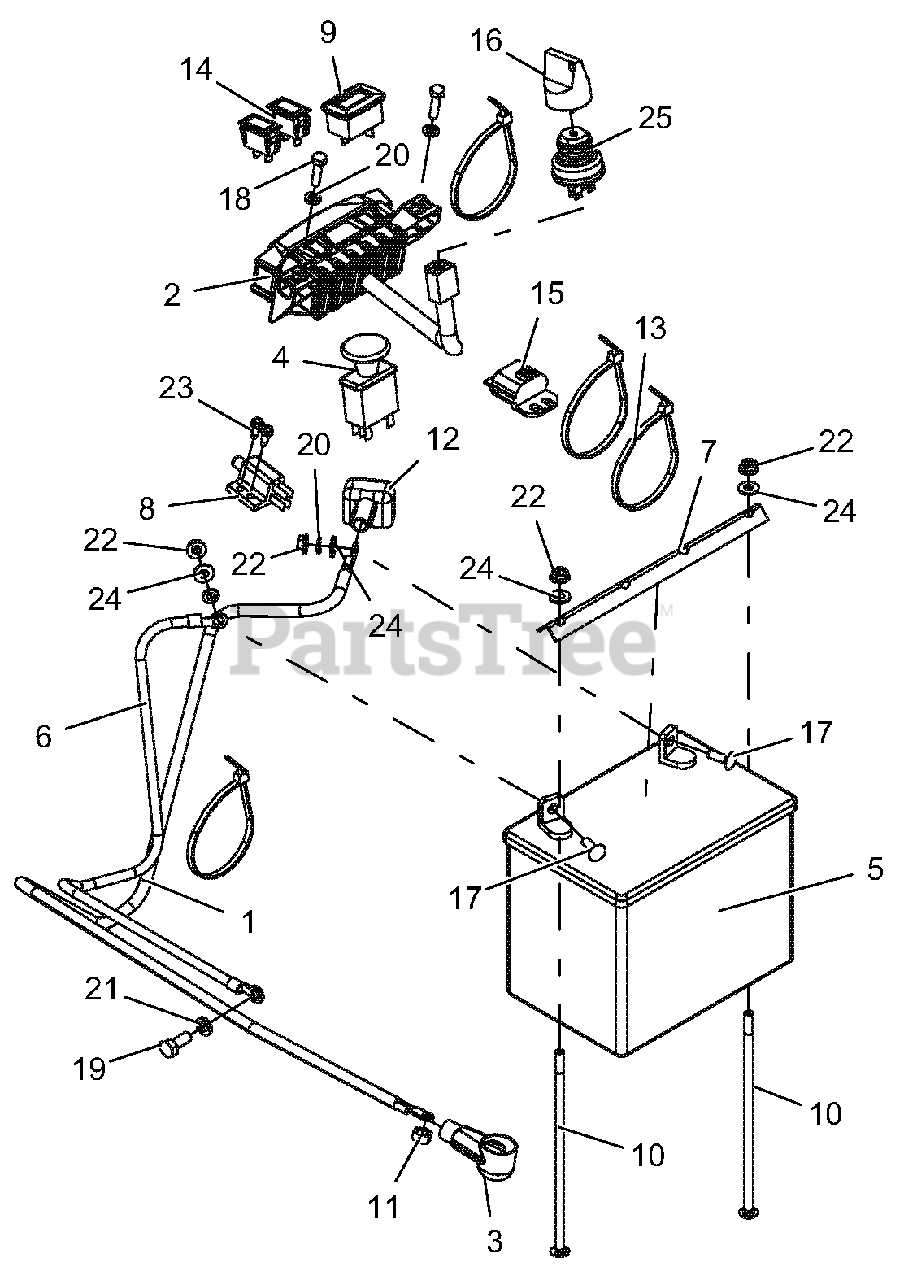

994113 - Gravely Pro-Stance 52" Stand-On Mower, Kohler EFI (SN: 030000 & Above) Wiring - Electrical Components And Battery 2 Parts Diagram

Pro-Stance 52" Stand-On Mower, Kohler EFI

Wiring - Electrical Components And Battery 2 Parts Diagram

  • Title
1

Gravely 03821000

CABLE, BATTERY - 42" POSITIVE

$

$

Not available

2

Gravely 04693400

HARNESS, WIRE - HARNESS

$306.99

$

Usually ships in 4-12 days

0

3

Gravely 00525800

BOOT, BATTERY TERMINAL - RED

$7.99

$

Usually ships in 4-12 days

0

4

Gravely 01545600

SWITCH, CLUTCH

$25.99

$

In Stock, Qty 20+

0

5

$

$

Not available

6

Gravely 03288200

CABLE, NEGATIVE BATTERY 35.00"

$22.99

$

Usually ships in 4-12 days

0

7

Gravely 03494051

HOLD DOWN - BLK

$11.99

$

In Stock, only 2 left!

0

8

Gravely 03606600

SWITCH- DOUBLE POLE N.O./N.O.

$17.99

$

In Stock, only 1 left!

0

9

Gravely 03966800

METER, HOUR W/MAINTENANCE
(Superseded to 09497400)

$23.99

$

In Stock, only 2 left!

0

10

Gravely 06226400

BLT-RDHDSQNK .250-20 x 7.50 GR2 YZ
(Superseded to 06200424)

$4.99

$

In Stock, Qty 20+

0

11

Gravely 06500018

NUT-LK-TOP M8-1.25 YWZC
(Superseded to 06500919)

$2.49

$

In Stock, Qty 18

0

12

Gravely 07505700

INSULATOR

$9.49

$

Usually ships in 4-12 days

0

13

Gravely 07517300

CABLE, TIE 5.50 LG

$

$

Not available

14

Gravely 08841200

LIGHT, INDICATOR
(Superseded to 05128700)

$6.99

$

In Stock, only 1 left!

0

15

Gravely 09044200

MODULE, INTERLOCK

$71.99

$

In Stock, only 1 left!

0

16

Gravely 09287000

KEY, W/ COVER

$14.99

$

In Stock, Qty 20+

0

17

Gravely 06219900

BLT-RDHDSQNK .25-20 x .75 G5 YWZC
(Superseded to 06200307)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 05972000

@BLT-HEX M6-1.0 x 25 YWZC

$

$

Not available

19

Gravely 05973300

@BLT-HEX M8-1.25 x 20 YWZC
(Superseded to 05901628)

$

$

Not available

20

Gravely 06308400

WSHR-LK .25 x .062 REG YWZC
(Superseded to 06401009)

$0.99

$

In Stock, Qty 20+

0

21

Gravely 06308600

WSHR-LK .31 x .078 REG YWZC
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

22

Gravely 06530100

@NUT-SPNLK-FLG .25-20 YWZC
(Superseded to 06500824)

$0.99

$

In Stock, Qty 20+

0

23

Gravely 07415800

SCR-TAP 10-24 x .50 HWH TR YWZC
(Superseded to 07400130)

$2.49

$

In Stock, Qty 5

0

24

Gravely 06437300

WSHR-FL-STL .281 x .62 x .065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

25

Gravely 04331600

SWITCH, IGNITION

$45.99

$

In Stock, Qty 20+

0
