994113 - Gravely Pro-Stance 52" Stand-On Mower, Kohler EFI (SN: 030000 & Above) Operator Platform Parts Diagram

Pro-Stance 52" Stand-On Mower, Kohler EFI

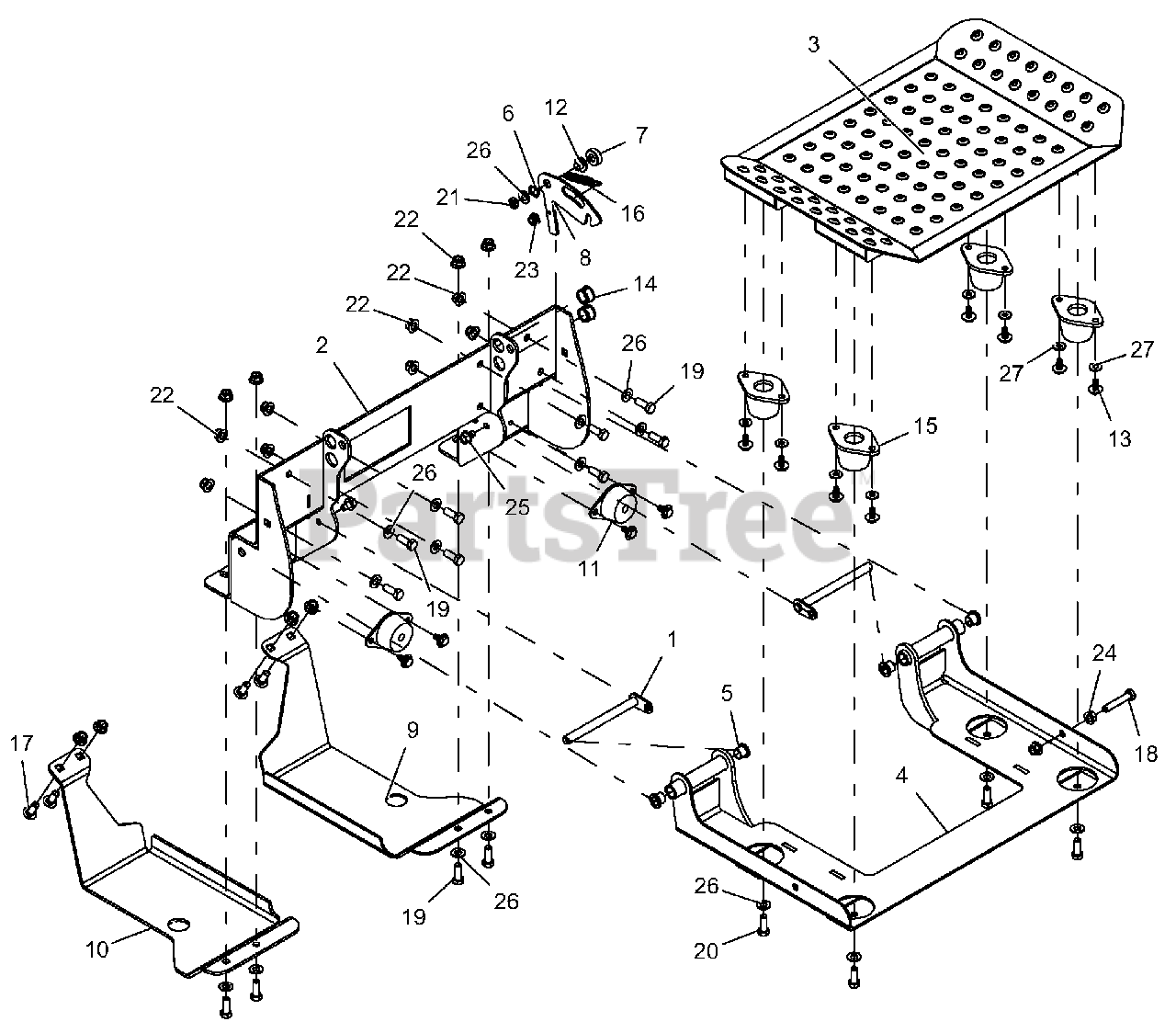

Operator Platform Parts Diagram

  • Title

1

Gravely 00203893

WLDMT, PIN & LOCK

$34.99

$

Usually ships in 4-12 days

0

2

Gravely 04539553

WLDMT, PLATFORM SUPPORT - RED

$249.99

$

Usually ships in 4-12 days

0

3

Gravely 04547453

WLDMT, PLATFORM TOP - RED

$

$

Not available

4

Gravely 04553053

WLDMT, PLATFORM CARRIER - RED

$258.99

$

Usually ships in 4-12 days

0

5

Gravely 00200116

BRG, FLG .500 x .620 x .500 BRNZ

$5.99

$

Usually ships in 4-12 days

0

6

Gravely 00325400

WAVE WASHER .531 x .781 x .125 FH

$0.99

$

In Stock, Qty 20+

0

7

Gravely 04448100

SPCR, .375 x 1.00 x .342

$22.99

$

In Stock, only 3 left!

0

8

Gravely 04529853

LATCH, PLATFORM SIDE

$15.99

$

Usually ships in 4-12 days

0

9

Gravely 04542951

PLATE, TRANS SKID, RH

$

$

Not available

10

Gravely 04543051

PLATE, LH SKID (BLACK)

Note: (BLACK)

$46.99

$

Usually ships in 4-12 days

0

11

Gravely 05034800

MOUNT, ENGINE. VIBRATION ISO

$22.99

$

Usually ships in 4-12 days

0

12

Gravely 05500435

BSHG, FLG .385 x .500 x .875 x .406

$2.49

$

In Stock, Qty 20+

0

13

Gravely 05901329

BOLT, 5/16-18 x .625 SLF TAP FLG

$3.99

$

Usually ships in 4-12 days

0

14

Gravely 07500126

BUSH, PANEL SNAP .687 x .875 x .56

$3.99

$

In Stock, only 2 left!

0

15

Gravely 07500213

MOUNT, ISOLATOR

$45.99

$

In Stock, only 3 left!

0

16

Gravely 08300527

SPRG, EXTENSION

$3.49

$

In Stock, Qty 12

0

17

Gravely 06223600

BLT-RDHDSQNK .38-16 x 1.00 G5 YWZC
(Superseded to 06200313)

$2.49

$

In Stock, Qty 10

0

18

Gravely 05963300

BLT-HEX .38-16 x 2.00 GR5 YWZC
(Superseded to 05901718)

$2.99

$

In Stock, only 1 left!

0

19

Gravely 05948700

BLT-HEX .38-16 x 1.00 GR5 YWZC
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 05900013

BLT-HEX .38-16 x 1.00 GR5 YWZC EP30
(Superseded to 05901721)

$1.99

$

In Stock, Qty 20+

0

21

Gravely 06537200

@NUT-LK-CTR-JAM .375-16 YWZC
(Superseded to 06500914)

$0.99

$

In Stock, Qty 20+

0

22

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

23

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

24

Gravely 06534900

@NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$1.49

$

In Stock, Qty 20+

0

25

Gravely 07412900

SCR-TAP .38-16 x .50 HWH TR YWZ
(Superseded to 07400126)

$1.49

$

In Stock, Qty 20+

0

26

Gravely 06436200

WSHR-FL-STL .406 x .812 x .065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

27

Gravely 06435800

WSHR-FL-STL .312 x .734 x .065 YWZ
(Superseded to 06401124)

$0.99

$

In Stock, Qty 20+

0
