994113 - Gravely Pro-Stance 52" Stand-On Mower, Kohler EFI (SN: 030000 & Above) Drive Belt And Clutch Parts Diagram

Pro-Stance 52" Stand-On Mower, Kohler EFI

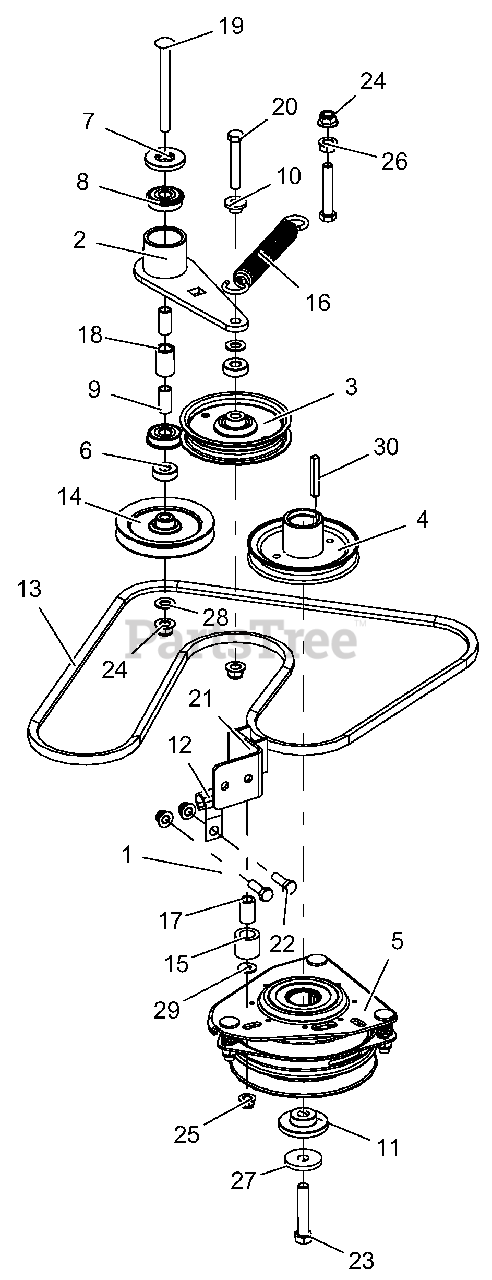

Drive Belt And Clutch Parts Diagram

  • Title

1

Gravely 04417151

WLDMT, CLUTCH STOP

$81.99

$

Usually ships in 4-12 days

0

2

Gravely 04720551

WLDMT, IDLER ARM GROUND DRIVE

$

$

Not available

3

Gravely 07312500

IDLER-FLAT 4.00 x .38 NWHAMSHR
(Superseded to 07300101)

$62.99

$

In Stock, Qty 20+

0

4

Gravely 07338367

SHEAVE, ENGINE 4.50 x 1.127 - BLACK

$129.99

$

Usually ships in 4-12 days

0

5

Gravely 03789900

CLUTCH, ELEC OGURA GT1A-AR03

$349.99

$

In Stock, only 3 left!

0

6

Gravely 04448100

SPCR, .375 x 1.00 x .342

$22.99

$

In Stock, only 3 left!

0

7

Gravely 04714600

SPACER, IDLER ARM

$5.99

$

In Stock, Qty 20+

0

8

Gravely 05480000

BRG, BALL .501 x 1.38 x .438 SEALED

$13.99

$

In Stock, Qty 20+

0

9

Gravely 05500106

BSHG, SLV .385 x .500 x 1.045

$1.99

$

In Stock, Qty 20+

0

10

Gravely 05500435

BSHG, FLG .385 x .500 x .875 x .406

$2.49

$

In Stock, Qty 20+

0

11

Gravely 05501206

BSHG, -FLG .469 x 1.06 x .574 x 2.0

$19.99

$

In Stock, only 1 left!

0

12

Gravely 06916000

J-CLAMP

$2.49

$

Usually ships in 4-12 days

0

13

Gravely 07226400

BELT, V- A COGGED

$52.99

$

In Stock, Qty 9

0

14

Gravely 07300528

SHEAVE, IDLER -V .38 x 4.00

$39.99

$

Usually ships in 4-12 days

0

15

Gravely 07500007

BUMPER, RUBBER .62 x 1.0 x .88 LG

$5.99

$

In Stock, only 2 left!

0

16

Gravely 08300507

SPRG, EXTENSION
(Superseded to 08300728)

$26.99

$

In Stock, Qty 20+

0

17

Gravely 08833400

BUSH., S .391 x .622 x .95 ST REV A

$5.99

$

In Stock, only 1 left!

0

18

Gravely 09357700

SPACER, .510 x .750 x 1.148

$4.99

$

In Stock, only 3 left!

0

19

Gravely 06200126

BLT-RHDSSQNK .38-16 x 4.00 G5YZ
(Superseded to 06200239)

$6.99

$

In Stock, only 1 left!

0

20

Gravely 05962900

BLT-HEX .38-16 x 2.25 GR5 YWZC
(Superseded to 05901640)

$3.99

$

In Stock, Qty 20+

0

21

Gravely 05952400

BLT-HEX .31-18 x 1.50 GR5 YWZC
(Superseded to 05901710)

$1.49

$

In Stock, Qty 12

0

22

Gravely 05946900

BLT-HEX .31-18 x 1.00 GR5 YWZC
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

23

Gravely 05901532

BLT-HEX .44-20 x 2.25 GR5 YWZC NYTORQ

$

$

Not available

24

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

25

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

26

Gravely 06534900

@NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$1.49

$

In Stock, Qty 20+

0

27

Gravely 06400936

WSHR, 7/16" SPRING DISC

$11.99

$

In Stock, only 1 left!

0

28

Gravely 06436200

WSHR-FL-STL .406 x .812 x .065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

29

Gravely 06435800

WSHR-FL-STL .312 x .734 x .065 YWZ
(Superseded to 06401124)

$0.99

$

In Stock, Qty 20+

0

30

Gravely 06601800

KEY-STR .25 x 1.75 x .25

$3.99

$

In Stock, only 2 left!

0
