994112 - Gravely Pro-Stance 52" Stand-On Mower, Kawasaki FX (SN: 000001 - 029999) Wiring - Electrical Components And Battery Parts Diagram

Pro-Stance 52" Stand-On Mower, Kawasaki FX

Wiring - Electrical Components And Battery Parts Diagram

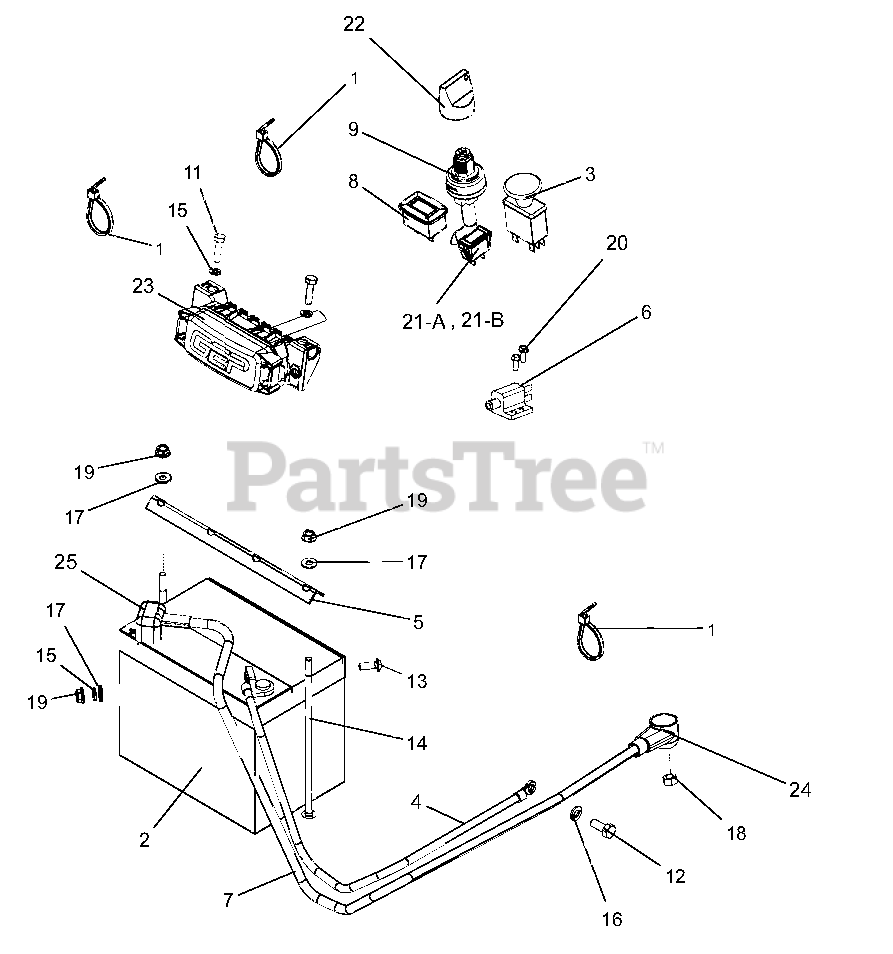

  • Title

Gravely 02745100

SWITCH- SNAP MTG N.O. (Operator Presence - Not Shown)

Note: (Operator Presence - Not Shown)

$

$

Not available

1

Gravely 00111910

CABLE TIE, .15 X 8.50

$

$

Not available

2

Gravely 00191832

BATTERY, 12V-U1-CCA270MIN
(Superseded to 01554800)

$

$

Not available

3

Gravely 01545600

SWITCH, CLUTCH

$25.99

$

In Stock, Qty 20+

0

4

Gravely 03288200

CABLE, NEGATIVE BATTERY 35.00"

$22.99

$

Usually ships in 4-12 days

0

5

Gravely 03494051

HOLD DOWN

$11.99

$

In Stock, only 2 left!

0

6

Gravely 03606600

SWITCH DOUBLE POLE NO/NO

$17.99

$

In Stock, only 1 left!

0

7

Gravely 03821000

CABLE, BATTERY - 42" POSITIVE

$

$

Not available

8

Gravely 03966800

METER, HOUR W/MAINTENANCE
(Superseded to 09497400)

$23.99

$

In Stock, only 2 left!

0

9

Gravely 04331600

SWITCH, IGNITION

$45.99

$

In Stock, Qty 20+

0

10

Gravely 04399700

HARNESS, WIRE HARNESS
(Superseded to 04693400)

$306.99

$

Usually ships in 4-12 days

0

11

Gravely 05972000

BLT HEX M6-1.0 X 25 YWZC

$

$

Not available

12

Gravely 05973300

BLT HEX M8-1.25 X 20 YWZC
(Superseded to 05901628)

$

$

Not available

13

Gravely 06219900

BLT RDHDSQNK .25-20 X .75 G5 YWZC
(Superseded to 06200307)

$0.99

$

In Stock, Qty 13

0

14

Gravely 06226400

BLT RDHDSQNK .250-20 X 7.50 GR2 YZ
(Superseded to 06200424)

$4.99

$

In Stock, Qty 20+

0

15

Gravely 06308400

WSHR LK .25 X .062 REG YWZC
(Superseded to 06401009)

$0.99

$

In Stock, Qty 20+

0

16

Gravely 06308600

WSHR LK .31 X .078 REG YWZC
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

17

Gravely 06437300

WSHR FL STL .281 X .62 X .065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 06500018

NUT LK TOP M8-1.25 YWZC
(Superseded to 06500919)

$2.49

$

In Stock, Qty 18

0

19

Gravely 06530100

NUT SPNLK FLG .25-20 YWZC
(Superseded to 06500824)

$0.99

$

In Stock, Qty 20+

0

20

Gravely 07415800

SCR TAP 10-24 X .50 HWH TR YWZC
(Superseded to 07400130)

$2.49

$

In Stock, Qty 5

0

21A

Gravely 08841200

LIGHT, INDICATOR (994111,112,114)
(Superseded to 05128700)

Note: (994111,112,114)

$6.99

$

In Stock, only 1 left!

0

21B

Gravely 08841200

LIGHT, INDICATOR (994113,115)
(Superseded to 05128700)

Note: (994113,115)

$6.99

$

In Stock, only 1 left!

0

22

Gravely 09287000

KEY, W/COVER

$14.99

$

In Stock, Qty 20+

0

23

Gravely 04504200

BLOCK, FUSE

$28.99

$

Usually ships in 4-12 days

0

24

Gravely 00525800

BATT TERMINAL BOOT, RED

$7.99

$

Usually ships in 4-12 days

0

25

Gravely 07505700

INSULATOR

$9.49

$

Usually ships in 4-12 days

0

26

Gravely 04438100

FUSE, 10 AMP MINI ATC

$4.99

$

Usually ships in 4-12 days

0

27

Gravely 04438200

FUSE, 15 AMP MINI ATC

$4.99

$

Usually ships in 4-12 days

0

28

Gravely 04438300

FUSE, 20 AMP MINI ATC

$

$

Not available

29

Gravely 04438400

RELAY MICRO 5 TERMINAL WITH DIODES

$19.99

$

In Stock, only 1 left!

0

30

Gravely 04520400

HARNESS, KOHLER EFT ADAPTER (994113,115)

Note: (994113,115)

$

$

Not available
