994112 - Gravely Pro-Stance 52" Stand-On Mower, Kawasaki FX (SN: 000001 - 029999) Transmission - Left Hand Parts Diagram

Pro-Stance 52" Stand-On Mower, Kawasaki FX

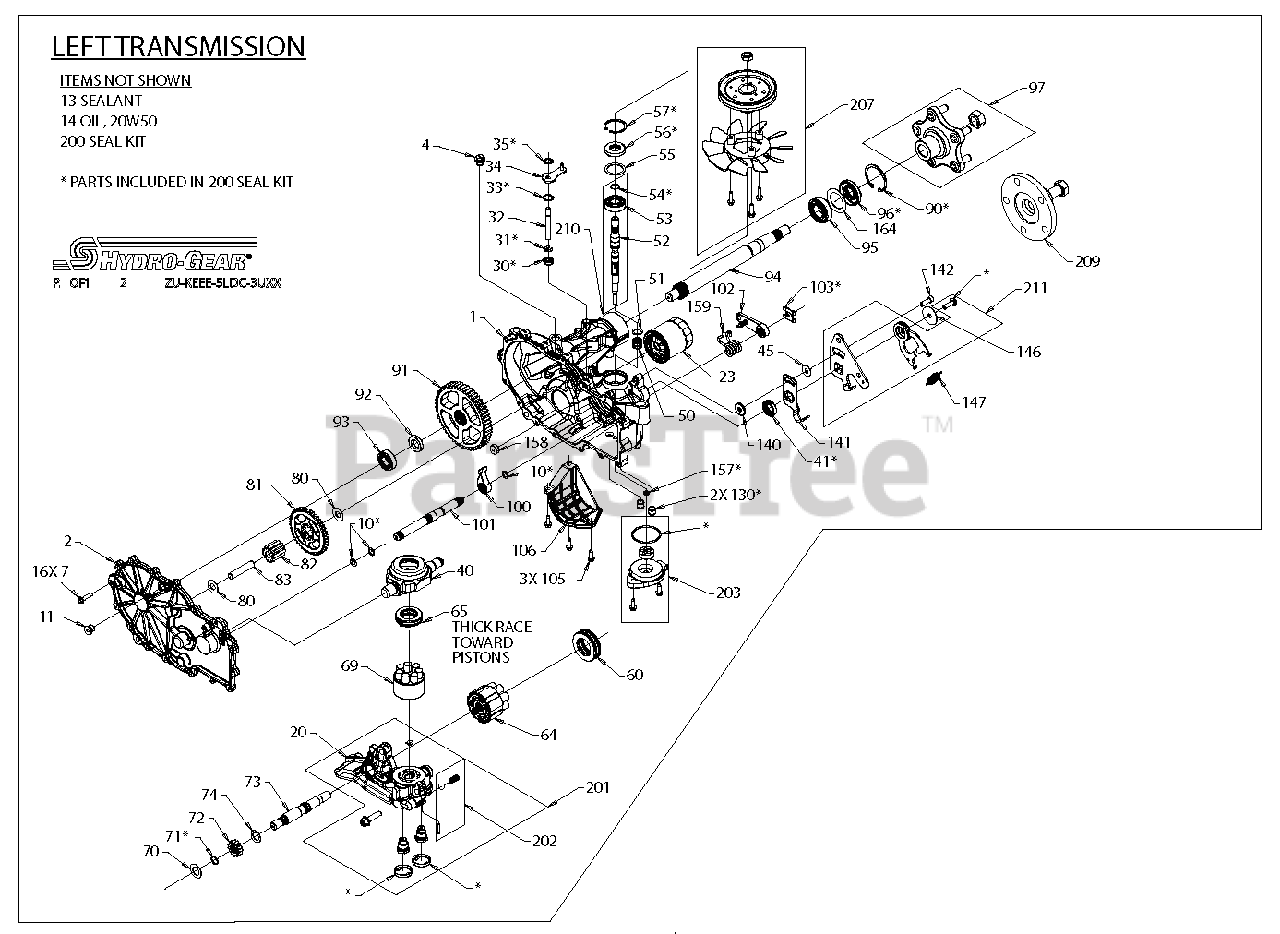

Transmission - Left Hand Parts Diagram

  • Title

1

KIT, HOUSING MAIN LH CHRG CNTL

KIT, HOUSING MAIN LH CHRG CNTL

$

$

Not available

2

KIT HOUSING SIDE LH

KIT HOUSING SIDE LH

$

$

Not available

4

PLUG 9/16-18 (PLASTIC)

PLUG 9/16-18 (PLASTIC)

Note: (PLASTIC)

$

$

Not available

7

HFHCS 1/4-20 X 1.25

HFHCS 1/4-20 X 1.25

$

$

Not available

10

O-RING 111 .103 X .424

O-RING 111 .103 X .424

$

$

Not available

11

PLUG 9/16-18 (METAL)

PLUG 9/16-18 (METAL)

Note: (METAL)

$

$

Not available

13

Gravely 21543771

SEALANT

$116.99

$

In Stock, only 1 left!

0

14

OIL 20W50

OIL 20W50

$

$

Not available

23

Gravely 21545100

FILTER OIL

$

$

Not available

30

Gravely 21543845

SEAL, LIP .375 X .75 X .25

$9.49

$

Usually ships in 4-12 days

0

31

Gravely 08622500

RING, RET .375 EXTERNAL

$4.49

$

In Stock, Qty 15

0

32

ROD, BYPASS

ROD, BYPASS

$

$

Not available

33

RING, RET .750 INTERNAL

RING, RET .750 INTERNAL

$

$

Not available

34

ARM, BYPASS

ARM, BYPASS

$

$

Not available

35

Gravely 21543848

RING, RTNG .375 EXT

$3.99

$

In Stock, only 1 left!

0

40

Gravely 21543783

TRUNNION, SWASHPLATE

$70.99

$

Usually ships in 4-12 days

0

41

Gravely 21543809

SEAL, LIP 18 X 32 X 7

$9.49

$

Usually ships in 4-12 days

0

45

WASHER .34 X .88 X .06

WASHER .34 X .88 X .06

$

$

Not available

50

SPRING, BLOCK

SPRING, BLOCK

$

$

Not available

51

Gravely 08609400

WASHER FLAT .59 X .79 X .04

$1.99

$

In Stock, only 1 left!

0

55

Gravely 21543773

WASHER 1.23 X 1.56 X .04

$5.99

$

In Stock, only 2 left!

0

56

Gravely 21543816

SEAL, LIP 17 X 40 X 7

$14.99

$

Usually ships in 4-12 days

0

57

Gravely 21543741

RING, RET 2.06 INT

$6.99

$

Usually ships in 4-12 days

0

60

BEARING, THRUST

BEARING, THRUST

$

$

Not available

64

ASS'Y, CYLINDER BLOCK, 16cc

ASS'Y, CYLINDER BLOCK, 16cc

$

$

Not available

65

BRG, THRUST BALL 30 X 52 X 13

BRG, THRUST BALL 30 X 52 X 13

$

$

Not available

69

ASS'Y, BLOCK, 7 PISTON

ASS'Y, BLOCK, 7 PISTON

$

$

Not available

70

WASHER .63 X 1.00 X .05

WASHER .63 X 1.00 X .05

$

$

Not available

71

RING, RET .62 EXT

RING, RET .62 EXT

$

$

Not available

72

GEAR, 13T, STEEL

GEAR, 13T, STEEL

$

$

Not available

73

SHAFT, MOTOR

SHAFT, MOTOR

$

$

Not available

74

WASHER .72 X 1.16 X .04

WASHER .72 X 1.16 X .04

$

$

Not available

80

Gravely 21543724

WASHER .5 X 1.0 X .03

$

$

Not available

81

GEAR, 46T

GEAR, 46T

$

$

Not available

82

GEAR, 11T, STEEL

GEAR, 11T, STEEL

$

$

Not available

83

JACK SHAFT (PIN)

JACK SHAFT (PIN)

Note: (PIN)

$

$

Not available

90

RING, RET 2.06 INT

RING, RET 2.06 INT

$

$

Not available

91

GEAR, 54T

GEAR, 54T

$

$

Not available

92

SPACER .75 X 1.32 X .257

SPACER .75 X 1.32 X .257

$

$

Not available

93

BEARING, BALL .75 X 40 X 12

BEARING, BALL .75 X 40 X 12

$

$

Not available

94

SHAFT, AXLE

SHAFT, AXLE

$

$

Not available

95

Gravely 08614000

BRG, BALL 1.0 X .52 X .15 OPEN 6205M

$23.99

$

Usually ships in 4-12 days

0

96

Gravely 08614300

SEAL, LIP TC4 1.0 X 2.06 X .38

$16.99

$

In Stock, only 1 left!

0

97

Gravely 21544023

KIT, HUB, 5 BOLT

$90.99

$

In Stock, only 2 left!

0

100

Gravely 21544001

PAWL, BRAKE

$

$

Not available

101

Gravely 21544001

SHAFT, BRAKE

$

$

Not available

102

KIT HANDLE ACTUATING

KIT HANDLE ACTUATING

$

$

Not available

103

CLIP, RETAINING

CLIP, RETAINING

$

$

Not available

105

SCREW HEX FLANGE 1/4-20 X .625

SCREW HEX FLANGE 1/4-20 X .625

$

$

Not available

106

GUARD, FILTER, LH

GUARD, FILTER, LH

$

$

Not available

130

TUBE, CONNECTING

TUBE, CONNECTING

$

$

Not available

140

SPACER .320 X 1.005 X .179

SPACER .320 X 1.005 X .179

$

$

Not available

141

ARM, NEUTRAL LEFT

ARM, NEUTRAL LEFT

$

$

Not available

142

SHCS 5/16-24 X 1.00 (PATCH)

SHCS 5/16-24 X 1.00 (PATCH)

Note: (PATCH)

$

$

Not available

146

WASHER, .343 X 1.500 X .062

WASHER, .343 X 1.500 X .062

$

$

Not available

147

SPRING, EXTENSION RTN - 34 LBS

SPRING, EXTENSION RTN - 34 LBS

$

$

Not available

157

SEAL, LIP .281 X .420 X .16

SEAL, LIP .281 X .420 X .16

$

$

Not available

158

MAGNET, RING

MAGNET, RING

$

$

Not available

159

SPRING TORISON CW

SPRING TORISON CW

$

$

Not available

164

SPACER 1.719 X 2.039 X .021

SPACER 1.719 X 2.039 X .021

$

$

Not available

200

KIT SEAL

KIT SEAL

$

$

Not available

201

KIT, CENTER SECTION LH CRG

KIT, CENTER SECTION LH CRG

$

$

Not available

202

KIT, CHARGE RELIEF

KIT, CHARGE RELIEF

$

$

Not available

203

KIT, CHARGE PUMP

KIT, CHARGE PUMP

$

$

Not available

207

KIT, FAN & PULLEY

KIT, FAN & PULLEY

$

$

Not available

209

HUB PULLER, 5 BOLT

HUB PULLER, 5 BOLT

$

$

Not available

210

KIT, INPUT SHAFT

KIT, INPUT SHAFT

$

$

Not available

211

KIT, RTN BIDIRECTIONAL

KIT, RTN BIDIRECTIONAL

$

$

Not available
