994112 - Gravely Pro-Stance 52" Stand-On Mower, Kawasaki FX (SN: 000001 - 029999) Tires And Front Axles Parts Diagram

Pro-Stance 52" Stand-On Mower, Kawasaki FX

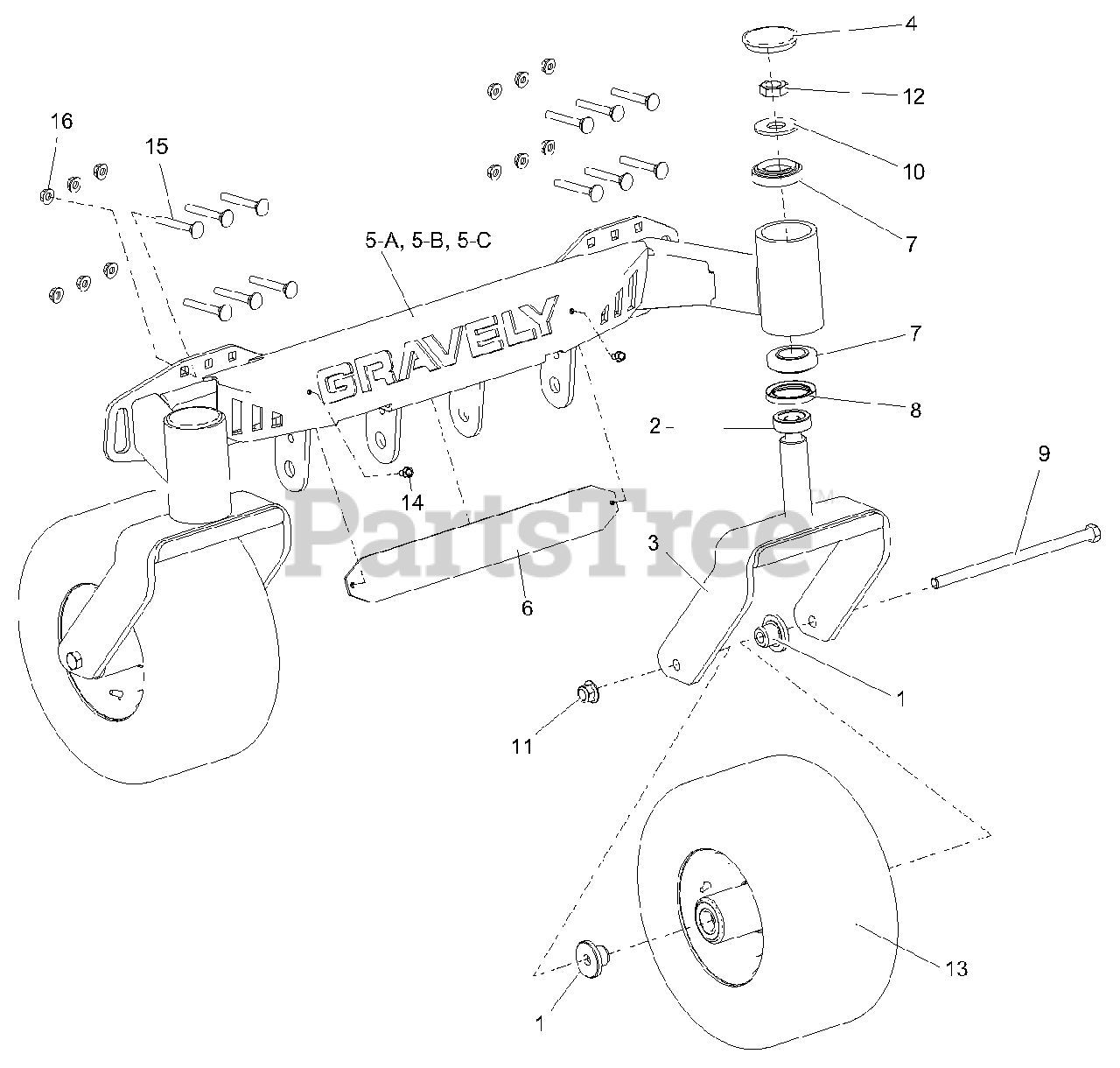

Tires And Front Axles Parts Diagram

  • Title
1

Gravely 00675300

SPACER, FRONT WHEEL

$7.99

$

In Stock, Qty 20+

0

2

Gravely 03760300

SPACER 1.258 ID X 1.750 OD .550

$32.99

$

Usually ships in 4-12 days

0

3

Gravely 03924453

WMT, CASTER FORK

$180.99

$

In Stock, only 2 left!

0

4

Gravely 03925900

CAP, DUST

$11.99

$

In Stock, only 2 left!

0

5A

Gravely 04364853

WLDMT, 48 FRONT AXLE (994111,117)

Note: (994111,117)

$563.99

$

Usually ships in 4-12 days

0

5B

Gravely 04512653

WLDMT, 52 FRONT AXLE (994112,113,118)

Note: (994112,113,118)

$588.99

$

Usually ships in 4-12 days

0

5C

Gravely 04429753

WLDMT, 61 FRONT AXLE (994114,115)
(Superseded to 04787353)

Note: (994114,115)

$766.99

$

Usually ships in 4-12 days

0

6

Gravely 04416951

PLATE, BACK NAME

$

$

Not available

7

Gravely 05404600

BEARING CUP 2.328 X .465

$13.99

$

In Stock, only 2 left!

0

Gravely 05404700

BEARING CONE 1.25 X .66

$20.99

$

In Stock, Qty 20+

0

8

Gravely 05600432

SEAL, OIL 1.75 X 2.332 X .312

$11.99

$

In Stock, Qty 13

0

9

Gravely 05961200

BLT HEX .50-13 X 9.00 GR5 YWZC
(Superseded to 05901930)

$10.99

$

In Stock, Qty 20+

0

10

Gravely 06439800

WSHR-FL-STL .812 X 2.00 X .148 YWZC
(Superseded to 06401201)

$3.99

$

In Stock, only 3 left!

0

11

Gravely 06500010

NUT LK NYL FLG .50-13 YWZC
(Superseded to 06500810)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 06536900

NUT JAM CENTER LOCK .75-16

$5.99

$

In Stock, only 3 left!

0

13

Gravely 07100932

TIRE/WHEEL, ASM 13 X 6.50
(Superseded to 59401200)

$216.99

$

In Stock, only 1 left!

0

14

Gravely 07400034

SCR-TAP .25-20 X .50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 06224100

BLT RDHDSQNK .38-16 X 1.25 G5YZ
(Superseded to 06200415)

$2.49

$

In Stock, only 3 left!

0

16

Gravely 07400034

NUT LK TOP FLG .38-16 YWZC
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0
