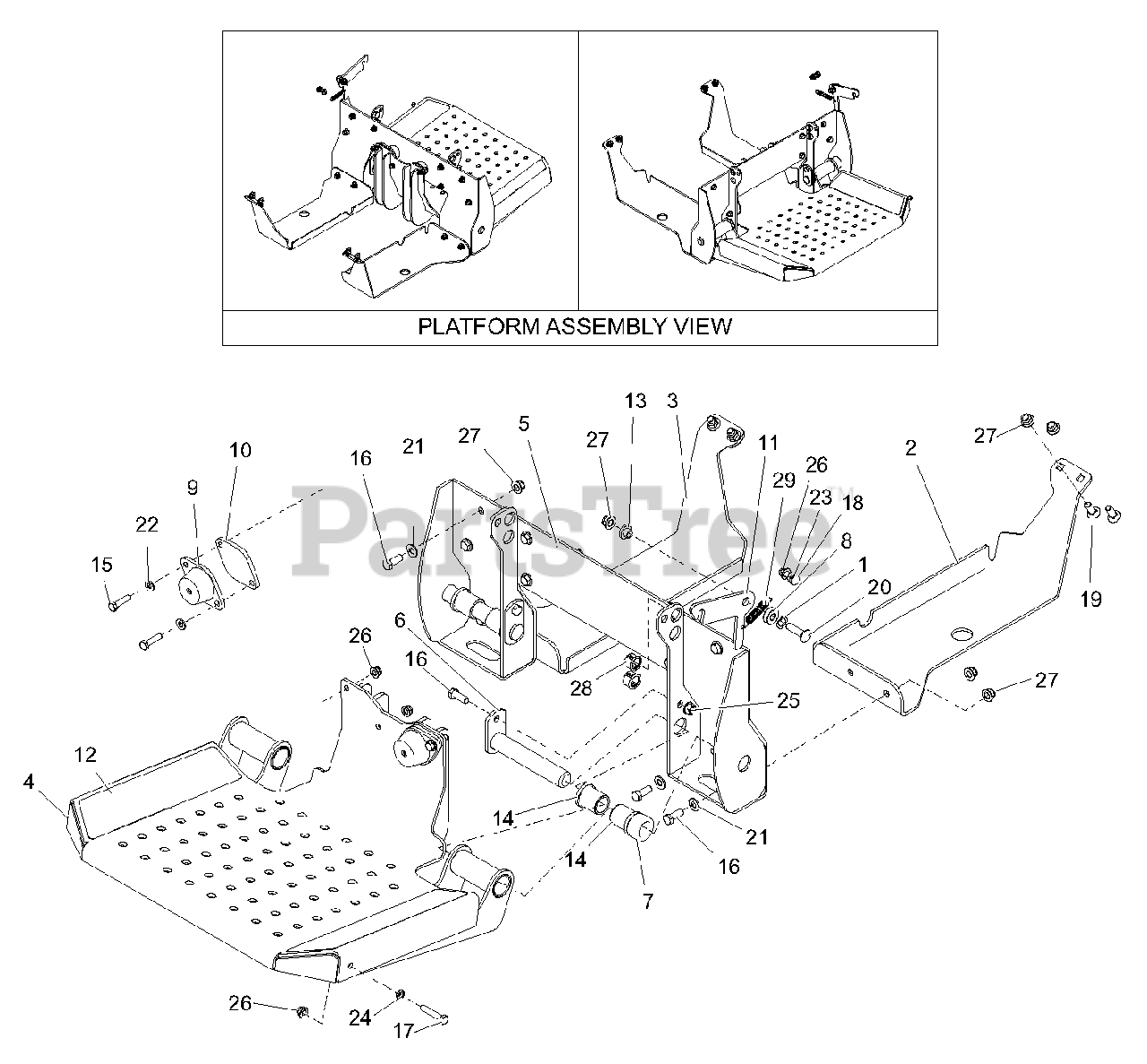

994112 - Gravely Pro-Stance 52" Stand-On Mower, Kawasaki FX (SN: 000001 - 029999) Operator Platform (SN 000101-019999) Parts Diagram

Pro-Stance 52" Stand-On Mower, Kawasaki FX

Operator Platform (SN 000101-019999) Parts Diagram

  • Title

1

Gravely 00325400

WAVE WASHER .531 X .781 X .125 FH

$0.99

$

In Stock, Qty 20+

0

2

Gravely 04356251

PLATE, TRANS SKID RH

$100.99

$

Usually ships in 4-12 days

0

3

Gravely 04356351

PLATE TRANS SKID LH

$

$

Not available

4

Gravely 04373753

WLDMT OPERATOR PLATFORM

$

$

Not available

5

Gravely 04398753

WLDMT BRKT PLATFORM MOUNTING

$

$

Not available

6

Gravely 04398900

WLDMT PIN PLATFORM MTG

$

$

Not available

7

Gravely 04446100

SPCR, 1.00 X 1.5 X 0.75

$

$

Not available

8

Gravely 04448100

SPCR, .375 X 1.00 X .342

$22.99

$

In Stock, only 3 left!

0

9

Gravely 04448400

MOUNT VIBRATION ISO

$47.99

$

Usually ships in 4-12 days

0

10

Gravely 04448853

PLATE SPR ISOLATOR PLATFORM

$

$

Not available

11

Gravely 04451553

PLATE LATCH PLATFORM PROSTAN

$

$

Not available

12

Gravely 04456900

GRIP, ADHESIVE PRO-STANCE

$

$

Not available

13

Gravely 05500435

BSHG-FLG .385 X .500 X .875 X .406 REV

$2.49

$

In Stock, Qty 20+

0

14

Gravely 05500934

BSHG FLG 1.00 X 1.25 X 1.5 X 1.5

$6.99

$

In Stock, Qty 20+

0

15

Gravely 05947500

BLT HEX .31-18 X 1.25 GR5 YWZC
(Superseded to 05901803)

$2.49

$

In Stock, Qty 11

0

16

Gravely 05948700

BLT HEX .38-16 X 1.00 GR5 YWZC
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 05957400

BLT HEX .31-18 X 1.75 GR5 YWZC
(Superseded to 05901804)

$2.99

$

In Stock, Qty 8

0

18

Gravely 06219200

BLT RDHDSQNK .31-18 X .25 G5 Y
(Superseded to 06200407)

$3.99

$

Usually ships in 4-12 days

0

19

Gravely 06223600

BLT RDHDSQNK .38-16 X 1.00 G5 YWZC
(Superseded to 06200313)

$2.49

$

In Stock, Qty 10

0

20

Gravely 06224200

BLT RDHDSQNK .38-16 X 1.50 G5 Y
(Superseded to 06200416)

$3.99

$

In Stock, only 2 left!

0

21

Gravely 06436200

WSHR FL STL .406 X .812 X .065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

22

Gravely 06437200

WSHR FL STL .344 X .688 X .065 YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

23

Gravely 06530400

NUT SPNLK FLG .312-18 YWZC
(Superseded to 06500815)

$1.49

$

In Stock, Qty 20+

0

24

Gravely 06536100

NUT 5/16-18 JAM GR5
(Superseded to 06500909)

$0.99

$

In Stock, Qty 20+

0

25

Gravely 06542000

NUT LK TOP FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

26

Gravely 06545400

NUT LK NYL FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

27

Gravely 06545500

NUT LK NYL FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

28

Gravely 07500126

BUSH, PANEL SNAP .687 X .875 X .56

$3.99

$

In Stock, only 2 left!

0

29

Gravely 08300527

SPRG, EXTENSION

$3.49

$

In Stock, only 4 left!

0
