994112 - Gravely Pro-Stance 52" Stand-On Mower, Kawasaki FX (SN: 000001 - 029999) Drive Belt And Clutch Parts Diagram

Pro-Stance 52" Stand-On Mower, Kawasaki FX

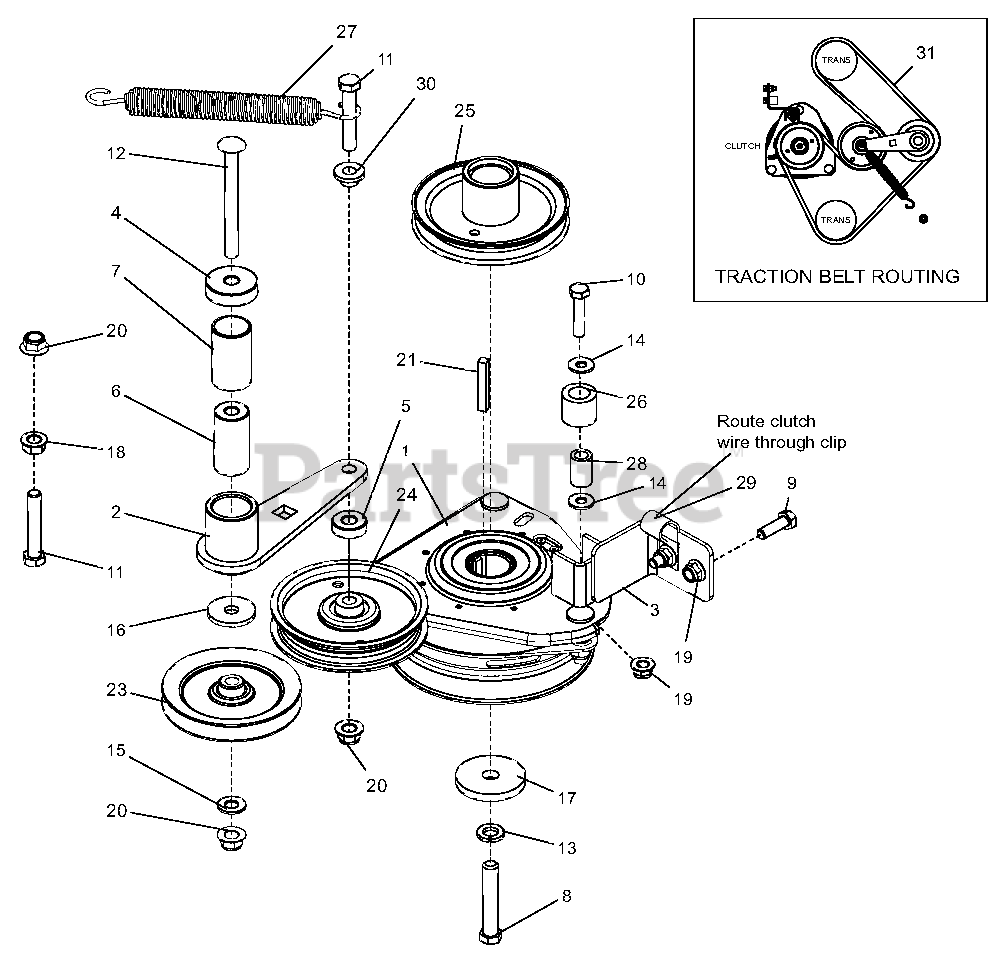

Drive Belt And Clutch Parts Diagram

  • Title

1

Gravely 03789900

CLUTCH, ELEC OGURA GT1A-AR01

$349.99

$

In Stock, only 3 left!

0

2

Gravely 044165451

WLDMT, IDLER ARM GROUND DRIVE

$

$

Not available

3

Gravely 04417151

WLDMT, CLUTCH STOP

$81.99

$

Usually ships in 4-12 days

0

4

Gravely 04446000

SPCR, .406 X 1.5 X .434

$26.99

$

Usually ships in 4-12 days

0

5

Gravely 04448100

SPCR, .375 X 1.00 X .342

$22.99

$

In Stock, only 3 left!

0

6

Gravely 04448200

SPCR, .375 X .996" X 2.04"

$

$

Not available

7

Gravely 05500123

BSHG, 1.00 X 1.125 X 1.937
(Superseded to 05501234)

$10.99

$

In Stock, Qty 20+

0

8

Gravely 05900036

BLT-HEX .44-20 X 2.50 G5 YZ EP80

$13.99

$

In Stock, only 1 left!

0

9

Gravely 05946900

BLT-HEX .31-18 X 1.00 GR5 YWZC
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 05952400

BLT-HEX .31-18 X 1.50 GR5 YWZC
(Superseded to 05901710)

$1.49

$

In Stock, Qty 13

0

11

Gravely 05962900

BLT-HEX .38-16 X 2.25 GR5 YWZC
(Superseded to 05901640)

$3.99

$

In Stock, Qty 20+

0

12

Gravely 06200126

BLT-RHDSSQNK .38-16 X 4.00 G5YZ
(Superseded to 06200239)

$6.99

$

In Stock, only 1 left!

0

13

Gravely 06309300

WSHR-LK .44 X .109 REG YWZC
(Superseded to 06300121)

$2.99

$

In Stock, Qty 11

0

14

Gravely 06435800

WSHR-FL-STL .312 X .734 X .065 YWZ
(Superseded to 06401124)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 06436200

WSHR-FL-STL .406 X .812 X .065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

16

Gravely 06442400

WSHR-FL-STL .406 1.375 X .135 YZ
(Superseded to 06401121)

$5.99

$

In Stock, only 1 left!

0

17

Gravely 06443600

WSHR-FL-STL .469 X 2.00 X .25 YWZC
(Superseded to 06401111)

$6.99

$

In Stock, only 3 left!

0

18

Gravely 06534900

NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

21

Gravely 06601800

KEY STR .25 X 1.75 X .25

$3.99

$

In Stock, only 2 left!

0

23

Gravely 07300528

SHEAVE, IDLER-V .38 X 4.00

$39.99

$

In Stock, only 2 left!

0

24

Gravely 07312500

IDLER-FLAT 4.00 X .38 NWHAMSHR
(Superseded to 07300101)

$62.99

$

In Stock, Qty 20+

0

25

Gravely 07338367

SHEAVE, ENGINE 4.50 X 1.127

$129.99

$

Usually ships in 4-12 days

0

26

Gravely 07500007

BUMPER, RUBBER .62 X 1.0 X .88 LG

$5.99

$

In Stock, only 2 left!

0

27

Gravely 08300507

SPRG, EXT. .845 X 6.55
(Superseded to 08300728)

$26.99

$

In Stock, Qty 20+

0

28

Gravely 08833400

BUSH., S.391 X .622 X .95 ST REV A

$5.99

$

In Stock, only 1 left!

0

29

Gravely AH89557

P-CLIP, .500 INSULATED

$5.49

$

In Stock, only 1 left!

0

30

Gravely 05500435

BSHG-FLG .385 X .500 X .875 X .406 REV

$2.49

$

In Stock, Qty 20+

0

31

Gravely 07226400

BELT, V-A COGGED

$52.99

$

In Stock, Qty 10

0
